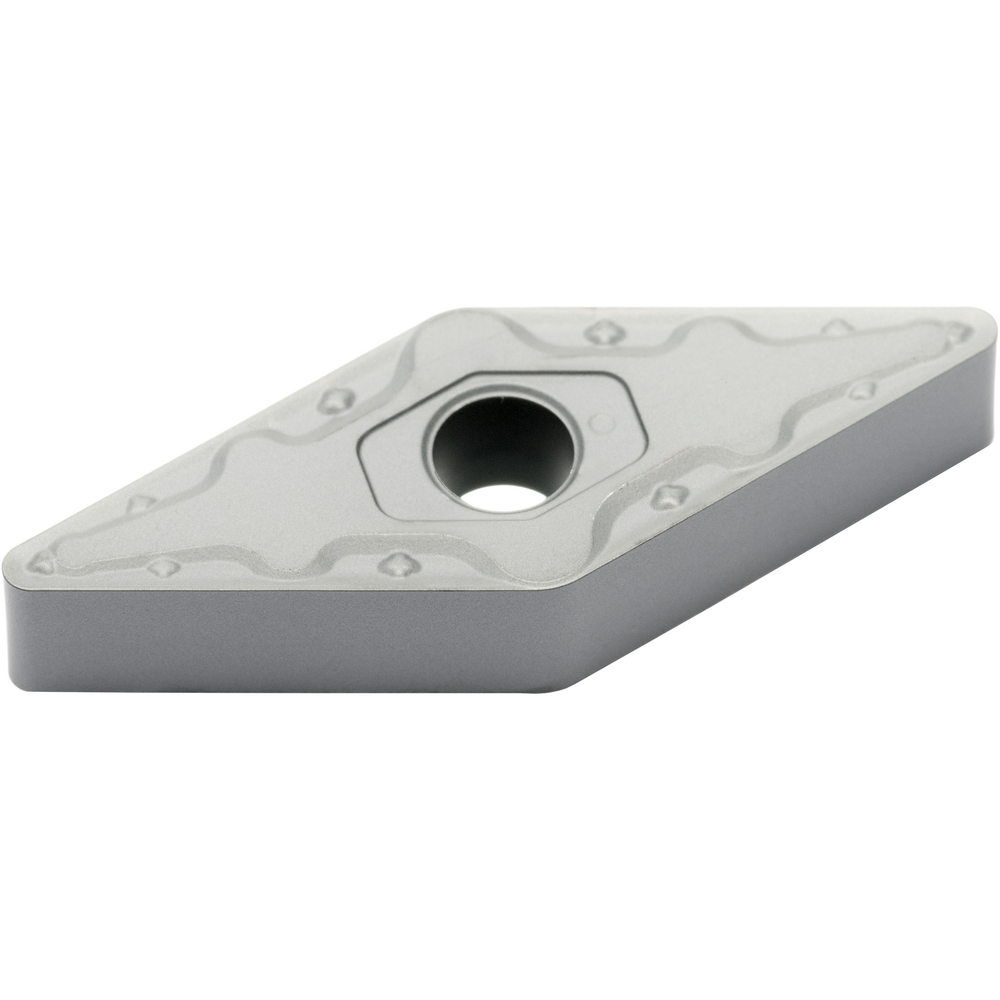

Turning insert VNMG 160404-MP HC7620

Turning insert VNMG 160404-MP HC7620
Turning insert VNMG 160404-MP HC7620 Turning insert VNMG 160404-MP HC7620 Turning insert VNMG 160404-MP HC7620
Price:
17,60 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
VNMG ISO indexable cutting inserts
  • 35° rhombic, negative 0°
  • Unit prices when purchased in packs = 10 units per size and quality

Chip breaker type MP
Article no./ATORN no.
3116513712 / 10870662
Packaging unit
10
Catalogue page

Technical characteristics

Anzahl Stück pro Paket 10 pc.
ap max. 4 mm
ap min. 0,5 mm
Beschichtung CVD
Eckenradius 0,4 mm
Eckenradius Wendeschneidplatte ISO 04
F max. 0,25 mm/rev
F min. 0,16 mm/rev
Freiwinkel 0 °
Freiwinkel Wendeschneidplatte ISO N
Hartmetallsorte ISO P20
Hartmetallsortenbereich ISO P
ISO H 3
ISO K 2
ISO M 3
ISO N 3
ISO P 1
ISO S 3
ISO-Code Drehen VNMG 160404
ISO-Norm VNMG
M medium
Machining type Medium processing - Universal geometry with wide service range
Quality HC7620
Spanbrecherbezeichnung MP
Spitzenwinkel 35 °
Toleranzklasse Wendeschneidplatte ISO M
Vc in Guss max. 290 m/min
Vc in Guss min. 150 m/min
Vc in Stahl max. 350 m/min
Vc in Stahl min. 120 m/min
Wendeschneidplattendicke 4,76 mm
Wendeschneidplattendicke ISO 04
Wendeschneidplattenform ISO V
Wendeschneidplattengröße ISO 16
Wendeschneidplattentyp ISO G
