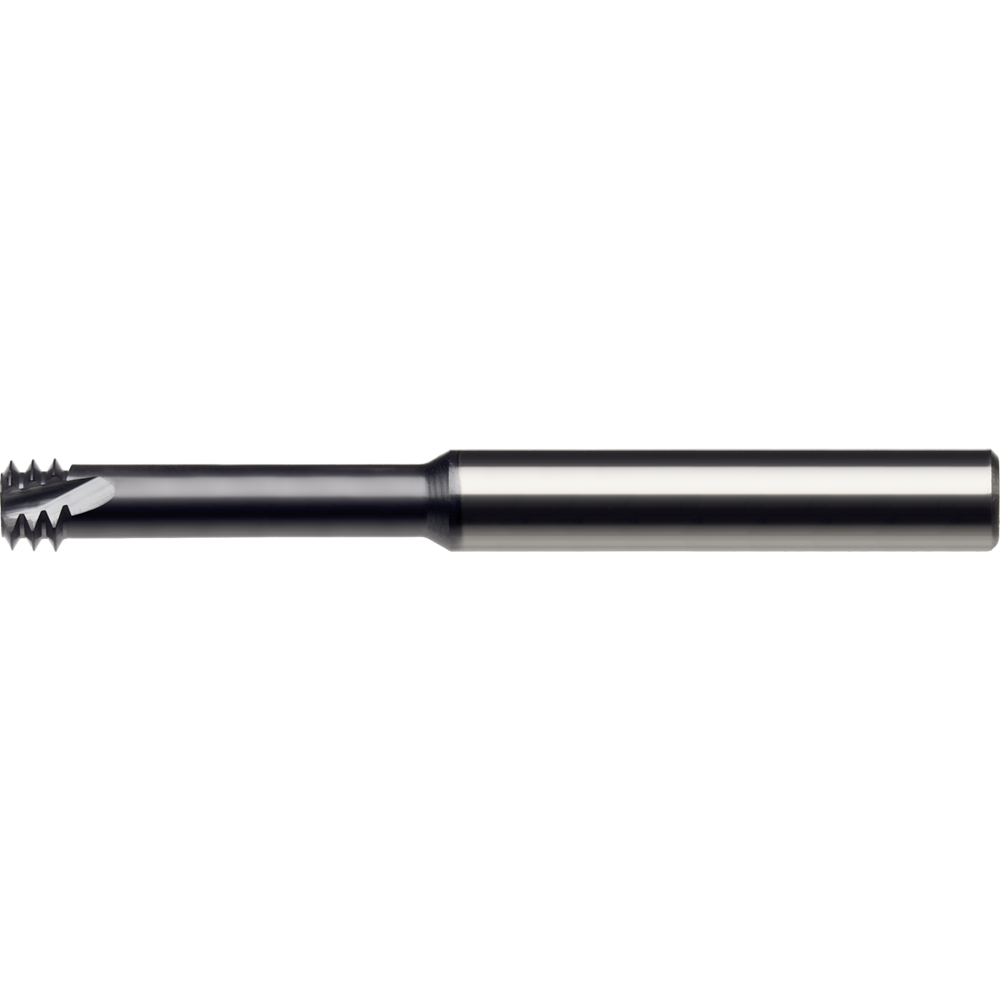

Solid carbide thread mill ISO M2x0,40 MTSH06016C4 AMT9

Solid carbide thread mill ISO M2x0,40 MTSH06016C4 AMT9
Solid carbide thread mill ISO M2x0,40 MTSH06016C4 AMT9 Solid carbide thread mill ISO M2x0,40 MTSH06016C4 AMT9 Solid carbide thread mill ISO M2x0,40 MTSH06016C4 AMT9 Solid carbide thread mill ISO M2x0,40 MTSH06016C4 AMT9
Price:
180,50 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Thread end milling cutter for small bores
  • Especially for small bores, with straight shank
  • Thread cutting from M1 x 0.25 mm, thread depth up to 2 x D1
  • Version for thread depths up to 3 x D1 available on request
  • Suitable for HSC, extremely low cutting pressure, excellent surface finish quality
  • Allows thread cutting in blind bores up to the shoulder
  • Long service life due to special multi-layer coating
  • One tool for right-hand and left-hand threads
  • Cutting material: AMT7 solid carbide, multi-layer TiAlN coating for universal applications
  • MTSH version for hard machining up to 62 HRC available on request!

Code M04, anti-clockwise

Metric, full profile, ISO 60°, internal, for hard machining up to 62 HRC, anticlockwise rotation (code M04)
Article no./ATORN no.
2580110020 / 11940383
Packaging unit
1
Catalogue page
KS-0595
Cutting values
SW-0798

Technical characteristics

Coolant supply External
Cutting material Solid carbide
D 1,53 mm
D1 6 mm
Designation MTSH06016C4 0,4 ISO
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 3
Eignung Titan/Nickel/Super gesamt 3
f Hart 65 HRC 0,01 mm/rev
Feed for side milling fz hardened steel ≥ 60 HRc 0,02 mm/tooth
fitness hartl total 1
fz Stahl 1000 0,01 mm
L 58 mm
L1 4,5 mm
Max. thread depth 2xD
Nutzlänge Gewindefräsen 4,5 mm
Passend für Gewindeart M | M-L
Pitch 0,4 mm
Standard thread M2
Suitable for thread M2-M16
Surface TiAlN
Threaded hole type Clearance/blind hole ≤ 2xD
Tolerance of shank diameter h6
Tool holding device HA parallel shank
Z 3 pc.

Usage characteristics

hardened steel ≤ 55 HRC
hardened steel ≤ 65 HRC

very suitable
suitable
