Articulated meas. stand 3-D for prec. meas. 435mm tall (radius of action 330mm)

5505300435

610,00 €

prices excl. vat plus shipping costs

Stock status

subsequent delivery

External stock

available

Add to shopping cart

Compare

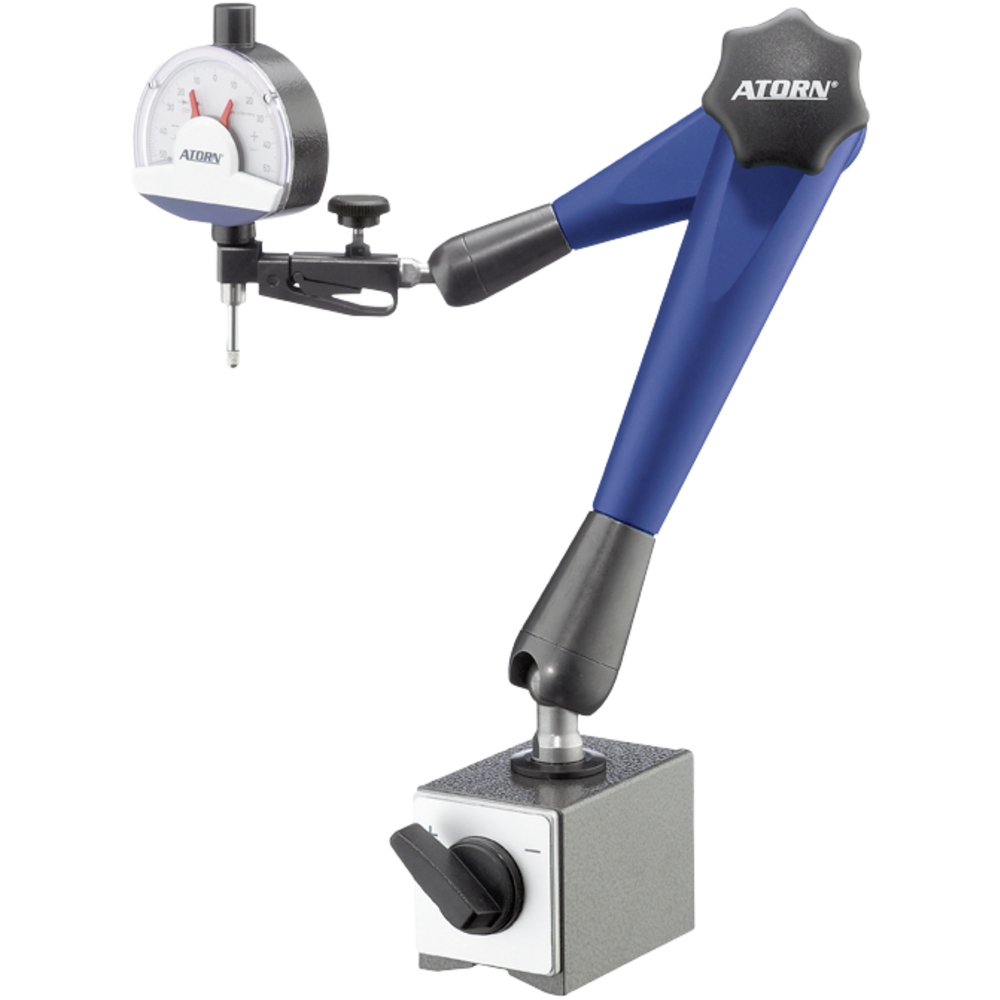

3D articulated measurement stand for indicating callipers

Stand specially designed for precisely positioning indicating callipers
Extremely reinforced articulated arm with maintenance-free mechanical central clamp for maximum stability
µm line fine adjustment allows indicating calliper to be set to a minute degree (1 rotation = 0.1 mm)
Combined holding fixture for measuring instruments, with Ø 8 mm locating bore and dovetail guide
Strong, switchable magnetic base with V-shaped underside, holds firm in any position!
Supplied without indicating calliper

3D articulated measurement stand for indicating callipers

Stand specially designed for precisely positioning indicating callipers
Extremely reinforced articulated arm with maintenance-free mechanical central clamp for maximum stability
µm line fine adjustment allows indicating calliper to be set to a minute degree (1 rotation = 0.1 mm)
Combined holding fixture for measuring instruments, with Ø 8 mm locating bore and dovetail guide
Strong, switchable magnetic base with V-shaped underside, holds firm in any position!
Supplied without indicating calliper

Article no./ATORN no.

5505300435 / 31081400

Packaging unit

Catalogue page

Technical characteristics

Action radius 330 mm

Adherence strength 900N

Foot size 75 x 50 x 55 mm

Fußbreite 50 mm

Fußhöhe 55 mm

Fußlänge 75 mm

Höhe 444 mm

Magnetic foot L x W x H 75 x 50 x 55 mm

Retaining force 900 N

Total height 435 mm
