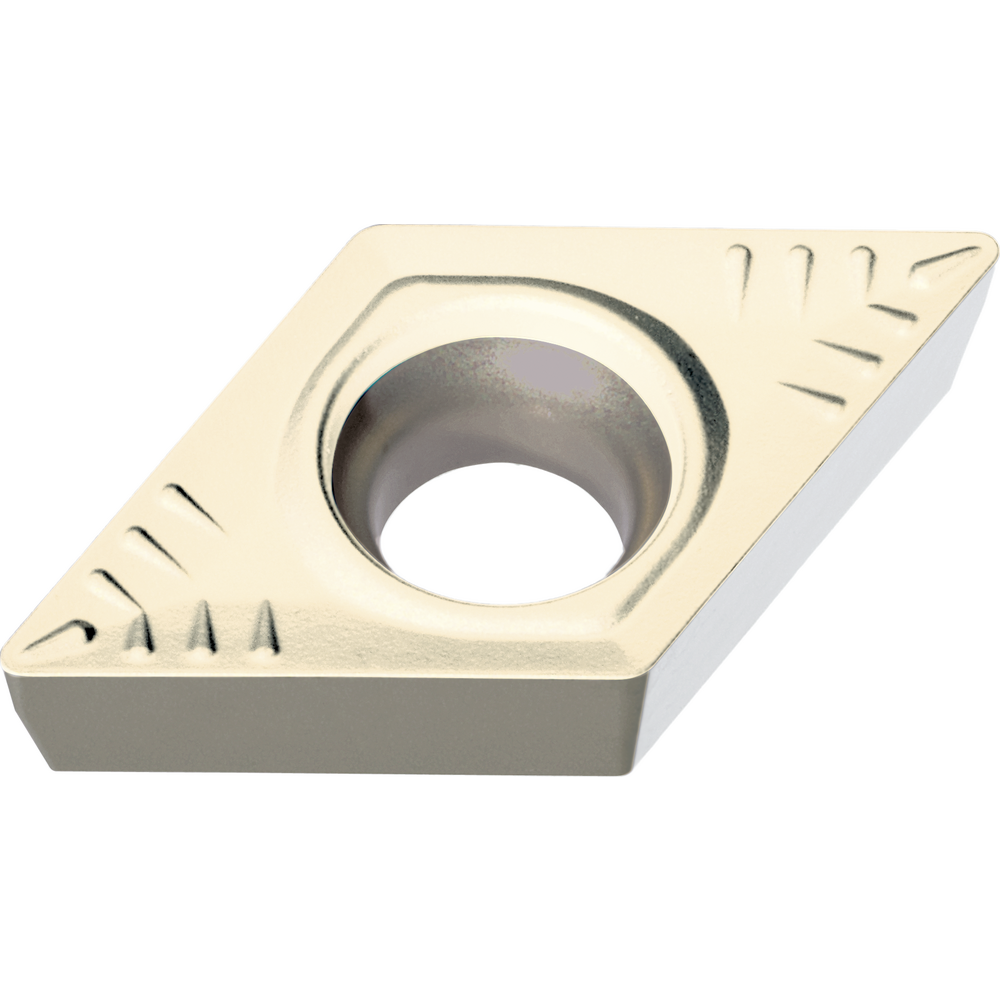

Turning insert DCMT 070208-MS HC7220

Turning insert DCMT 070208-MS HC7220
Turning insert DCMT 070208-MS HC7220 Turning insert DCMT 070208-MS HC7220
Special offer:
7,05 €
(8,95 € catalogue price / 21% saved)
prices excl. vat plus shipping costs

Stock status
Only 330 pieces left!
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

ISO M

ISO indexable cutting inserts DC.. ISO M
  • 55° rhombic, positive 7°

Chip breaker type MS
Article no./ATORN no.
3112030714 / 10870559
Packaging unit
10
Catalogue page
KS-0877

Technical characteristics

Angle of the tip - S 55 °
Anzahl Stück pro Paket 10 pc.
ap max. 2 mm
ap min. 0,6 mm
Coating CVD
Eckenradius 0,8 mm
Eckenradius Wendeschneidplatte ISO 08
F max. 0,25 mm/rev
F min. 0,16 mm/rev
Freiwinkel 7 °
Freiwinkel Wendeschneidplatte ISO C
Hartmetallsorte ISO S20
Hartmetallsortenbereich ISO S
ISO designation DCMT 070208-MS
ISO H 3
ISO K 3
ISO M 2
ISO N 3
ISO P 3
ISO S 1
ISO-Code Drehen DCMT 070208
ISO-Norm DCMT
M medium
Machining type Medium processing - Universal geometry with wide service range
Quality HC7220
Spanbrecherbezeichnung MS
Surface Coated
Toleranzklasse Wendeschneidplatte ISO M
Vc in Edelstahl max. 190 m/min
Vc in Edelstahl min. 120 m/min
Vc in Sonderlegierungen max. 60 m/min
Vc in Sonderlegierungen min. 30 m/min
Wendeschneidplattendicke 2,38 mm
Wendeschneidplattendicke ISO 02
Wendeschneidplattenform ISO D
Wendeschneidplattengröße ISO 07
Wendeschneidplattentyp ISO T
ASSET_MatSafetyDataSheet Download
Catalogue page Download
