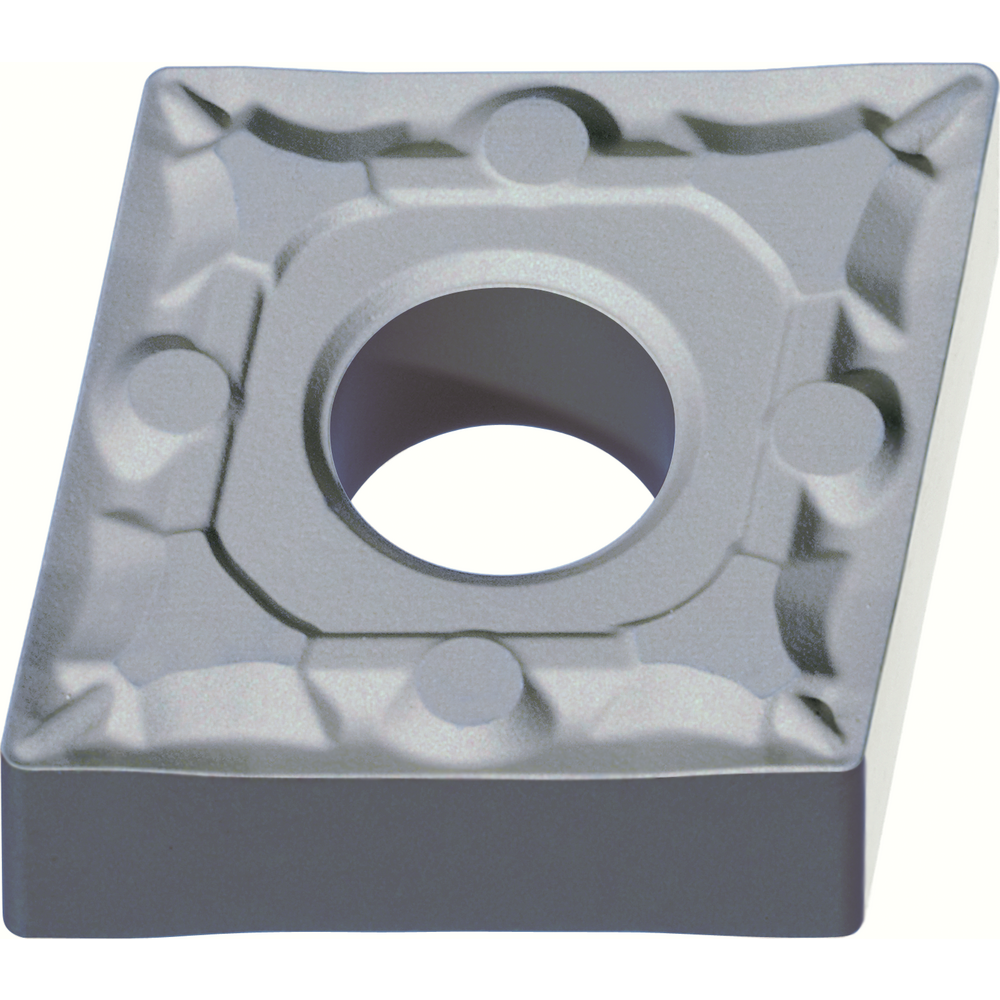

Turning insert CNMG 120404-FP HC7610

Turning insert CNMG 120404-FP HC7610
Turning insert CNMG 120404-FP HC7610 Turning insert CNMG 120404-FP HC7610
Price:
10,10 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
ISO P

ISO indexable cutting inserts CN.. ISO P
  • 80° rhombic, negative 0°

Chip breaker FP negative
Article no./ATORN no.
3111512611 / 10870518
Packaging unit
10
Catalogue page

Technical characteristics

Angle of the tip - S 80 °
Anzahl Stück pro Paket 10 pc.
ap max. 1,5 mm
ap min. 0,1 mm
Coating CVD
Eckenradius 0,4 mm
Eckenradius Wendeschneidplatte ISO 04
F finishing
F max. 0,2 mm/rev
F min. 0,04 mm/rev
Freiwinkel 0 °
Freiwinkel Wendeschneidplatte ISO N
Hartmetallsorte ISO P10
Hartmetallsortenbereich ISO P
ISO designation CNMG 120404-FP
ISO H 3
ISO K 2
ISO M 3
ISO N 3
ISO P 1
ISO S 3
ISO-Code Drehen CNMG 120404
ISO-Norm CNMG
Machining type Smoothing - Positive chip breaker for low cutting depths
Quality HC7610
Spanbrecherbezeichnung FP
Surface Coated
Toleranzklasse Wendeschneidplatte ISO M
Vc in Guss max. 320 m/min
Vc in Guss min. 110 m/min
Vc in Stahl max. 420 m/min
Vc in Stahl min. 110 m/min
Wendeschneidplattendicke 4,76 mm
Wendeschneidplattendicke ISO 04
Wendeschneidplattenform ISO C
Wendeschneidplattengröße ISO 12
Wendeschneidplattentyp ISO G
