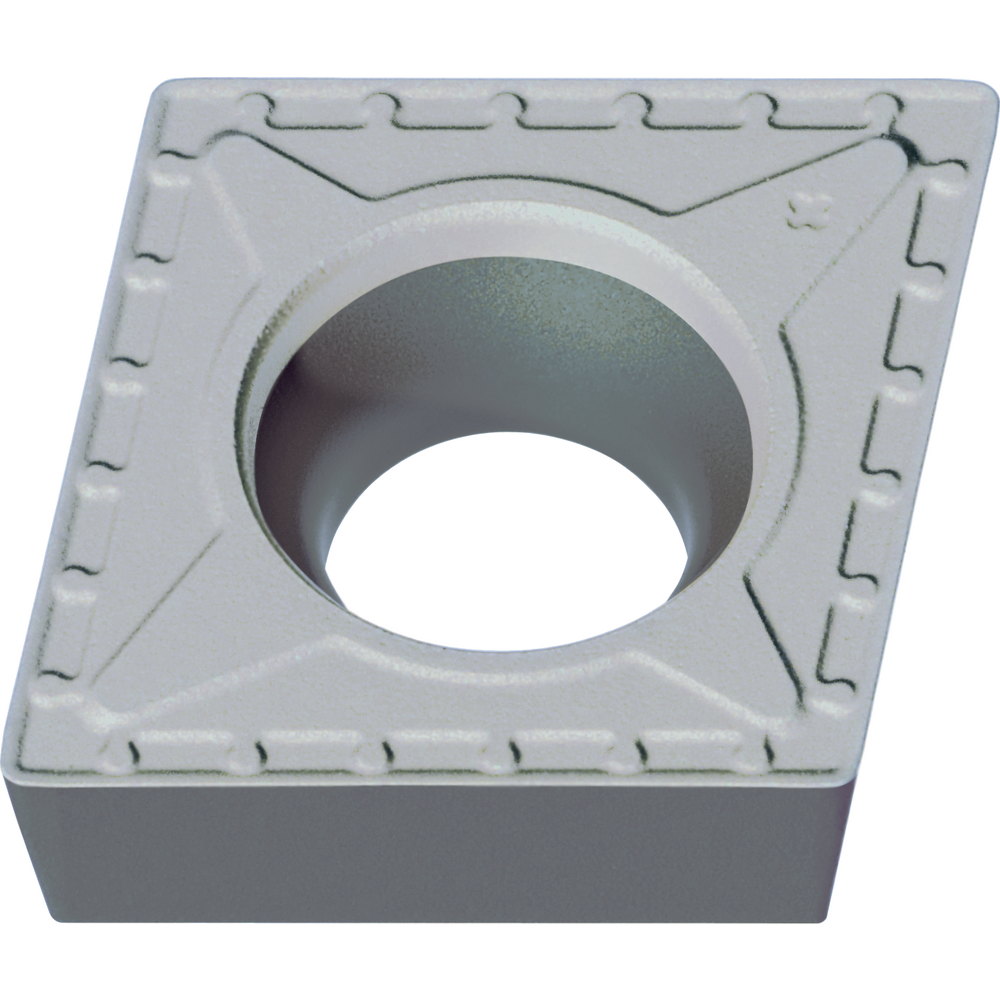

Turning insert CCMT 09T304-WP HC7620

Turning insert CCMT 09T304-WP HC7620
Turning insert CCMT 09T304-WP HC7620 Turning insert CCMT 09T304-WP HC7620 Turning insert CCMT 09T304-WP HC7620
Price:
9,40 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
CCMT ISO indexable cutting inserts
  • 80° rhombic, positive 7°

Wiper!

Wiper type WP
Article no./ATORN no.
3111051212 / 10870495
Packaging unit
10
Catalogue page

Technical characteristics

Anzahl Stück pro Paket 10 pc.
ap max. 4 mm
ap min. 0,5 mm
Beschichtung CVD
Eckenradius 0,4 mm
Eckenradius Wendeschneidplatte ISO 04
F finishing
F max. 0,4 mm/rev
F min. 0,12 mm/rev
Freiwinkel 7 °
Freiwinkel Wendeschneidplatte ISO C
Hartmetallsorte ISO P20
Hartmetallsortenbereich ISO P
ISO H 3
ISO K 2
ISO M 3
ISO N 3
ISO P 1
ISO S 3
ISO-Code Drehen CCMT 09T304
ISO-Norm CCMT
M medium
Machining type Smoothing - Wipergeometry for high surface quality with high feed values
Quality HC7620
Spanbrecherbezeichnung WP
Spitzenwinkel 80 °
Toleranzklasse Wendeschneidplatte ISO M
Vc in Guss max. 260 m/min
Vc in Guss min. 140 m/min
Vc in Stahl max. 320 m/min
Vc in Stahl min. 110 m/min
Wendeschneidplattendicke 3,97 mm
Wendeschneidplattendicke ISO T3
Wendeschneidplattenform ISO C
Wendeschneidplattengröße ISO 09
Wendeschneidplattentyp ISO T
