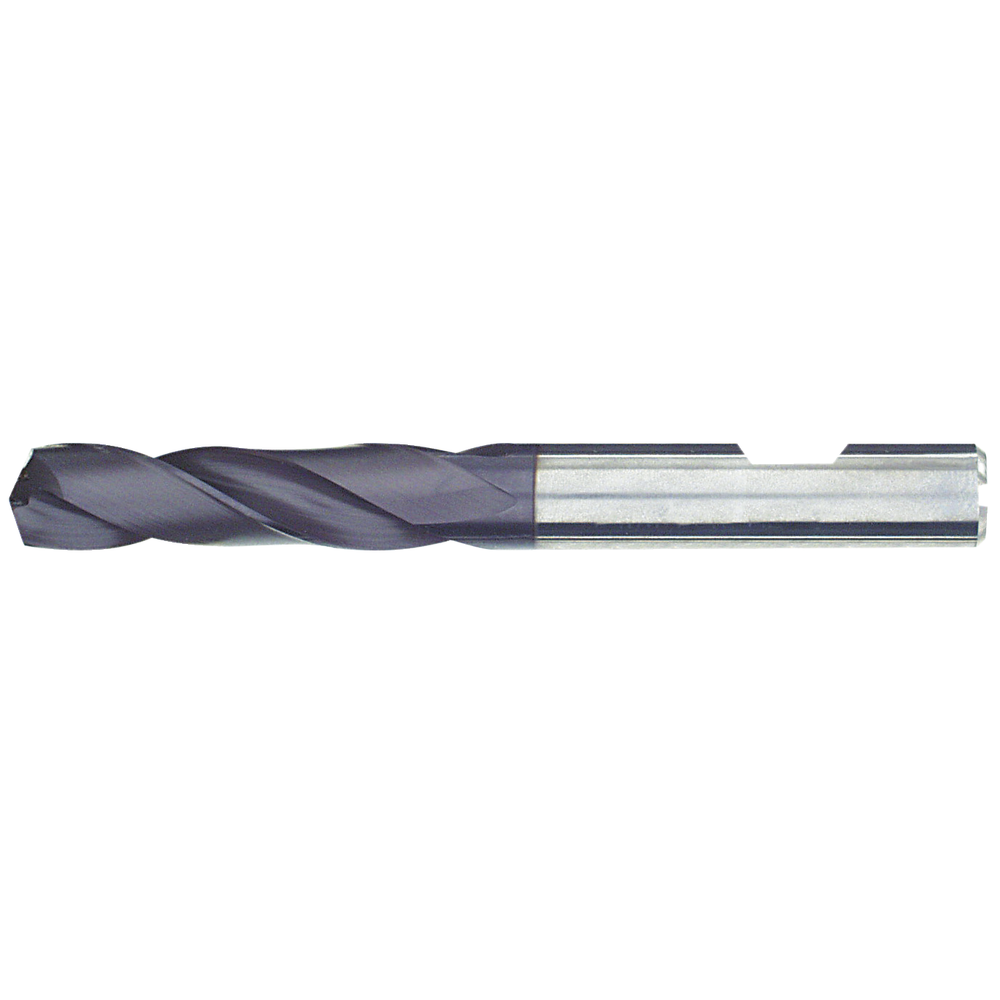

Solid carbide high-performance drill 3xD 5,7mm D1=HB TiAlN

Solid carbide high-performance drill 3xD 5,7mm D1=HB TiAlN
Solid carbide high-performance drill 3xD 5,7mm D1=HB TiAlN Solid carbide high-performance drill 3xD 5,7mm D1=HB TiAlN
Individual price after or registration
prices excl. vat plus shipping costs

Stock status
in stock
Tool Finder

_ItemDeliveryInfoSaratools missing

Solid carbide high-performance drill bit
  • With optimised shank diameter tolerance for use as a holding fixture in power chucks and hydraulic expansion chucks
  • Without coolant bore
  • Solid carbide cutting material: ultra-fine grain TiAlNplus and TiN
  • 2-facet grinding
  • True-running accuracy of the tool when clamped max. 0.02 mm

Article no./ATORN no.
1115040057 / 10480630
Packaging unit
1
Catalogue page

Technical characteristics

Coating TiAlN
Coolant design Without coolant supply
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D m7 5,70 mm
D1 h6 6 mm
Design TiAlN, HB
Drilling depth 3xD
Feed f steel < 1000 N/mm² 0,11 mm/rev
L 66 mm
L1 28 mm
L3 20 mm
Point angle Point angle 140°
Section shape Split point
Shank Straight with driving plane, DIN 6535 HB
Spiral angle 30° RH helix angle
Standard constructional dimensions DIN DIN 6537
Type Type U

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
copper Cu-alloy
hardened steel < 55 HRc
hardened steel < 60 HRc
hardened steel ≤ 65 HRC
hardened steel ≥ 60 HRc
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
