Messuhr digital 12,7mm (0,01mm) ID-S mit Öse

Messuhr digital 12,7mm (0,01mm) ID-S mit Öse
Messuhr digital 12,7mm (0,01mm) ID-S mit Öse Messuhr digital 12,7mm (0,01mm) ID-S mit Öse Messuhr digital 12,7mm (0,01mm) ID-S mit Öse Messuhr digital 12,7mm (0,01mm) ID-S mit Öse
Price:
180,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder

Add service

*
*

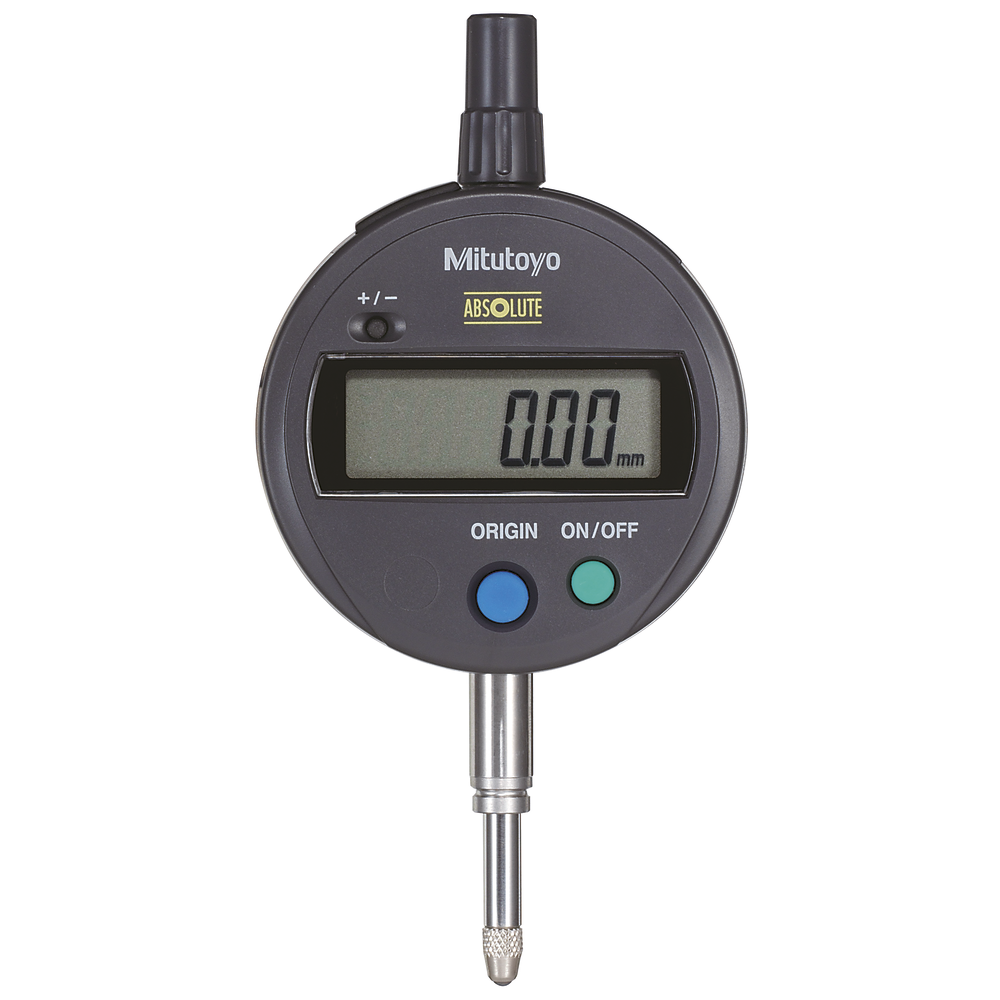

Digital ABSOLUTE dial indicator IDS
  • Effortless to read thanks to large 9 mm LCD digits
  • Die-cast aluminium casing
  • ABSOLUTE scale
  • Carbide contact point with M2.5 thread
  • Clamping shank Ø 8 mm
  • Unrestricted travel speed
  • Functions: On/off, zeroing (ORIGIN), reverse measuring direction (+/-)
  • Optional accessories: Digimatic cable type F, no. 563100 0051 (1 m), no. 563100 0052 (2 m); USB cable type F-USB, no. 563110 0006

Standard version
  • Battery life: 20,000 hrs.
  • Supplied in moulded packaging with SR44 battery, no. 500534 0001

Digital ABSOLUTE dial indicator IDS
  • Effortless to read thanks to large 9 mm LCD digits
  • Die-cast aluminium casing
  • ABSOLUTE scale
  • Carbide contact point with M2.5 thread
  • Clamping shank Ø 8 mm
  • Unrestricted travel speed
  • Operating time: 0,01 mm - 20.000 hours, 0,001 mm - 18.000 hours
  • Functions: On/off, zeroing (ORIGIN), reverse measuring direction (+/-)
  • Optional accessories: Digimatic cable type F, no. 563100 0051 (1 m), no. 563100 0052 (2 m); USB cable type F-USB, no. 563110 0006

Standard version
  • Battery life: 20,000 hrs.
  • Supplied in moulded packaging with SR44 battery, no. 500534 0001

Article no./ATORN no.
5120171218
Vendor Article no.
543-781-10
Packaging unit
1
Catalogue page

Technical characteristics

Data transmission type DIGIMATIC/USB
Digit increment 0,01 mm
Display Digital
Error limit 0,02 mm
Error limit 0,02 mm
External ring Ø 59 mm
Functions Absolute function
Max. length measuring range 12,7 mm
Measurement range 12,7 mm
Measurement system ABSOLUTE
Measuring force 1,5 N
Measuring force 1,5 N
Reading 0,01 mm
Standard constructional dimensions DIN Non-DIN
