Bügelmessschraube digital 50-75mm (0,001mm), nichtdrehende Spindel

Bügelmessschraube digital 50-75mm (0,001mm), nichtdrehende Spindel
Bügelmessschraube digital 50-75mm (0,001mm), nichtdrehende Spindel
Price:
1.099,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder

Add service

*
*
With factory certificate for measurement ranges up to 50 mm!

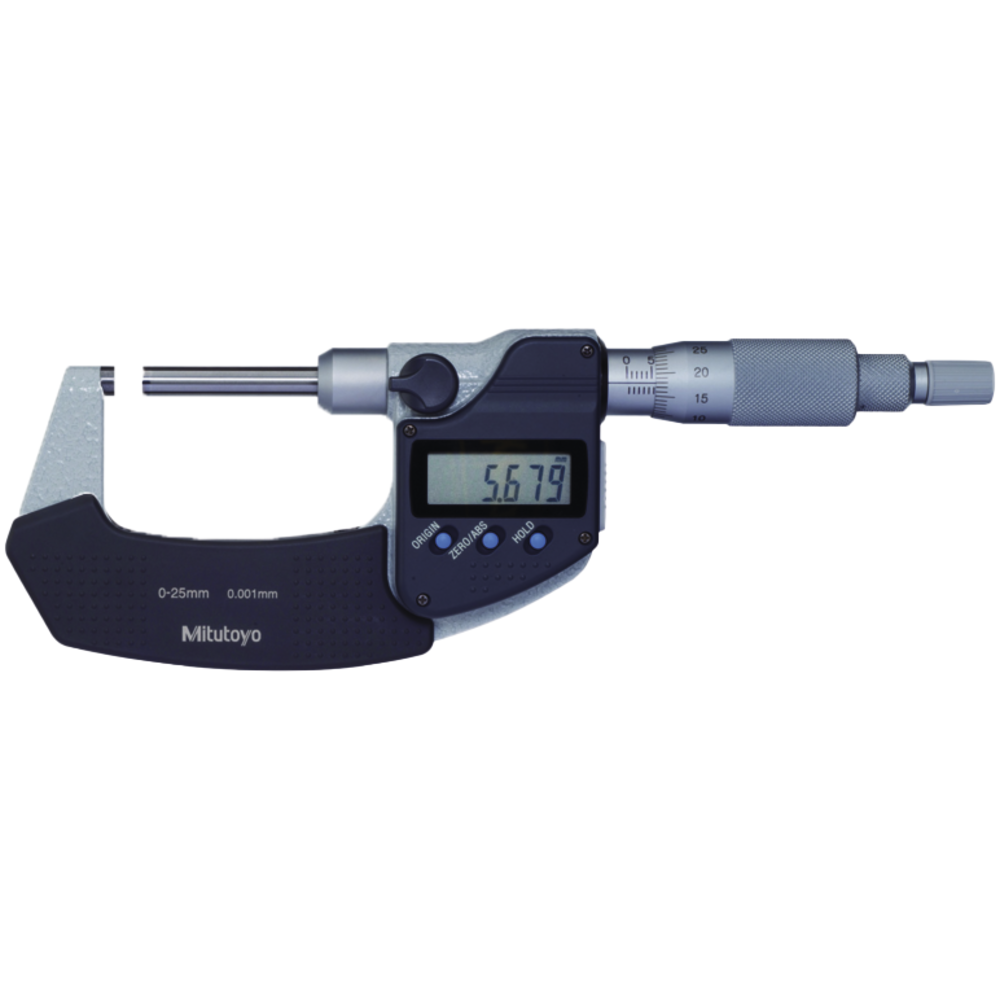

Digital outside micrometer IP65
  • Precision design with ratchet
  • Shock-proof design
  • Robust frame made from special cast iron, painted, with hand protection
  • Spindle fixed by means of a lever button
  • Matt chrome-plated scale sleeve and scale barrel
  • Readings via large LCD display with 7.5 mm high digits
  • Automatic switch-off if left idle
  • “Function Lock” for saving original values up to a measurement range of 100 mm
  • Scale barrel Ø 18 mm
  • Spindle Ø 6.35 mm
  • Calibration includes setting gauge
  • Accuracy exceeds DIN 863 requirements
  • Functions: Initial value (ORIGIN), zeroing/absolute (ZERO/ABS), hold value (HOLD), automatic switch-off, battery check
  • Supplied with adjustment key and SR44 battery, no. 500534 0001; versions with measurement ranges over 25 mm include setting gauge and versions up to 50 mm include factory certificate
  • Optional accessories: Digimatic cable type B, no. 563100 0011 (1 m), no. 563100 0012 (2 m); USB cable type B-USB, no. 563110 0002

With factory certificate for measurement ranges up to 50 mm!

Digital outside micrometer IP65
  • Precision design with ratchet
  • Shock-proof design
  • Robust frame made from special cast iron, painted, with hand protection
  • Spindle fixed by means of a lever button
  • Matt chrome-plated scale sleeve and scale barrel
  • Readings via large LCD display with 7.5 mm high digits
  • Automatic switch-off if left idle
  • “Function Lock” for saving original values up to a measurement range of 100 mm
  • Scale barrel Ø 18 mm
  • Spindle Ø 6.35 mm
  • Calibration includes setting gauge
  • Accuracy exceeds DIN 863 requirements
  • Functions: Initial value (ORIGIN), zeroing/absolute (ZERO/ABS), hold value (HOLD), automatic switch-off, battery check
  • Supplied with adjustment key and SR44 battery, no. 500534 0001; versions with measurement ranges over 25 mm include setting gauge and versions up to 50 mm include factory certificate
  • Optional accessories: Digimatic cable type B, no. 563100 0011 (1 m), no. 563100 0012 (2 m); USB cable type B-USB, no. 563110 0002

Article no./ATORN no.
5037080003
Vendor Article no.
406-252-30
Packaging unit
1
Catalogue page

Technical characteristics

Data transmission type RS232C/DIGIMATIC/USB
Data transmission type DIGIMATIC/USB
Description nichtdrehede Spindel
Design nicht drehende Spindel
Digit increment 0,001 mm
Digit increment 0,001 mm
DIN 863/3
DIN 863/3
Display Digital
Error limit 0,003 mm
Error limit 0,003 mm
Included in delivery Sturdy box
Included in delivery Sturdy box
Material property Outside micrometer, carbide-tipped
Material property Outside micrometer, carbide-tipped
Measurement range 50-75 mm
Measurement range 50-75 mm
Measuring spindle increments 0,5 mm
Measuring spindle increments 0,5 mm
Protection type IP 65
Protection type IP 65
