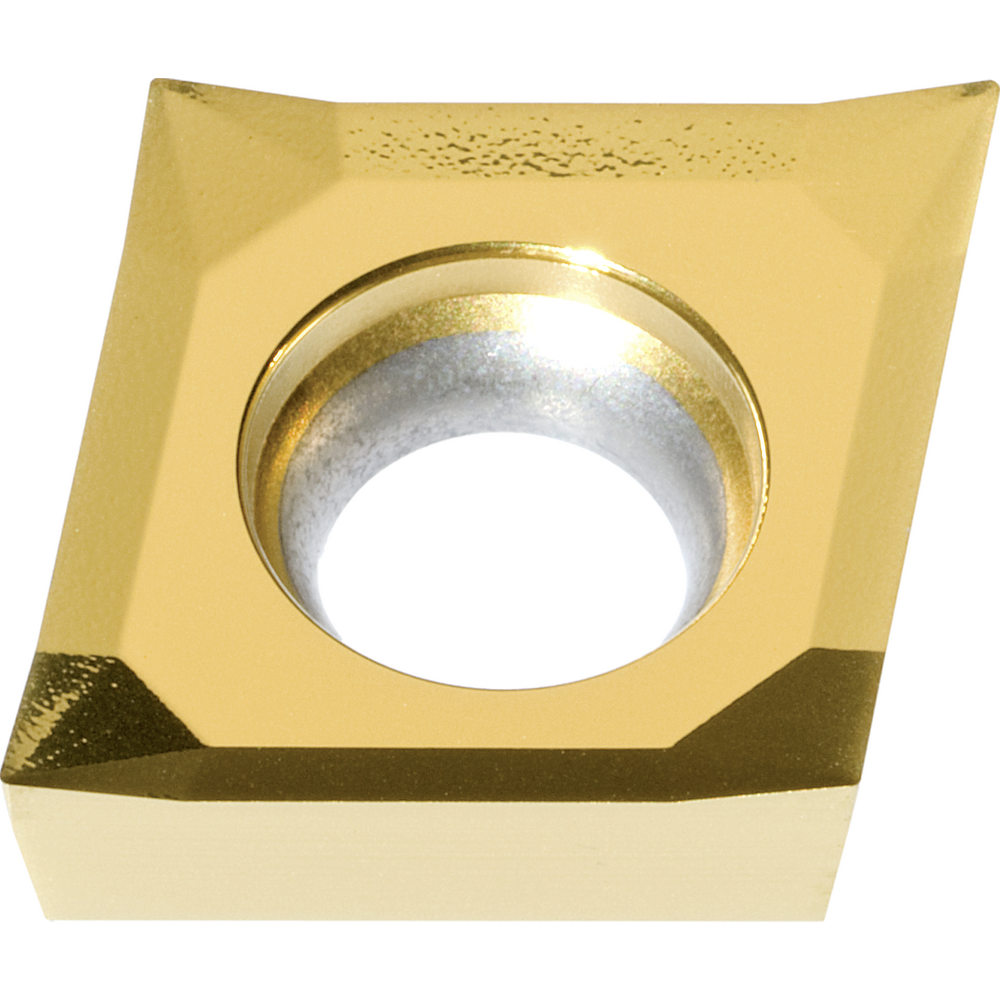

Indexable insert CCGT 030102-R-F HC4625

Indexable insert CCGT 030102-R-F HC4625
Indexable insert CCGT 030102-R-F HC4625
Price
19,95 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder
Boring bar, positive SCLC
  • SCLC R/L 95°
  • Setting angle 95°, for rhombic indexable insert positive 7°, 80° point angle
  • Used for longitudinal turning, very well suited for small holes
  • With internal cooling
  • D min from 5.0 mm
  • Note: right boring bar = left WP, left boring bar = right WP

Suitable ISO P/K indexable inserts
Article no./ATORN no.
3212660165 / 11110424
Packaging unit
10
Catalogue page
KS-0942

Technical characteristics

Anzahl Stück pro Paket 10 pc.
ap max. 1,5 mm
ap min. 0,2 mm
Coating CVD
Cutting material HM
Design Right
Eckenradius 0,2 mm
Eckenradius Wendeschneidplatte ISO 02
F max. 0,1 mm/rev
F min. 0,05 mm/rev
Freiwinkel 7 °
Freiwinkel Wendeschneidplatte ISO C
Hartmetallsorte ISO P25
Hartmetallsortenbereich ISO P
ISO designation CCGT 030102 R-F
ISO H 3
ISO K 1
ISO M 1
ISO N 1
ISO P 1
ISO S 3
ISO-Code Drehen CCGT 030102
ISO-Norm CCGT
Machining type Medium processing - Universal geometry with wide service range
Quality HC4625
S 80 °
Spanbrecherbezeichnung MP
Surface Coated
Toleranzklasse Wendeschneidplatte ISO G
Vc in Edelstahl max. 50 m/min
Vc in Edelstahl min. 30 m/min
Vc in Guss max. 500 m/min
Vc in Guss min. 150 m/min
Vc in NE-Metalle max. 300 m/min
Vc in NE-Metalle min. 150 m/min
Vc in Stahl max. 450 m/min
Vc in Stahl min. 120 m/min
Wendeschneidplattendicke 1,58 mm
Wendeschneidplattendicke ISO 01
Wendeschneidplattenform ISO C
Wendeschneidplattengröße ISO 03
Wendeschneidplattentyp ISO T
