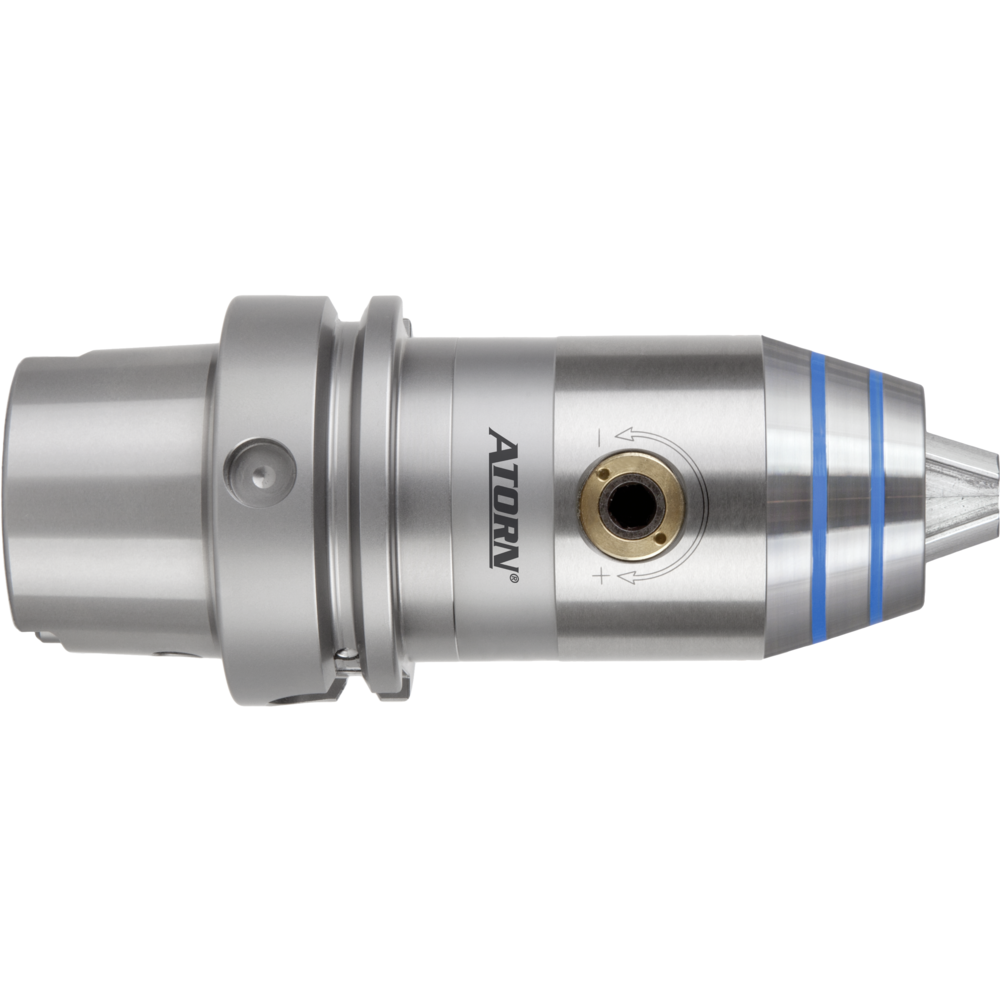

NC short drill chuck with spur gear system DIN69893 HSK-A63, 0,5-16mm

4401376316

390,00 €

prices excl. vat plus shipping costs

Stock status

in stock

External stock

available

Add to shopping cart

Compare

Ordered by 19:30 - delivered tomorrow.

Clamping range 0.5 to 16.0 mm

NC short drill chuck with spur gear system

Clamping by means of a spur gear system
Suitable for clockwise and anticlockwise rotation
True-running accuracy 0.02 mm
Short clamping and retooling times
Very short design
For drilling, reaming, countersinking, thread cutting and simple finishing work on machining centres and CNC lathes
Pre-balanced to G 6.3 at 25,000 rpm
Max. permitted speed with balanced tool 35,000 rpm
Max. permitted speed with unbalanced tool 7,000 rpm

DIN 69893 ISO 12164-1 (HSK-A)

Clamping range 0.5 to 16.0 mm

NC short drill chuck with spur gear system

Clamping by means of a spur gear system
Suitable for clockwise and anticlockwise rotation
True-running accuracy 0.02 mm
Short clamping and retooling times
Very short design
For drilling, reaming, countersinking, thread cutting and simple finishing work on machining centres and CNC lathes
Pre-balanced to G 6.3 at 25,000 rpm
Max. permitted speed with balanced tool 35,000 rpm
Max. permitted speed with unbalanced tool 7,000 rpm

DIN 69893 ISO 12164-1 (HSK-A)

Article no./ATORN no.

4401376316 / 21040102

Packaging unit

Catalogue page

KS-1176

Technical characteristics

A 109 mm

Concentricity tolerance 0,03 mm

Coolant supply Internal axial

DIN 69893-1

Form A

Länge 2 113 mm

Max. concentricity 0,02 mm

Max. tightening torque 20 N·m

Min./max. clamping width 0,5-16 mm

Outer diameter 57 mm

Retaining force 90 N

Spannweite max. 16 mm

Spannweite min. 0,5 mm

Taper type HSK 63

Tool holding device HSK 63

Wr. width 6 mm

Wuchtgüte G 6,3 bei 25000 1/min
