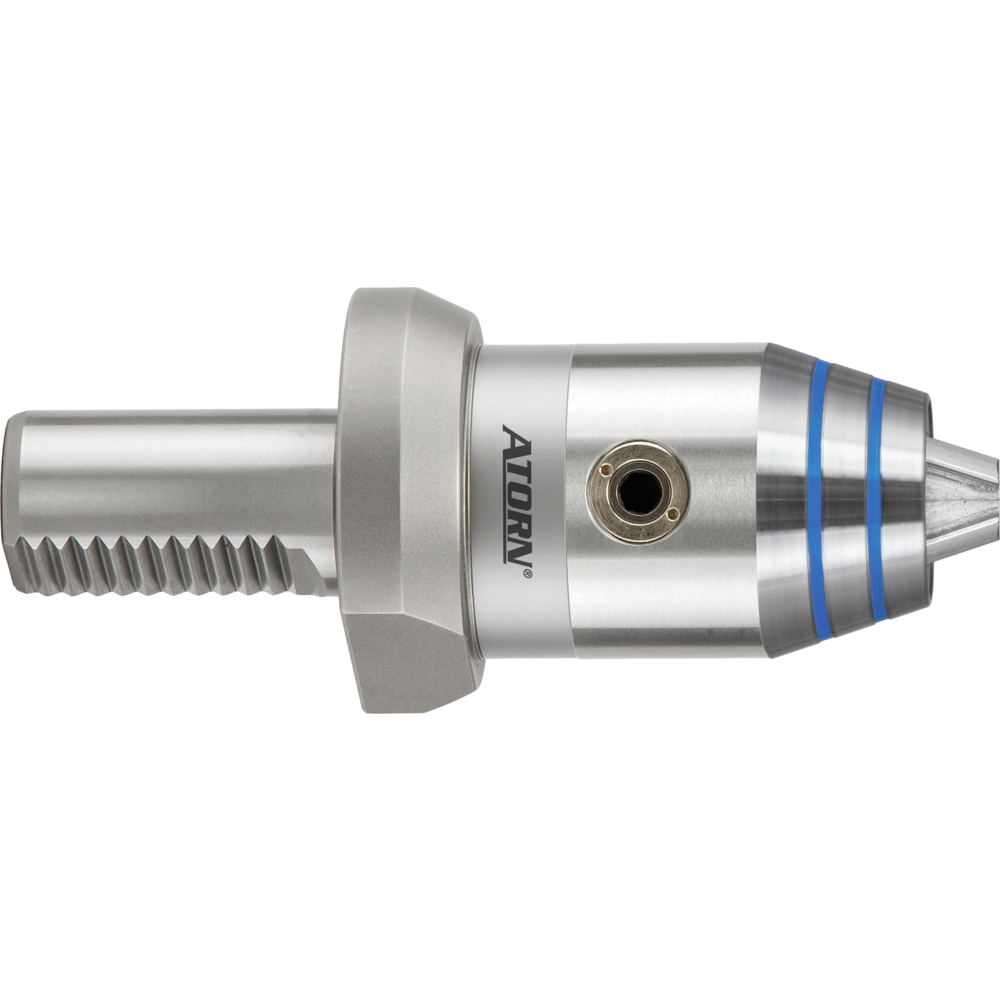

NC short drill chuck with spur gear system DIN69880 VDI30, 0,5-16mm

NC short drill chuck with spur gear system DIN69880 VDI30, 0,5-16mm
NC short drill chuck with spur gear system DIN69880 VDI30, 0,5-16mm NC short drill chuck with spur gear system DIN69880 VDI30, 0,5-16mm
Price:
445,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Precision drill chuck with spur gear system
  • Clamping via spur gear system
  • Suitable for clockwise and anti-clockwise rotation
  • Short clamping and retrofitting times
  • Very short design
  • For CNC lathes, for drilling, reaming, countersinking, thread cutting

VDI tool holding fixture, DIN 69880
  • Central coolant supply

Precision drill chuck with spur gear system
  • Clamping via spur gear system
  • Suitable for clockwise and anti-clockwise rotation
  • Short clamping and retrofitting times
  • Very short design
  • For CNC lathes, for drilling, reaming, countersinking, thread cutting

VDI tool holding fixture, DIN 69880
  • Central coolant supply

Article no./ATORN no.
4401383016 / 21040103
Packaging unit
1
Catalogue page
KS-1150

Technical characteristics

A 95 mm
A 95 mm
Aussendurchmesser 57 mm
Austraglänge geöffnet 103 mm
Austraglänge geschlossen 90 mm
D 57 mm
D 57 mm
DIN 69880-1
DIN 69880-1
Max. concentricity 0,02 mm
Max. concentricity 0,02 mm
Max. tightening torque 20 N·m
Max. tightening torque 20 N·m
Min./max. clamping width 0,5-16 mm
Min./max. clamping width 0,5-16 mm
Retaining force 90 N
Retaining force 90 N
Spannweite max. 16 mm
Spannweite min. 0,5 mm
VDI mount diameter 30
VDI mount diameter 30
Wr. width 6 mm
Wr. width 6 mm
