Tool holder MTJN-L 2020 K16, setting angle 93°, for turning inserts TNM.1604..

Tool holder MTJN-L 2020 K16, setting angle 93°, for turning inserts TNM.1604..
Tool holder MTJN-L 2020 K16, setting angle 93°, for turning inserts TNM.1604.. Tool holder MTJN-L 2020 K16, setting angle 93°, for turning inserts TNM.1604..
Price
121,50 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Tool holders, negative MTJN

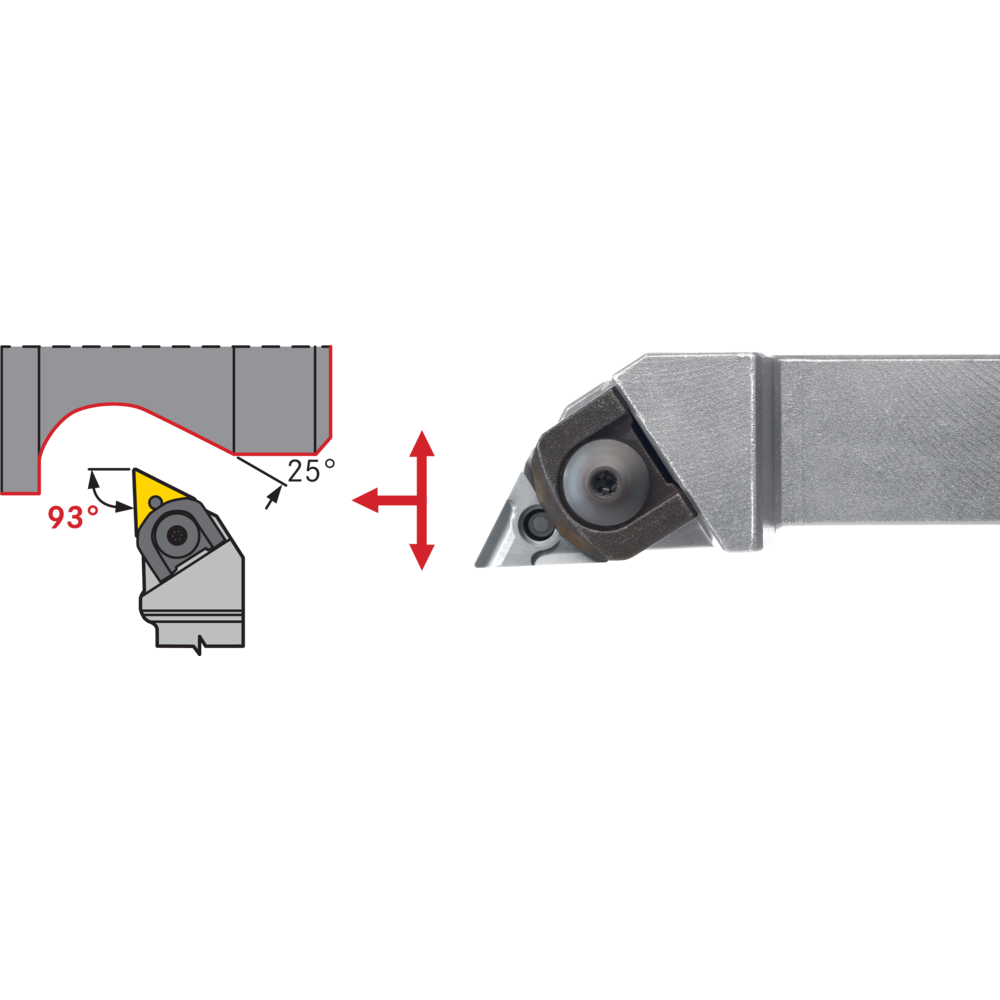

  • MTJN R/L 93°
  • Setting angle 93°, for negative 0º triangular indexable inserts, 60º point angle
  • Use: Longitudinal turning and facing

Article no./ATORN no.
3205242020 / 11119992
Packaging unit
1
Catalogue page

Technical characteristics

Anstellwinkel 93 °
B 20 mm
Design Left-hand
DIN 4983
F 25 mm
for indexable inserts TN..1604..
Freiwinkel 0 °
Geeignet für Wendeschneidplatten TN.. 1604..
h=h1 20 mm
ISO designation MTJN R/L 2020 K16
Klemmsystem M
Kopflänge 35 mm
L1 125 mm
L2 35 mm
Länge 125 mm
Programmiermaß 25 mm
Schaftbreite 20 mm
Schafthöhe 20 mm
Schneidenlänge 16 mm
Wendeschneidplattenform ISO T
