Multi-clamping stations K10.2 and K20

• Hydraulic unlocking
• Repeatability < 0.005 mm
• Steel, unhardened
• The clamping systems are pre-equipped with attachment holes (for common table slot sizes 63, 100 and 125 mm) and positioning aids. The clamping stations are ready for immediate operation. Connections are pre-screwed.
• The clamping station with blow-out has 2 connections: 1 x hydr. opening, 1 x pneum. Blow-out
• Installation drawings, further sizes as well as customised clamping stations for your machine available on request
• Total height K10.2 of just 44 mm
• Total height K20 of just 56 mm

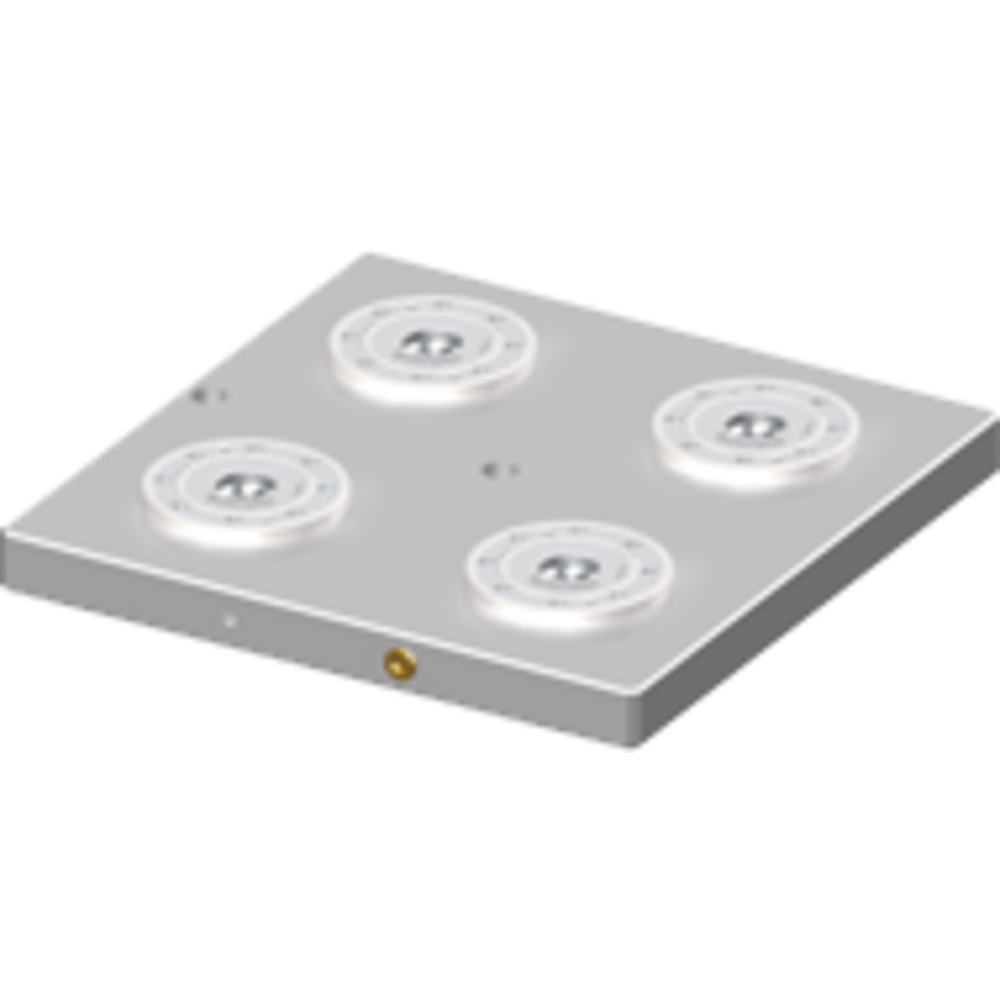

4-place clamping station

• For common table slot sizes 63, 100 and 125 mm
