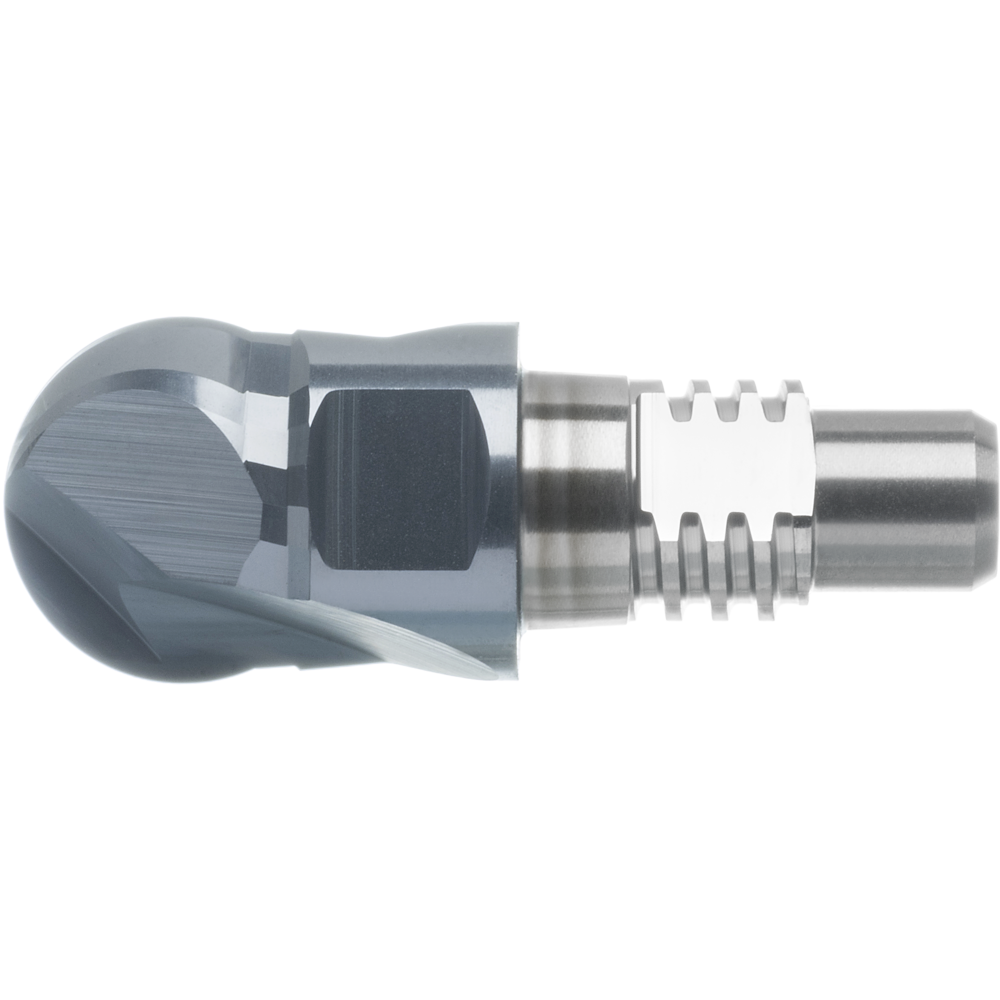

Solid carbide exchangeable head 15° full radius 4Z size 20 Ø10 AlTiN

Solid carbide exchangeable head 15° full radius 4Z size 20 Ø10 AlTiN
Solid carbide exchangeable head 15° full radius 4Z size 20 Ø10 AlTiN Solid carbide exchangeable head 15° full radius 4Z size 20 Ø10 AlTiN
Price:
78,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Exchangeable head radius milling cutter, Type H Z2 220°
15°
Article no./ATORN no.
2556120100 / 12040411
Packaging unit
1
Catalogue page
KS-0626
Cutting values
SW-0805

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling MSC
Coating AlTiN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 10 mm
D1 9,6 mm
Design AlTiN
Durchmesser max. 20 mm
Durchmesser min. 10 mm
Durchmesser min./max. 10-20 mm
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 3
Eignung Titan/Nickel/Super gesamt 3
Feed for side milling fz steel < 1000 mm² 0,065 mm/tooth
fitness hartl total 1
Form Radius
Freistellungsdurchmesser 9,6 mm
fz Hart 52 HRC 0,045 mm
Geeignet für Werkstoffgruppe H 1
Geeignet für Werkstoffgruppe K 1
Geeignet für Werkstoffgruppe M 3
Geeignet für Werkstoffgruppe N 3
Geeignet für Werkstoffgruppe P 1
Geeignet für Werkstoffgruppe S 3
L 14 mm
L1 7 mm
R 5 mm
Replaceable head system WKS 20
Surface AlTiN
Tightening torque 12 N·m
Tolerance of cutting edge diameter h10
Tolerance of shank diameter h6
Twist angle 15°
Type NH
Wr. width 8 x 3 mm
Z 2 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
hardened steel < 60 HRc
hardened steel ≤ 55 HRC
hardened steel ≤ 65 HRC
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
