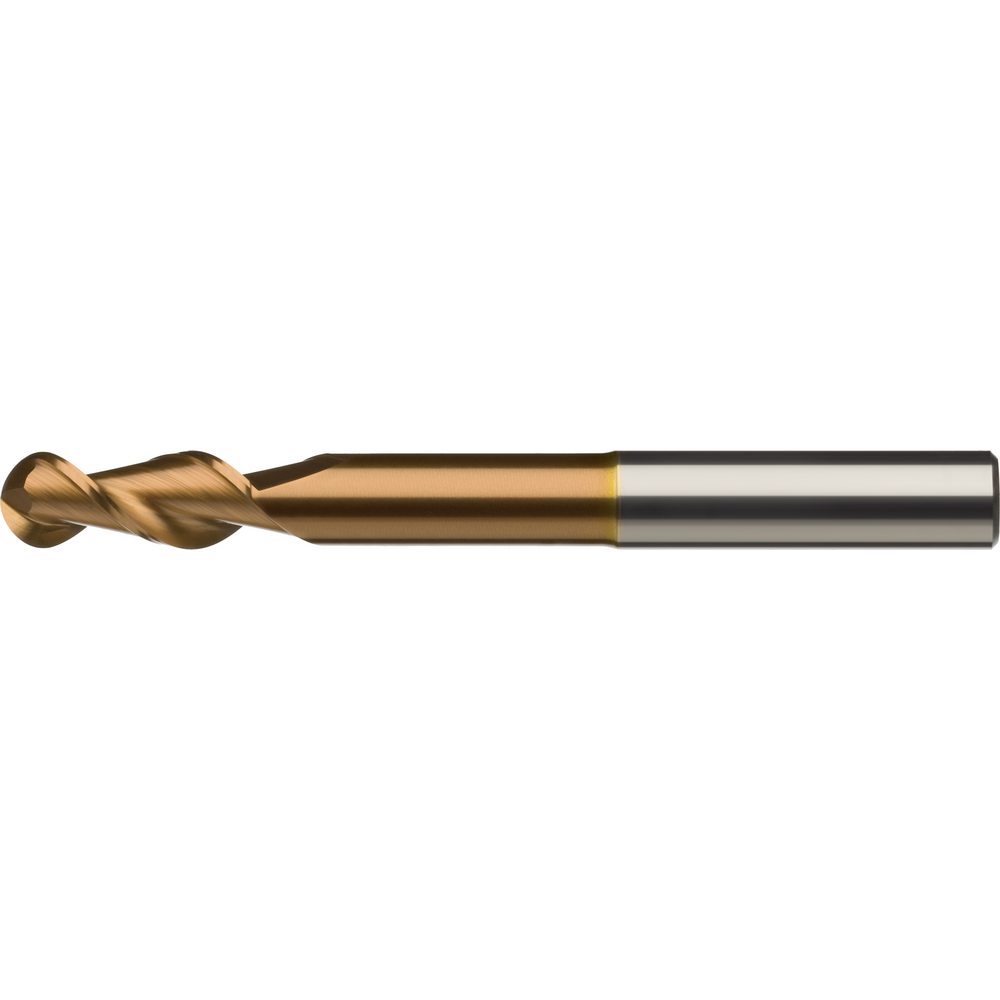

Solid carbide Al radius milling cutter 3mm, L2=32mm Z=2 long, HA, ZrCN Ultra-N

Solid carbide Al radius milling cutter 3mm, L2=32mm Z=2 long, HA, ZrCN Ultra-N
Solid carbide Al radius milling cutter 3mm, L2=32mm Z=2 long, HA, ZrCN Ultra-N Solid carbide Al radius milling cutter 3mm, L2=32mm Z=2 long, HA, ZrCN Ultra-N
Price:
70,70 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Ultra-N radius milling cutter
  • With clearance
  • With defined cutting edge rounding
  • For non-ferrous materials
  • Radius tolerance +/- 0.01 mm
  • Cutting material: superfine grain solid carbide, ZrCN Ultra-N-coated

Long
Article no./ATORN no.
2492500030 / 11263710
Packaging unit
1
Catalogue page
KS-0472
Cutting values
SW-0764

Technical characteristics

Application direction milling Lining, ramping and drilling
Coating ZrCN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3 mm
D1 3 mm
D3 2,9 mm
Durchmesser max. 16 mm
Durchmesser min. 3 mm
Durchmesser min./max. 3-16 mm
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 1
Eignung Titan/Nickel/Super gesamt 3
Feed for grooving fz aluminium < 8 % Si 0,027 mm/tooth
Feed for side milling fz aluminium < 8 % Si 0,030 mm/tooth
fitness hartl total 3
Form Radius
Freistellungslänge 32 mm
fz ALU 0,05 mm
Geeignet für Werkstoffgruppe H 3
Geeignet für Werkstoffgruppe K 3
Geeignet für Werkstoffgruppe M 3
Geeignet für Werkstoffgruppe N 1
Geeignet für Werkstoffgruppe P 3
Geeignet für Werkstoffgruppe S 3
L 75 mm
L1 10 mm
L2 32 mm
Oberfläche ULTRA N
R 1,5 mm
Rake angle 17 °
Tolerance of cutting edge diameter h9
Tolerance of shank diameter h5
Tool holding device HA parallel shank
Twist angle 45°
Type W
Z 2 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
plastic

very suitable
suitable
