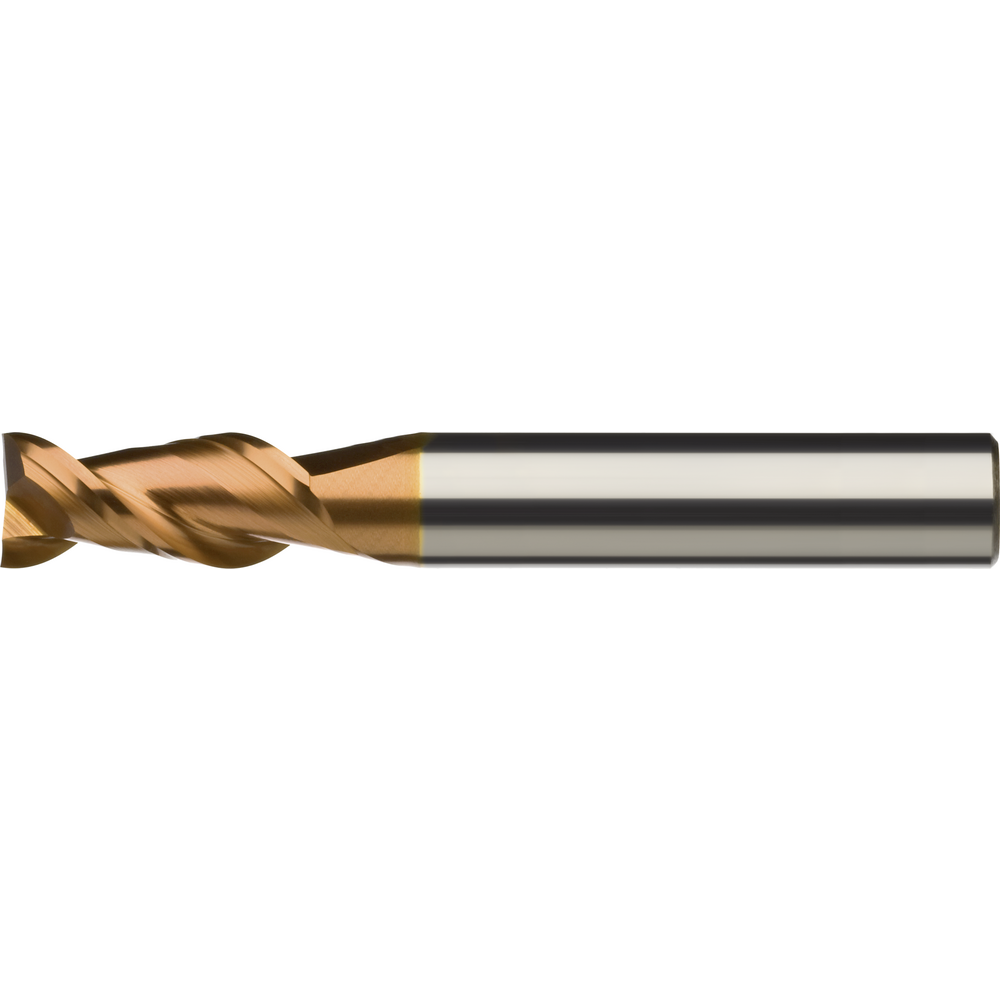

SC Al slot drill 3mm L2=18mm Z=2 HA, edge prot. chamfer, ZrCN Ultra-N

SC Al slot drill 3mm L2=18mm Z=2 HA, edge prot. chamfer, ZrCN Ultra-N
SC Al slot drill 3mm L2=18mm Z=2 HA, edge prot. chamfer, ZrCN Ultra-N SC Al slot drill 3mm L2=18mm Z=2 HA, edge prot. chamfer, ZrCN Ultra-N
Price:
42,10 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Ultra-N slot drill
  • With clearance
  • 2 cutting edges, with edge chamfer F
  • With defined cutting edge rounding
  • Polished version, sharp-edged, ground
  • For non-ferrous materials
  • Cutting material: superfine grain solid carbide, uncoated with mirror finish / polished version
  • Cutting material: superfine grain solid carbide, ZrCN Ultra-N coated

Standard
Article no./ATORN no.
2492010030 / 11263170
Packaging unit
1
Catalogue page
KS-0458
Cutting values
SW-0759

Technical characteristics

Application direction milling Lining, ramping and drilling
Center cutting Yes
Coating ZrCN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3 mm
D1 6 mm
D3 2,9 mm
Design Straight shank HA ZrCN
Durchmesser max. 16 mm
Durchmesser min. 3 mm
Durchmesser min./max. 3-16 mm
Edge protection for chamfer angle 45 °
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 1
Eignung Titan/Nickel/Super gesamt 3
F x 45° 0,1 mm
Feed for side milling fz aluminium < 8 % Si 0,045 mm/tooth
fitness hartl total 3
Form Corner
Freistellungslänge 18 mm
fz ALU 0,013 mm
L 57 mm
L1 8 mm
L2 18 mm
Oberfläche ULTRA N
Overall length Normal
Rake angle 20 °
Suitable for material group H 3
Suitable for material group K 3
Suitable for material group M 3
Suitable for material group N 1
Suitable for material group P 3
Suitable for material group S 3
Tolerance of cutting edge diameter h9
Tolerance of shank diameter h5
Tool holding device HA parallel shank
Twist angle 45°
Type W
Z 2 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
plastic

very suitable
suitable
