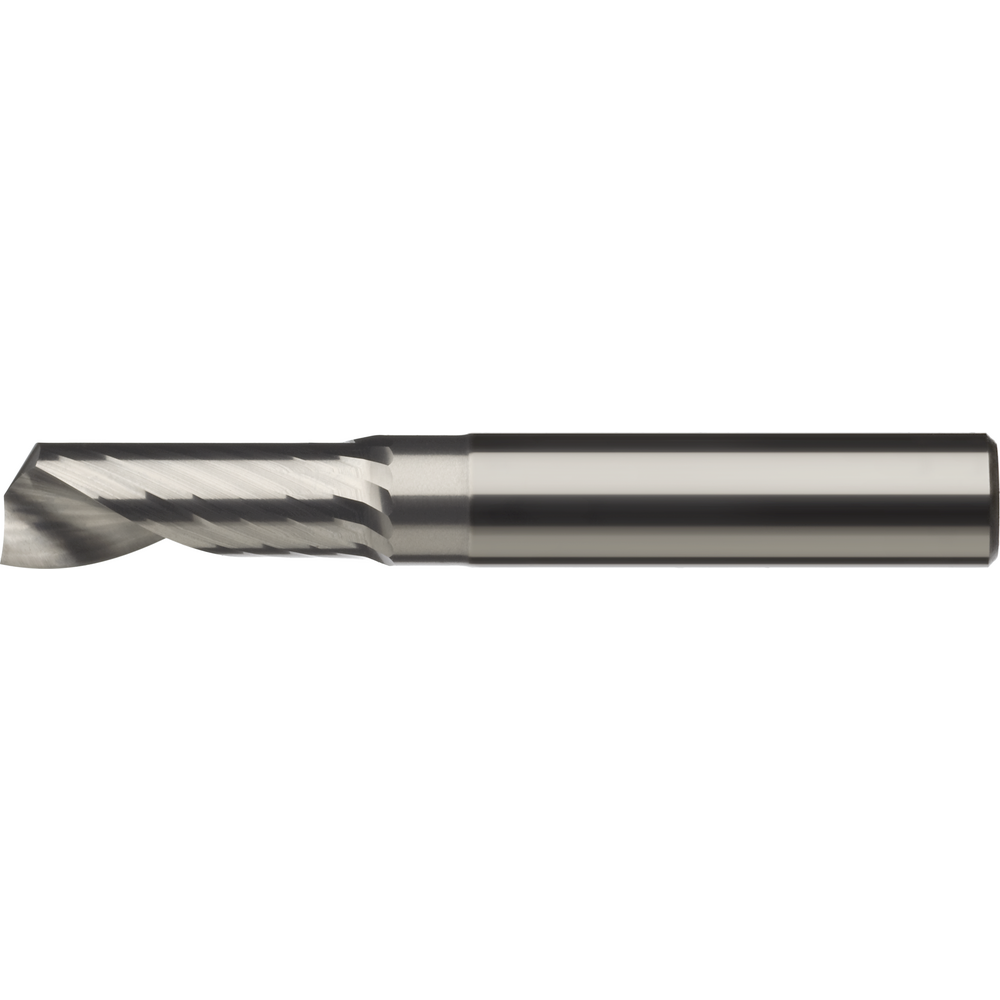

SC Al single-blade end milling cutter 1,5mm L2=22mm Z=1 HA, mirror finish

SC Al single-blade end milling cutter 1,5mm L2=22mm Z=1 HA, mirror finish
SC Al single-blade end milling cutter 1,5mm L2=22mm Z=1 HA, mirror finish SC Al single-blade end milling cutter 1,5mm L2=22mm Z=1 HA, mirror finish
Price:
32,10 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Ultra-N single-blade end milling cutter
  • With clearance
  • With defined cutting edge rounding
  • Polished version, sharp-edged, ground
  • For non-ferrous materials
  • Cutting material: superfine grain solid carbide, uncoated with mirror finish / polished version
  • Large chip space for unhindered chip removal

Article no./ATORN no.
2491000015 / 11263100
Packaging unit
1
Catalogue page
KS-0456
Cutting values
SW-0757

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling MSC
Center cutting Yes
Clearance length 22 mm
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 1,5 mm
D1 3 mm
D3 1,45 mm
Design Mirror finish
Durchmesser max. 16 mm
Durchmesser min. 1,5 mm
Durchmesser min./max. 1,5-16 mm
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 1
Eignung Titan/Nickel/Super gesamt 3
Feed for grooving fz aluminium < 8 % Si 0,0175 mm/tooth
Feed for side milling fz aluminium < 8 % Si 0,025 mm/tooth
fitness hartl total 3
Form Eck
fz aluminium 0,01 mm
L 50 mm
L1 6 mm
L2 22,0 mm
Overall length Normal
Rake angle 20 °
Suitable for material group H 3
Suitable for material group K 3
Suitable for material group M 3
Suitable for material group N 1
Suitable for material group P 3
Suitable for material group S 3
Surface Uncoated
Tolerance of cutting edge diameter h9
Tolerance of shank diameter h5
Tool holding device HA parallel shank
Twist angle 30°
Type W
Z 1 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
graphite
plastic

very suitable
suitable
