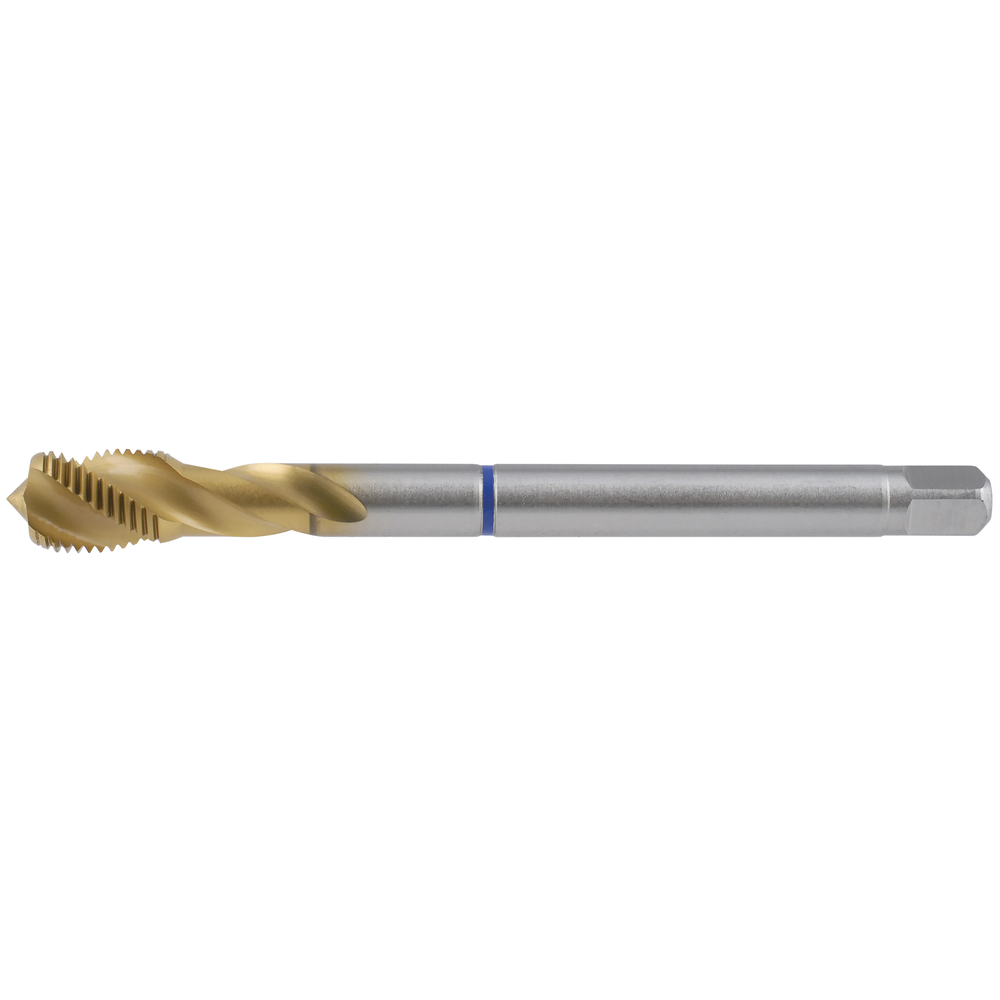

Machine tap HSS-E DIN374C 40°, M6x0,75 blind-hole thread TiN

Machine tap HSS-E DIN374C 40°, M6x0,75 blind-hole thread TiN
Machine tap HSS-E DIN374C 40°, M6x0,75 blind-hole thread TiN Machine tap HSS-E DIN374C 40°, M6x0,75 blind-hole thread TiN
Price:
32,20 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Up to 1000 N/mm²

Machine tap
  • ISO 6H fine-pitch metric thread
  • 40°, spiral-fluted
  • Type C, 2-3 thread chamfer
  • Cutting material: HSS-E, vapour-treated; HSS-E, TiN-coated
  • For blind-hole threads
  • Strong chip removal to the rear
  • Minimal thread relief grinding
  • Possible thread depth 3 x D

Up to 1000 N/mm²

Machine tap
  • ISO 6H fine-pitch metric thread
  • 40°, spiral-fluted
  • Type C, 2-3 thread chamfer
  • Cutting material: HSS-E, vapour-treated; HSS-E, TiN-coated
  • For blind-hole threads
  • Strong chip removal to the rear
  • Minimal thread relief grinding
  • Possible thread depth 3 x D

Article no./ATORN no.
1352900607 / 10482321
Packaging unit
1
Catalogue page
KS-0269
Cutting values
SW-0398

Technical characteristics

C 3,4 mm
C 3,4 mm
Coating TiN
Coating TiN
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D MF6
D MF 6
D1 4,5 mm
D1 4,5 mm
Design TiN
Design TiN
DIN 374
DIN 374
Form/Chamfer C
Form/Chamfer C
L 80 mm
L 80 mm
L1 8 mm
L1 8 mm
Max. thread depth 2,5xD
Max. thread depth 2,5xD
Pitch 0,75 mm
Pitch 0,75 mm
Tapping hole Ø 5,2 mm
Tapping hole Ø 5,2 mm
Thread MF
Thread MF
Thread angle 60 °
Thread angle 60 °
Threaded hole type Stud hole
Threaded hole type Stud hole
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)
Twist angle 40°
Twist angle 40°

Usage characteristics

cast iron GGG
cast iron GGG
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
