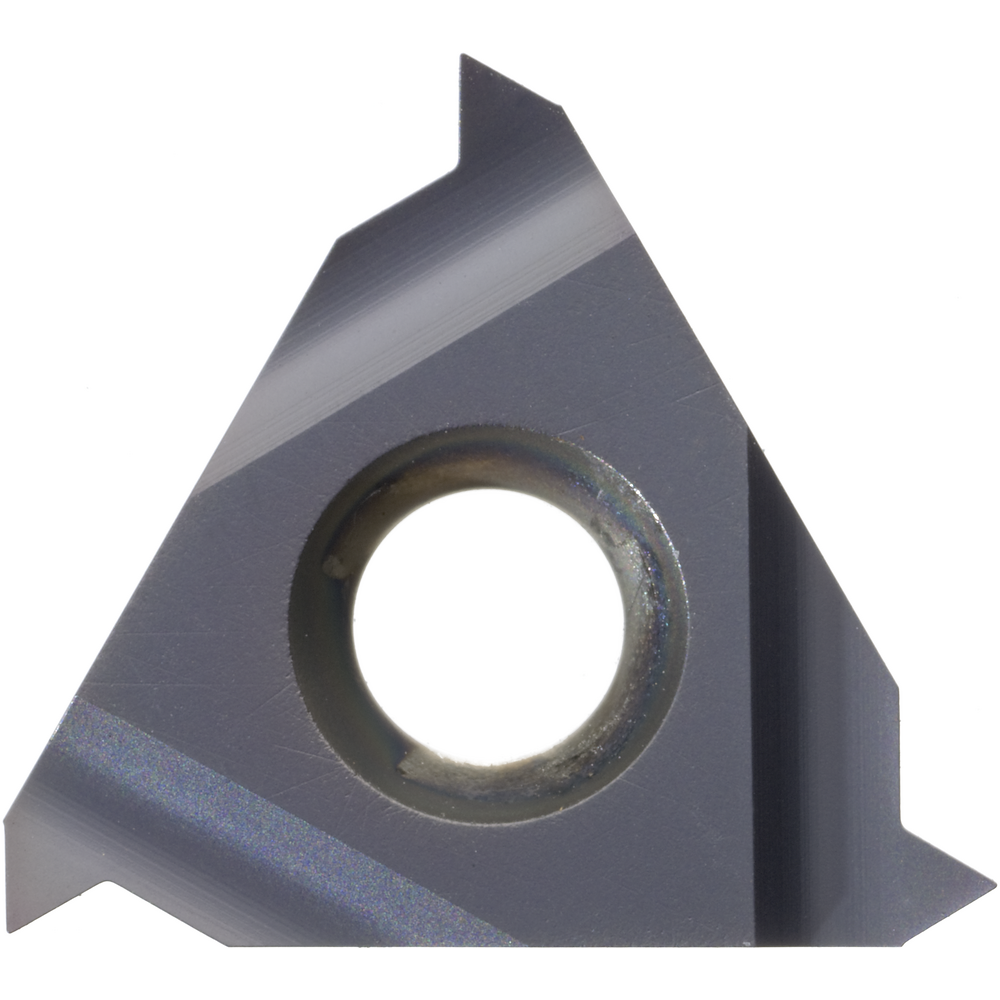

Threading insert partial profile 55° 11IR A55 HC5630 (48-16 thread/inch)

Threading insert partial profile 55° 11IR A55 HC5630 (48-16 thread/inch)
Threading insert partial profile 55° 11IR A55 HC5630 (48-16 thread/inch) Threading insert partial profile 55° 11IR A55 HC5630 (48-16 thread/inch) Threading insert partial profile 55° 11IR A55 HC5630 (48-16 thread/inch)

We charge a material cost surcharge of 6,90% on this product.

Price
27,20 €
prices excl. vat plus shipping costs

Stock status
8 immediately available
Add to shopping cart
Tool Finder

_ItemDeliveryInfoSaratools missing

Thread cutting inserts, partial profile, 55°
  • Partial profile, 55°
  • Inserts available in left-hand version on request

Partial profile, 55° internal right-hand, ground
Article no./ATORN no.
3426010127 / 11940960
Packaging unit
10
Catalogue page
KS-0970
Cutting values
SW-1102

Technical characteristics

Carbide type HC5630
Cutting data Cutting angle Information - yes
Design HC 5630
Designation 11 IR A55
Gangzahl pro Zoll max. 16
Gangzahl pro Zoll min. 48
ISO designation 11 (IR/IL) A55
ISO H
ISO K
ISO M
ISO P
ISO S
L 11 mm
Min./max. number of thread starts per inch 48-16
Min./max. Vc in cast iron 100-110 m/min
Min./max. Vc in stainless steel 80-100 m/min
Min./max. Vc in steel 90-120 m/min
Vc in Edelstahl max. 100 m/min
Vc in Edelstahl min. 80 m/min
Vc in Guss max. 110 m/min
Vc in Guss min. 100 m/min
Vc in Stahl max. 120 m/min
Vc in Stahl min. 90 m/min
