Collet chuck set ER25 DIN69871AD SK40, 2-16mm

Collet chuck set ER25 DIN69871AD SK40, 2-16mm
Collet chuck set ER25 DIN69871AD SK40, 2-16mm Collet chuck set ER25 DIN69871AD SK40, 2-16mm
Price:
465,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

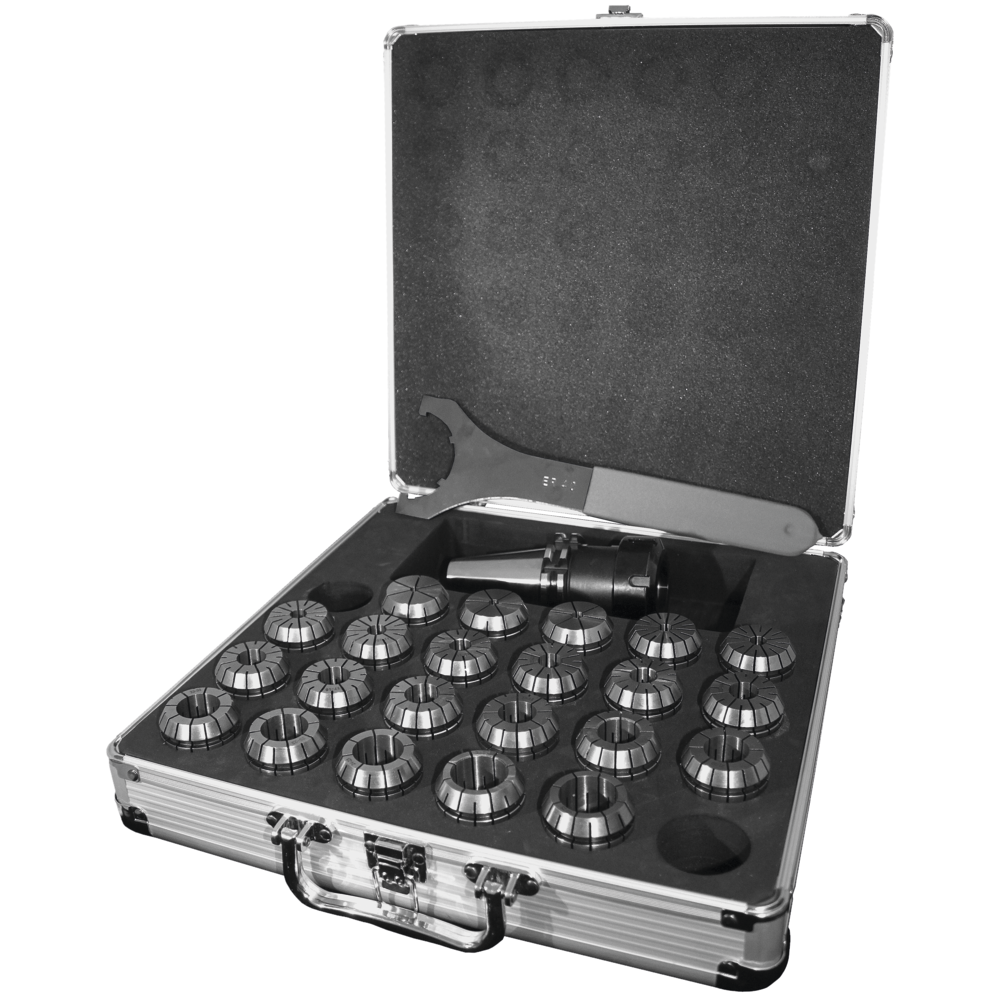

ER collet chuck set DIN ISO 7388-1 / DIN 69871AD/AF SK40
  • ER collets, DIN 6499, increasing in 1 mm increments, max. true running accuracy < 0.008 mm
  • ER collet chuck, DIN ISO 7388-1 / DIN 69871AD/AF SK 40, max. true running accuracy < 0.005 mm
  • Alloyed case-hardened steel with a core tensile strength of min. 950 N/mm2 Case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8 mm ± 0.2 mm, burnished
  • Pre-balanced to G 6.3 / 15,000 rpm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Supplied in plastic case with clamping key and clamping nut

ER collet chuck set DIN ISO 7388-1 / DIN 69871AD/AF SK40
  • ER collets, DIN 6499, increasing in 1 mm increments, max. true running accuracy < 0.008 mm
  • ER collet chuck, DIN ISO 7388-1 / DIN 69871AD/AF SK 40, max. true running accuracy < 0.005 mm
  • Alloyed case-hardened steel with a core tensile strength of min. 950 N/mm2 Case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8 mm ± 0.2 mm, burnished
  • Pre-balanced to G 6.3 / 15,000 rpm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Supplied in plastic case with clamping key and clamping nut

Article no./ATORN no.
4311034917
Packaging unit
1
Catalogue page
KS-1207

Technical characteristics

A 70 mm
A 70 mm
Clamping range 2-16 mm
Clamping range 2-16 mm
Contents 17-pcs.
Contents 17-pcs.
D 42 mm
D 42 mm
Suitable for collet type ER 25
Suitable for collet type ER 25
