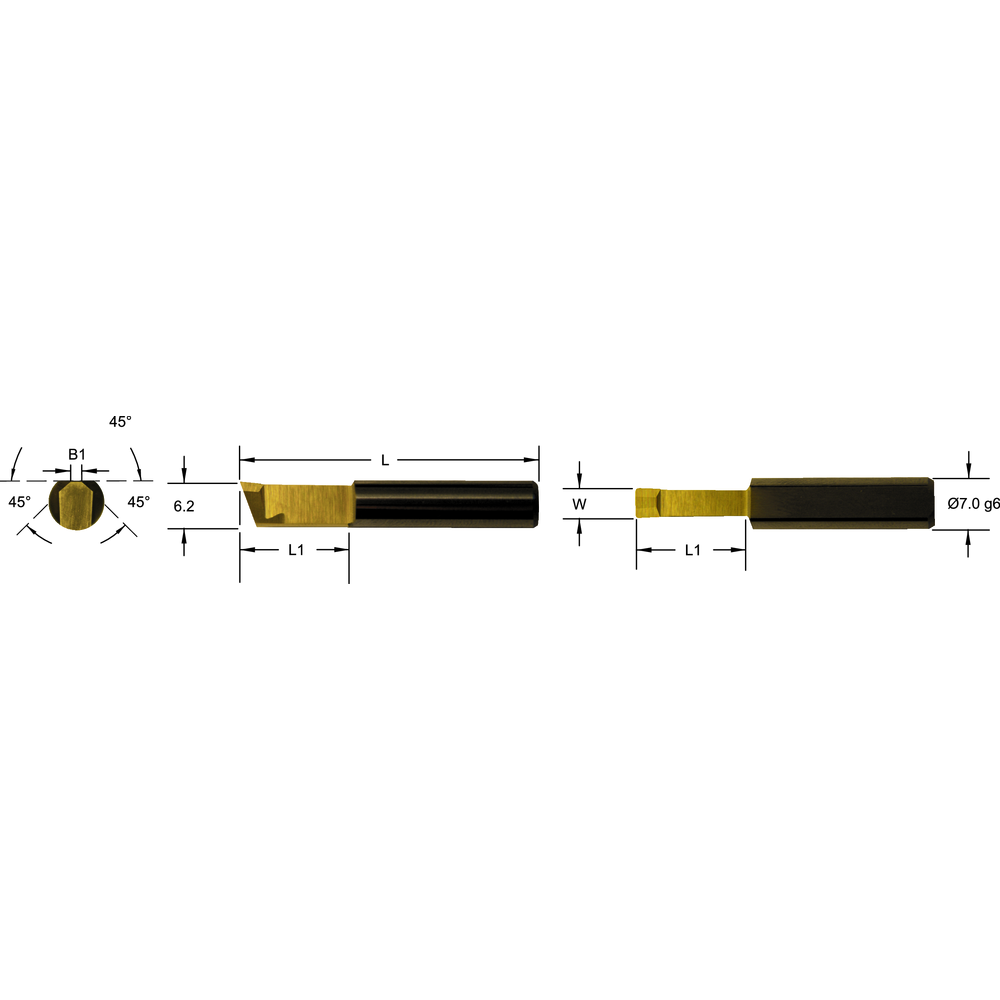

Cutting insert NPU.4545.1 45°/chamfering, groove width: 4/5mm (holder NHU)

Cutting insert NPU.4545.1 45°/chamfering, groove width: 4/5mm (holder NHU)
Cutting insert NPU.4545.1 45°/chamfering, groove width: 4/5mm (holder NHU)
Price:
65,90 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Cutting inserts for keyway slotting
  • Keyway slotting of longitudinal grooves in accordance with DIN 138 and DIN 6885
  • Tolerance class C11/JS9/P9
  • Type NPU, bore Ø from 6 mm
  • Type NP10, bore Ø from 10 mm
  • Type NPV, bore Ø from 22 mm
  • Cutting material: AL41F, TiAlN-coated

Type NPU, 45°/chamfered
Article no./ATORN no.
3070054545
Vendor Article no.
NPU.4545.1/AL41F
Packaging unit
1
Catalogue page
KS-1047
Cutting values
SW-1106

Technical characteristics

Designation NPU.4545.1
Groove width 4 / 5 mm
L 50 mm
L NHU
L1 25 mm
Nominal dimension 3,6 mm
W 6,5 mm
STEP Download
Catalogue page Download
Cutting values Download
