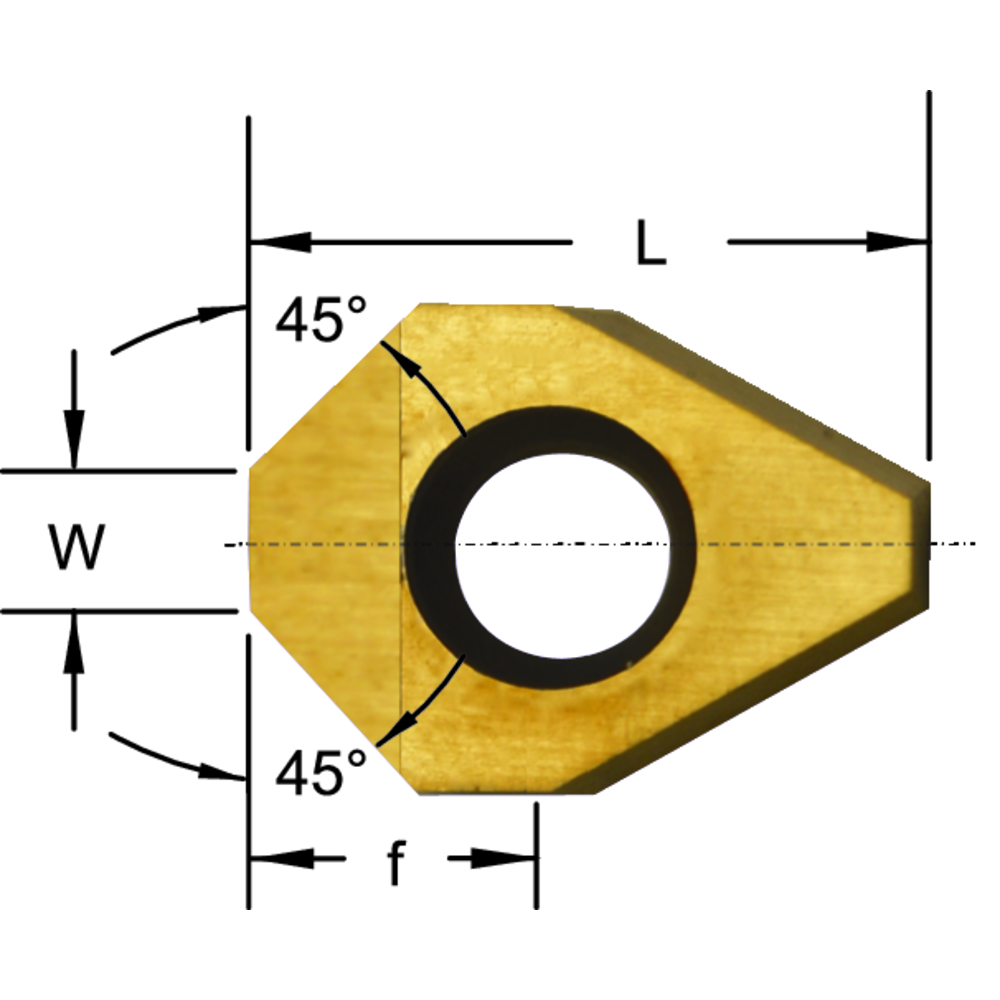

Cutting insert NPV.3045.1 45° chamfering, groove width 6/7/8mm (holder NHV.22)

Cutting insert NPV.3045.1 45° chamfering, groove width 6/7/8mm (holder NHV.22)
Cutting insert NPV.3045.1 45° chamfering, groove width 6/7/8mm (holder NHV.22)
Price:
46,50 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Cutting inserts for keyway slotting
  • Keyway slotting of longitudinal grooves in accordance with DIN 138 and DIN 6885
  • Tolerance class C11/JS9/P9
  • Type NPU, bore Ø from 6 mm
  • Type NP10, bore Ø from 10 mm
  • Type NPV, bore Ø from 22 mm
  • Cutting material: AL41F, TiAlN-coated

Type NPV, 45°/chamfered
Article no./ATORN no.
3090023045
Vendor Article no.
NPV.3045.1/AL41F
Packaging unit
1
Catalogue page
KS-1049
Cutting values
SW-1106

Technical characteristics

Cutting data Cutting angle Information - yes
Designation NPV.3045.1
Groove width 8,0 mm
L 17,3 mm
Nominal dimension 6 / 7 / 8 mm
W 3,5 mm
W NHV22
