Cutting insert LS08.4746.02 C turn./intern. thread undercuts Dmin=7.8 mm AL41F

Cutting insert LS08.4746.02 C turn./intern. thread undercuts Dmin=7.8 mm AL41F
Cutting insert LS08.4746.02 C turn./intern. thread undercuts Dmin=7.8 mm AL41F Cutting insert LS08.4746.02 C turn./intern. thread undercuts Dmin=7.8 mm AL41F
Price
21,20 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

Carbide indexable cutting inserts MINI-CUT

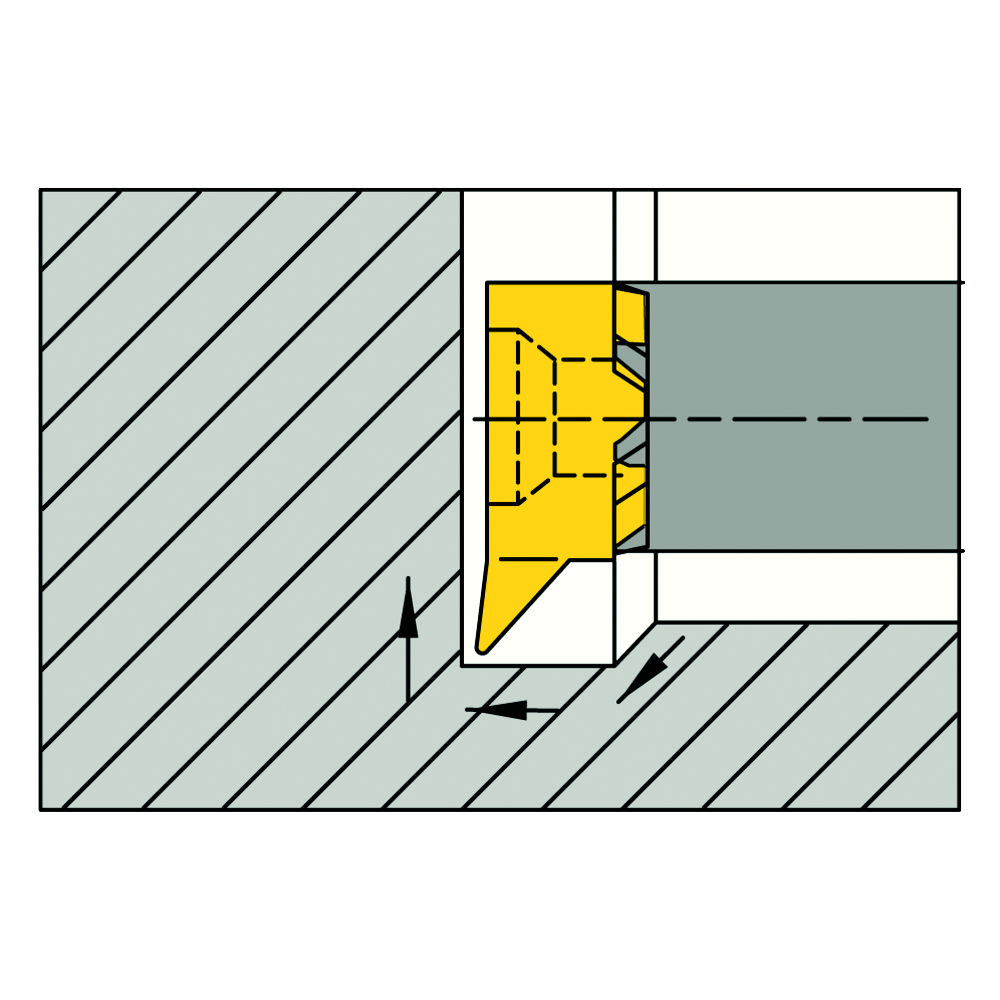

Internal turning, internal thread undercuts (DIN 509)
  • Carbide AL41F, TiAlN-coated
  • Ap max. = maximum cutting depth
  • ST = tool holder front face
  • R = right-hand, as shown
  • L = left-hand, mirror image
  • Internal turning and internal thread undercuts (DIN 509), angle W1 = 47°

Article no./ATORN no.
3060400001
Vendor Article no.
LS08.4746.02/AL41F
Packaging unit
1
Catalogue page
KS-1025
Cutting values
SW-1105

Technical characteristics

ap max. 0,4 mm
Cutting data Cutting angle Information - yes
D 6,0 mm
D min. 7,8 mm
Design Left
Designation R/LS08.4746.02
F 4,65 mm
S 3,5 mm
suitable for holder 608
t max. 1,2 mm
