Cutting insert RS08.3046.02 C reverse turning tmax=1.3 mm Dmin=7.8 mm AL41F

Cutting insert RS08.3046.02 C reverse turning tmax=1.3 mm Dmin=7.8 mm AL41F
Cutting insert RS08.3046.02 C reverse turning tmax=1.3 mm Dmin=7.8 mm AL41F Cutting insert RS08.3046.02 C reverse turning tmax=1.3 mm Dmin=7.8 mm AL41F
Price
24,40 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

Carbide indexable cutting inserts MINI-CUT

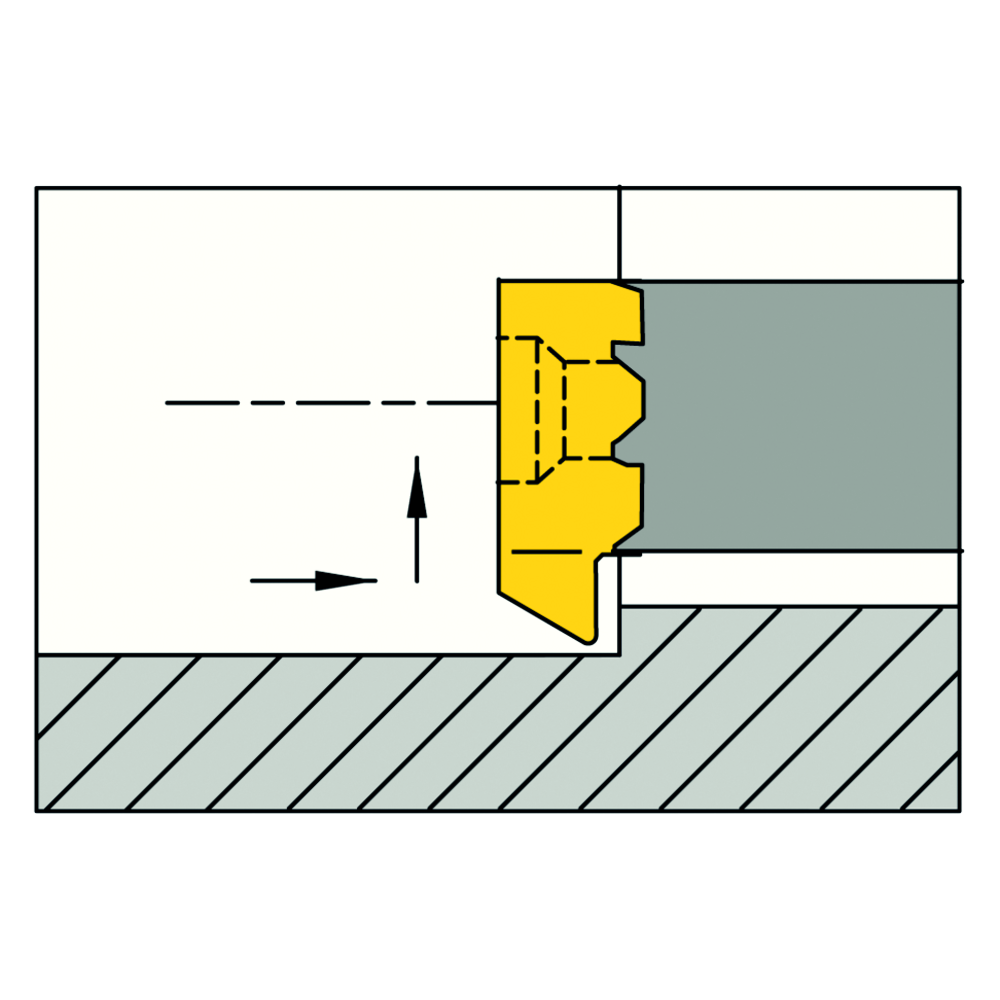

Reverse turning (internal)
  • Carbide AL41F TiAIN-coated
  • Ap max. = maximum cutting depth
  • ST = tool holder front face
  • R = right-hand, as shown
  • L = left-hand, mirror image

Article no./ATORN no.
3050500001
Vendor Article no.
RS08.3046.02AL41F
Packaging unit
1
Catalogue page
KS-1026
Cutting values
SW-1105

Technical characteristics

ap max. 0,6 mm
Cutting data Cutting angle Information - yes
D 6,0 mm
D min. 7,8 mm
Design Right
Designation R/LS08.3046.02
F 4,65 mm
S 3,5 mm
suitable for holder 608
t max. 1,3 mm
STEP Download
Catalogue page Download
Cutting values Download
