Clamp mounting 608.0016.1E steel 16x22 mm cutting insert R/LS08 IC, long

Clamp mounting 608.0016.1E steel 16x22 mm cutting insert R/LS08 IC, long
Clamp mounting 608.0016.1E steel 16x22 mm cutting insert R/LS08 IC, long
Price:
122,50 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Tool holder MINI-CUT
  • With internal cooling
  • For recess turning, internal turning and thread cutting (internal) from Ø 7.8 mm
  • Spare clamping screws available on request
  • FLEXO tool holder, variable clamping range from ... to ... mm (see table Clamping Length = "L4"
  • FLEXO tool holder for HM cutting inserts R/LS 08 and R/LS 11
  • Suitable FLEXO steel tool holder

Steel tool holder, long
Article no./ATORN no.
3050110001
Vendor Article no.
608.0016.1E.ST
Packaging unit
1
Catalogue page
KS-1023

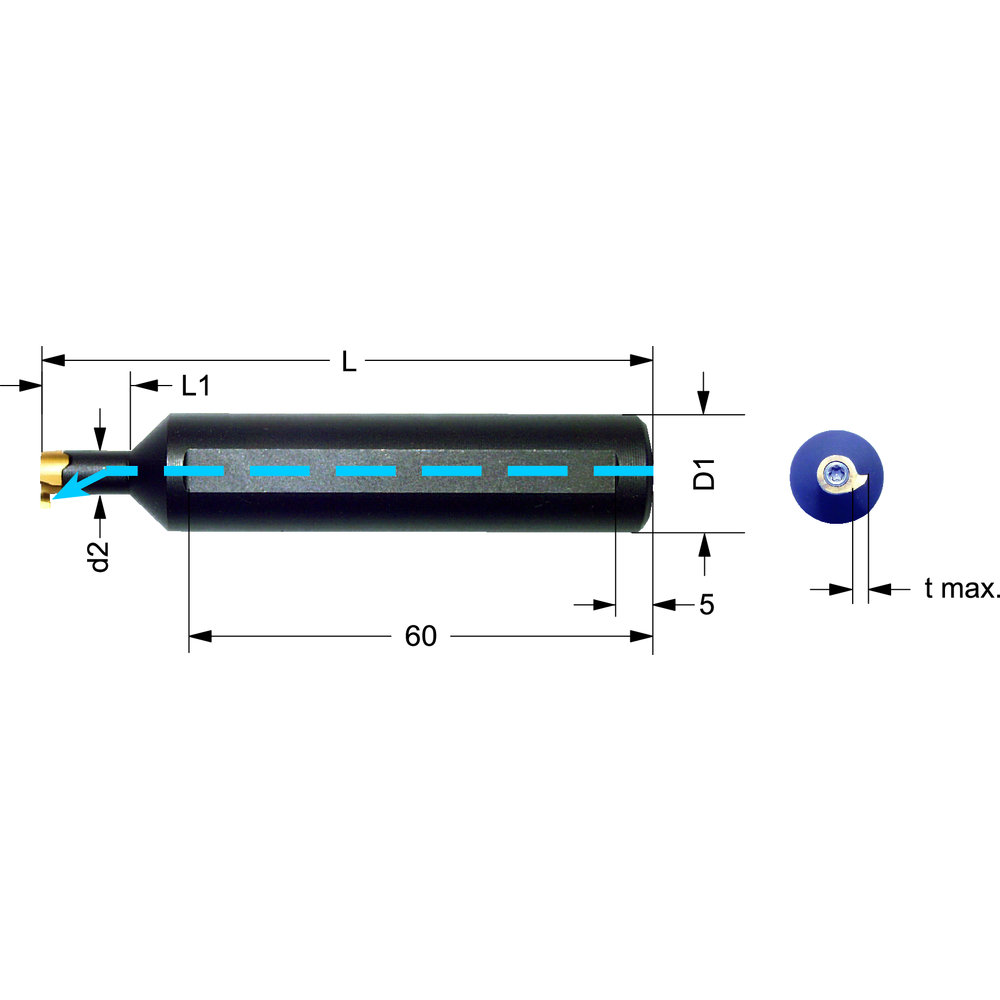

Technical characteristics

Coolant design Internal axial
D min. 8 mm
D1 16 mm
D2 6 x 7 mm
Designation 608.0016.1E.ST
L 90 mm
L1 22 mm
Shank Straight with driving plane
t max. 1,0 mm
t max. R/LS08
