Cutting insert NPU.0198.01.1 groove DIN6885 fixed 2x1mm (holder NHU)

Cutting insert NPU.0198.01.1 groove DIN6885 fixed 2x1mm (holder NHU)
Cutting insert NPU.0198.01.1 groove DIN6885 fixed 2x1mm (holder NHU)
Price:
51,30 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Cutting inserts for keyway slotting
  • Keyway slotting of longitudinal grooves in accordance with DIN 138 and DIN 6885
  • Tolerance class C11/JS9/P9
  • Type NPU, bore Ø from 6 mm
  • Type NP10, bore Ø from 10 mm
  • Type NPV, bore Ø from 22 mm
  • Cutting material: AL41F, TiAlN-coated

Type NPU, tight fit, DIN 6885, tolerance P9
Article no./ATORN no.
3070080198
Vendor Article no.
NPU.0198.01.1/AL41F
Packaging unit
1
Catalogue page
KS-1048
Cutting values
SW-1106

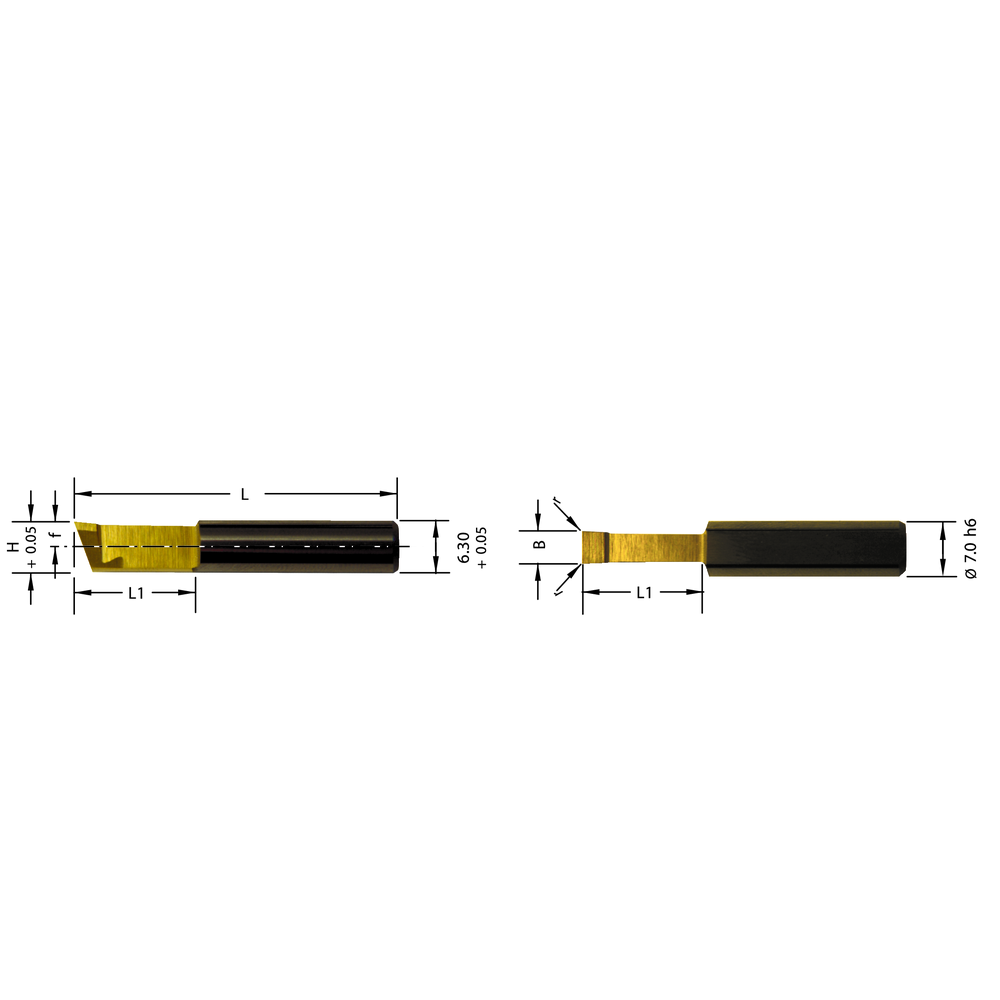

Technical characteristics

Cutting data Cutting angle Information - yes
D min. 6 mm
Designation NPU.0198.01.1
F 2,0 mm
H 5,5 mm
L 38 mm
L1 12,5 mm
Nominal dimension 1,98 mm
R 0,1 mm
t max. 1,0 mm
t max. NHU
Tolerance class P9
W 2 mm
