T-slot milling cutter HSS-E DIN851NR 125x6mm Z=4

Special offer
29,08 €
(72,70 € catalogue price / 60% saved)
prices excl. vat plus shipping costs

Stock status
Only 2 pieces left!

Ordered by 18:00 - delivered tomorrow.

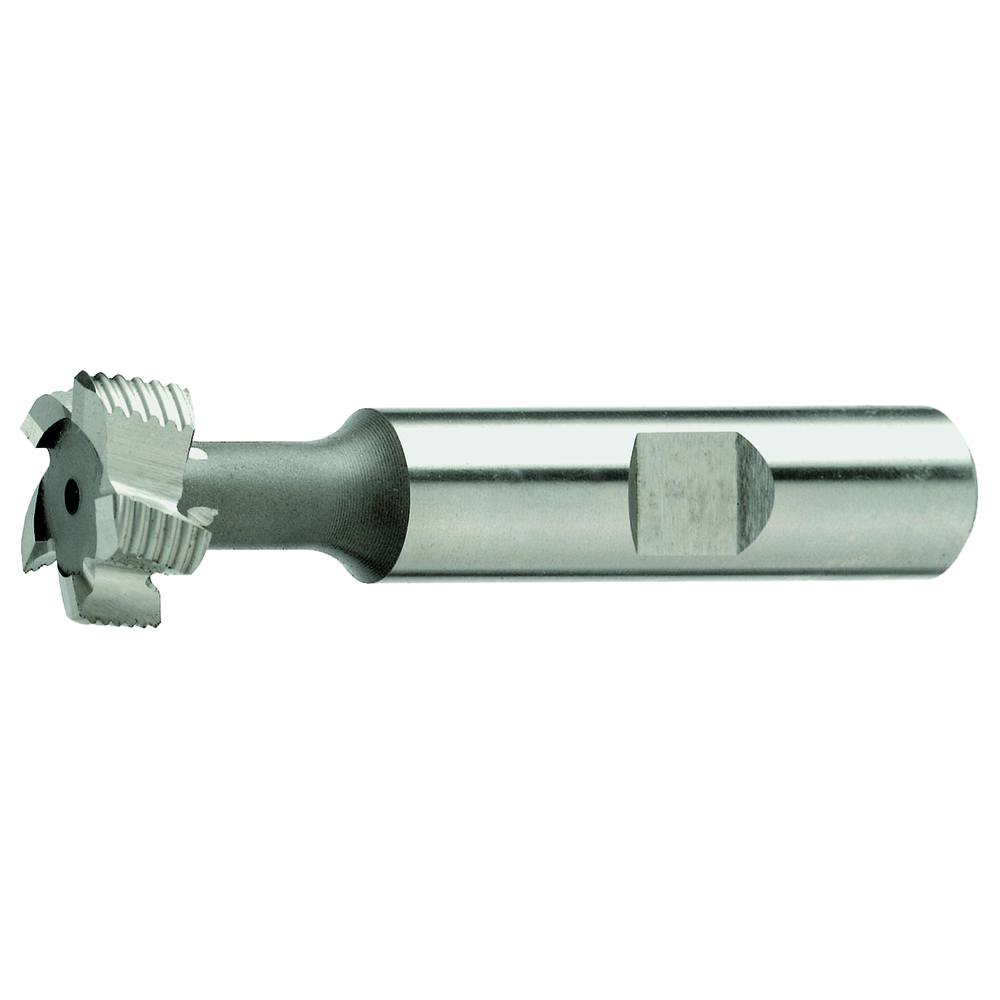

T-slot milling cutter
  • With cross-cut toothing
  • * = not DIN-compliant

Article no./ATORN no.
2913670125
Packaging unit
1
Catalogue page
Cutting values

Technical characteristics

Application direction milling Lining
Coating uncoated
Cutting data Cutting angle Information - yes
Cutting material HSSE
D 12,5 mm
D1 10 mm
D3 5 mm
DIN 851
Feed fz steel < 1000 N/mm² 0,01 mm/tooth
L 57 mm
L2 17,0 mm
Suitable for groove width M6
Tolerance of cutting edge diameter d11
Tolerance of shank diameter h6
Tool holding device HB parallel shank
Type NR
W 6 mm
Z 6 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 700 N/mm²

very suitable
suitable
