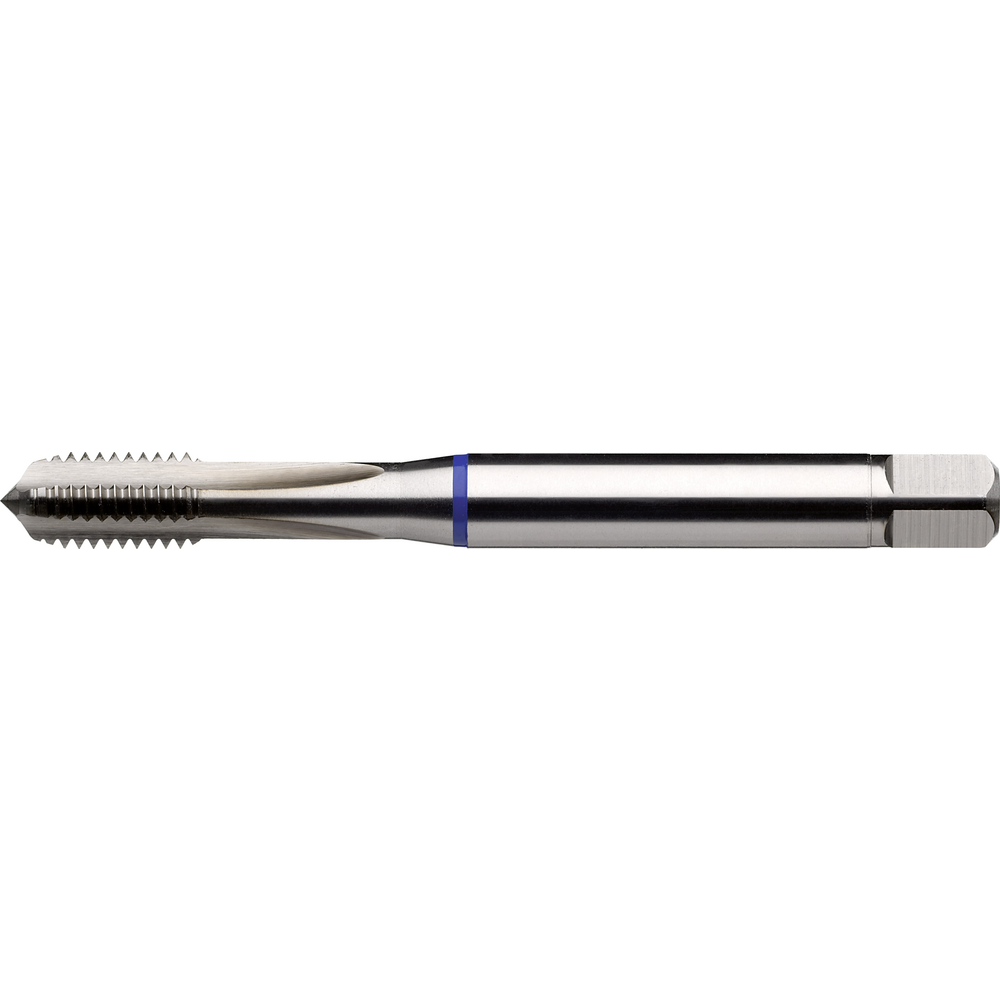

Machine tap HSS-E DIN371C M2 blind/through-hole

Machine tap HSS-E DIN371C M2 blind/through-hole
Machine tap HSS-E DIN371C M2 blind/through-hole Machine tap HSS-E DIN371C M2 blind/through-hole
Price:
26,70 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Machine tap, without spiral point
  • ISO 6H metric thread
  • Straight-fluted
  • Type C, 2-3 thread chamfer
  • DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E
  • For blind-hole and through-hole threads
  • Possible thread depth 1.5xD

Machine tap, without spiral point
  • ISO 6H metric thread
  • Straight-fluted
  • Type C, 2-3 thread chamfer
  • DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E
  • For blind-hole and through-hole threads
  • Possible thread depth 1.5xD

Article no./ATORN no.
1351500020 / 10470868
Packaging unit
1
Catalogue page

Technical characteristics

C 2,1 mm
C 2,1 mm
Coating uncoated
Coating uncoated
Coolant supply External
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D M2
D M2
D1 2,8 mm
D1 2,8 mm
DIN 371
DIN 371
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 1
Eignung Titan/Nickel/Super gesamt 3
fitness hartl total 3
Form/Chamfer C
Form/Chamfer C
L 45 mm
L 45 mm
L1 4,5 mm
L1 4,5 mm
L2 - mm
L2 - mm
Max. thread depth 1,5xD
Max. thread depth 1,5xD
Nenndurchmesser 2 mm
Passend für Gewinde M2-M36
Pitch 0,4 mm
Pitch 0,4 mm
Surface Uncoated
Surface Uncoated
Tapping hole Ø 1,6 mm
Tapping hole Ø 1,6 mm
Thread M
Thread M
Thread angle 60 °
Thread angle 60 °
Threaded hole type Clearance/blind hole ≤ 1.5xD
Threaded hole type Clearance/blind hole ≤ 1.5xD
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)
Tolerance of shank diameter h9
Tolerance of shank diameter h9
Toleranz Schaftvierkant h12
Twist angle 0°
Twist angle 0°
Typ P MAX 1000 Control

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass long
brass long
brass short
brass short
bronze long
bronze long
bronze short
bronze short
cast iron GGG
cast iron GGG
plastic
plastic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
