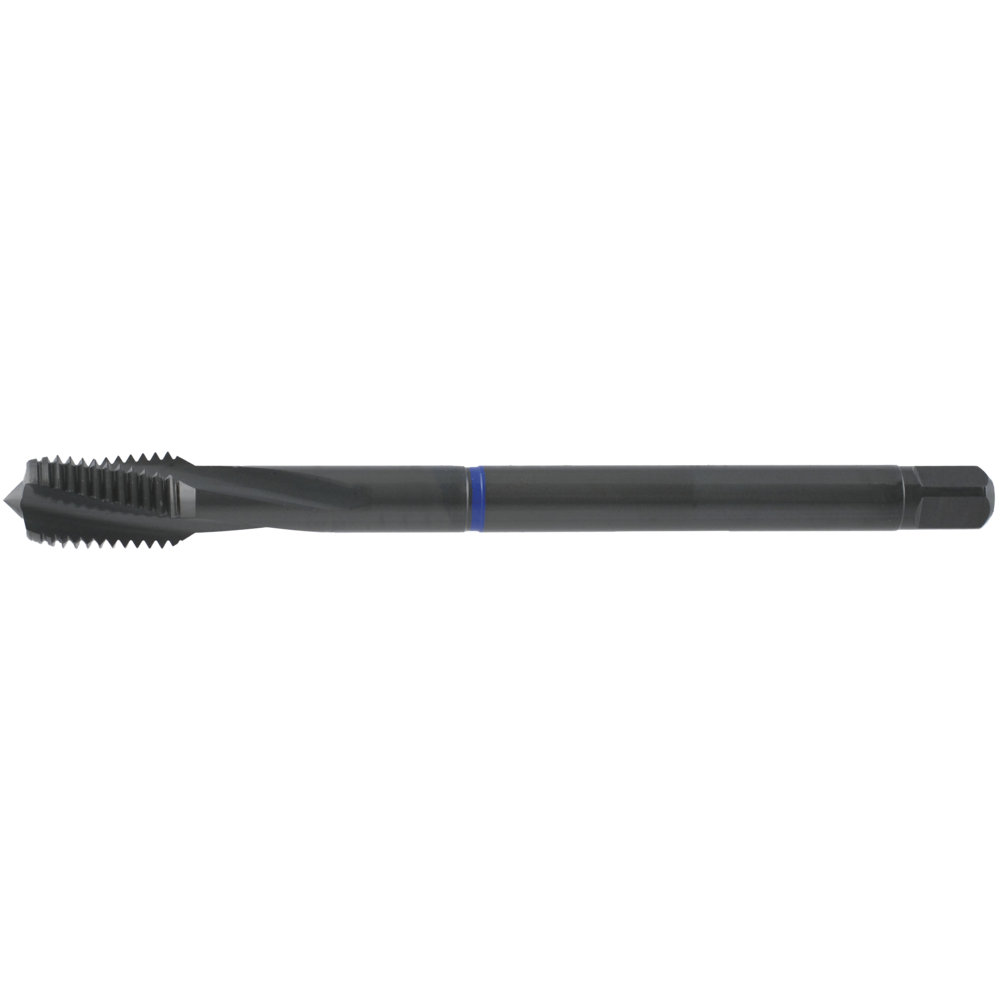

Machine tap HSS-E DIN374C 15°, M5x0,5 blind-hole thread

Machine tap HSS-E DIN374C 15°, M5x0,5 blind-hole thread
Machine tap HSS-E DIN374C 15°, M5x0,5 blind-hole thread Machine tap HSS-E DIN374C 15°, M5x0,5 blind-hole thread
Price:
40,20 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Machine tap, weak-spiralled
  • ISO 6H fine-pitch metric thread
  • 15° RH, spiral-fluted
  • Type C, 2-3 thread chamfer
  • Cutting material: HSS-E, vapour-treated
  • For blind-hole threads
  • Easy chip removal to the rear
  • Possible thread depth 1.5xD

Machine tap, weak-spiralled
  • ISO 6H fine-pitch metric thread
  • 15° RH, spiral-fluted
  • Type C, 2-3 thread chamfer
  • Cutting material: HSS-E, vapour-treated
  • For blind-hole threads
  • Easy chip removal to the rear
  • Possible thread depth 1.5xD

Article no./ATORN no.
1352800505 / 10482285
Packaging unit
1
Catalogue page
KS-0269
Cutting values
SW-0398

Technical characteristics

C 2,7 mm
C 2,7 mm
Coating uncoated
Coating uncoated
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D M 5 mm
D MF 5 mm
D1 3,5 mm
D1 3,5 mm
DIN 374
DIN 374
Form/Chamfer C
Form/Chamfer C
L 70 mm
L 70 mm
L1 5 mm
L1 5 mm
Max. thread depth 1,5xD
Max. thread depth 1,5xD
Pitch 0,5 mm
Pitch 0,5 mm
Surface Vaporised
Surface Vaporised
Tapping hole Ø 4,50 mm
Tapping hole Ø 4,50 mm
Thread MF
Thread MF
Thread angle 60 °
Thread angle 60 °
Threaded hole type Stud hole
Threaded hole type Stud hole
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)
Twist angle 15°
Twist angle 15°

Usage characteristics

cast iron GGG
cast iron GGG
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
