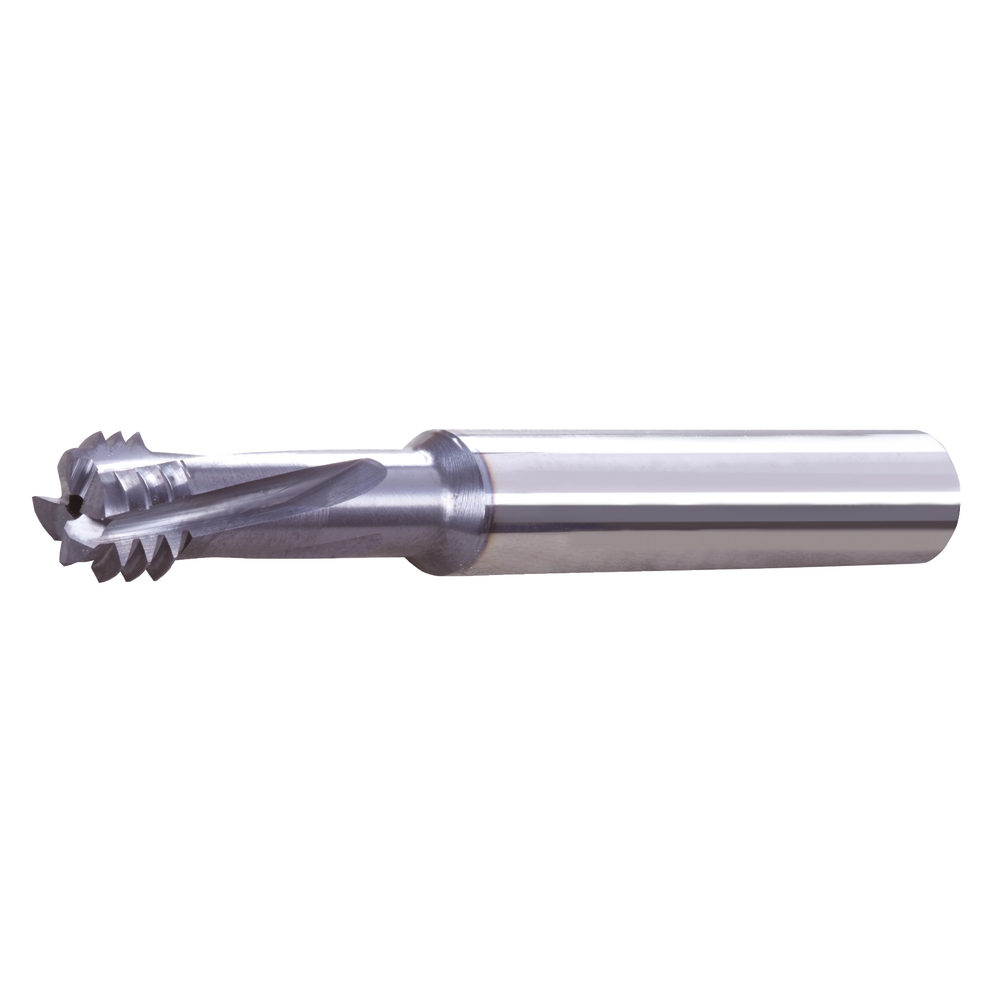

Solid carbide drilling and thread milling cutter ISO 1,0, DMT08047C14 IC, TiAlN

Solid carbide drilling and thread milling cutter ISO 1,0, DMT08047C14 IC, TiAlN
Solid carbide drilling and thread milling cutter ISO 1,0, DMT08047C14 IC, TiAlN Solid carbide drilling and thread milling cutter ISO 1,0, DMT08047C14 IC, TiAlN
Individual price after or registration
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Drilling Thread milling Chamfering

DMT drilling and thread milling cutter
  • High-performance tool with IC for manufacturing female threads
  • Using a circular motion, you cut the tapping hole, mill the thread and countersink in a single operation
  • Eliminates the need to pre-drill the tapping hole
  • Fast turnaround reduces your machine times
  • Suitable for through-holes and blind bores
  • No time wasted on tool changes as only one tool is used for drilling, thread milling and chamfering
  • Full profile tool
  • Anticlockwise spindle rotation, code M04:
    Left-hand thread = reverse rotation
    Right-hand thread = synchronous rotation
  • Can be used with a large variety of materials
  • Thread depth 2 x D
  • Cutting material: AMT7 solid carbide, multi-layer TiAlN coating for universal applications

Metric, full profile, ISO 60°, internal
Article no./ATORN no.
2581000060 / 11940435
Packaging unit
1
Catalogue page
KS-0600
Cutting values
SW-0795

Technical characteristics

Coolant supply Internal axial
Cutting data Cutting angle Information - yes
Cutting material Solid carbide

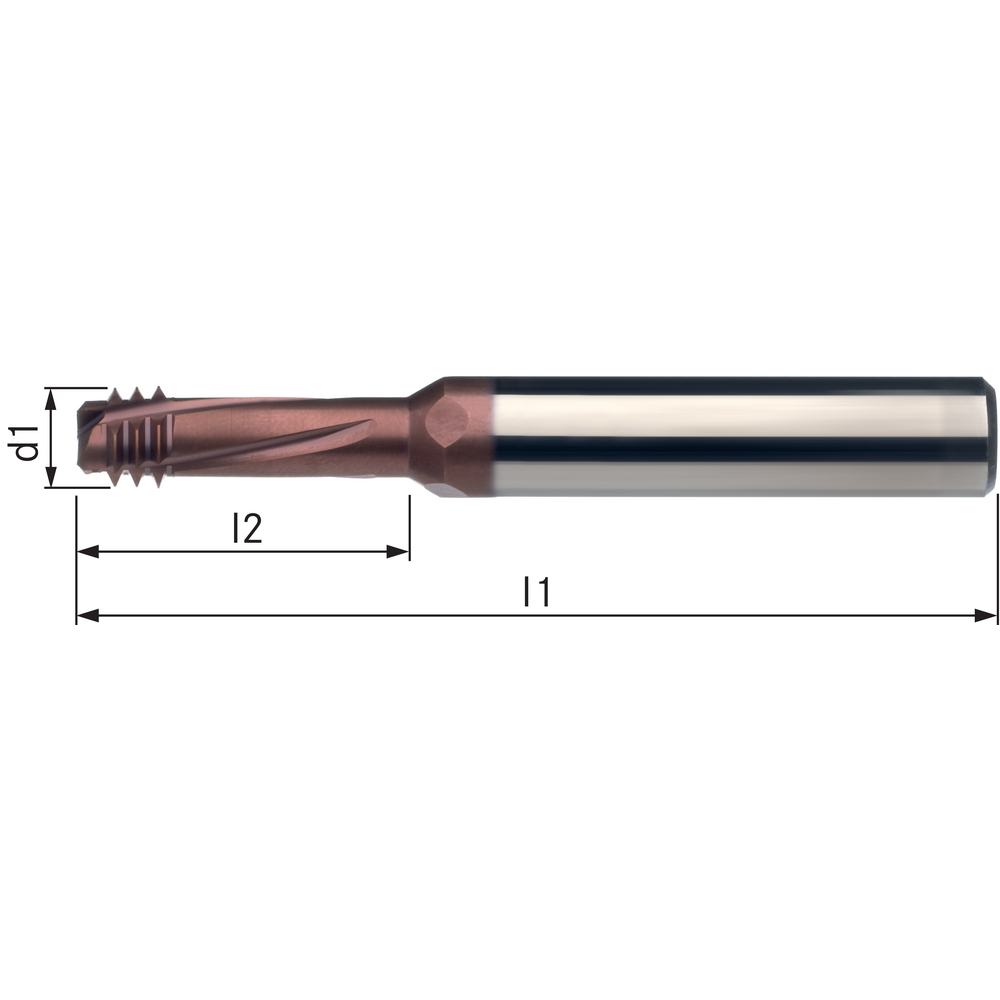

D 4.7 mm
D1 8 mm
Designation DMT08047C14 1,0 ISO
Feed fz steel < 1000 N/mm² 0,02 mm/tooth
L 64 mm
L1 14 mm
Pitch 1 mm
Standard thread M 6 - M 9
Tool holding device Cylinder shank
Z 3 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
