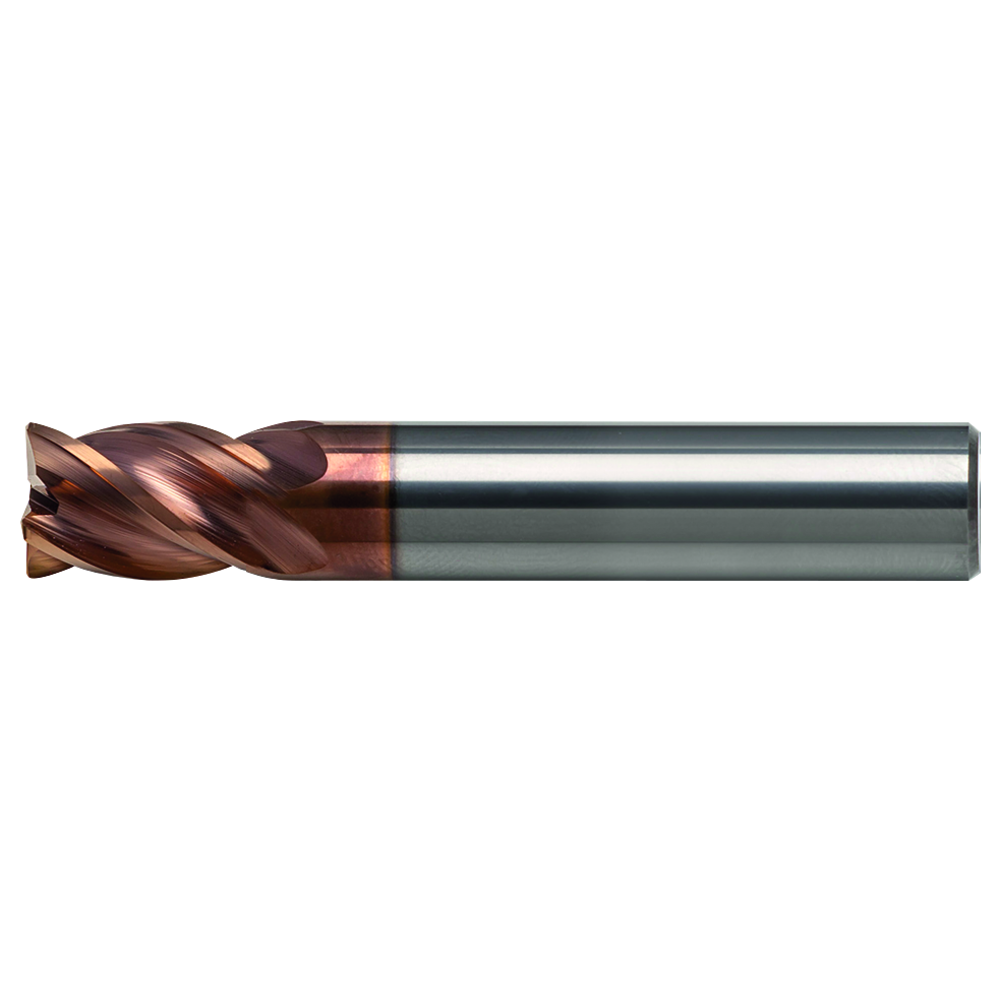

Solid carbide roughing cutter 3mm R=0,2mm Z=4 HA, short, TiAlN

Solid carbide roughing cutter 3mm R=0,2mm Z=4 HA, short, TiAlN
Solid carbide roughing cutter 3mm R=0,2mm Z=4 HA, short, TiAlN Solid carbide roughing cutter 3mm R=0,2mm Z=4 HA, short, TiAlN
Price
48,50 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 18:00 - delivered tomorrow.

For machining titanium and stainless steel

VHVTR/W 4/5 end milling cutter
  • Cutting material: ultra-fine grain solid carbide, TiAlSiN-coated
  • Special pre-treatment and finishing treatment due to micro radiation
  • New chip flute geometry for enhanced cooling and chip flow
  • For wet machining, high material removal rate

Short Z4
Article no./ATORN no.
2550880030
Vendor Article no.
VHVTR40300510603S
Packaging unit
1
Catalogue page
KS-0491
Cutting values
SW-0747

Technical characteristics

Application direction milling Lining, ramping and drilling
Coating TiAlSiN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3,0 mm
D1 6 mm
D3 2,8 mm
Design DIN 6535-HB
Feed fz stainless steel ferrit./martens. 0,015 mm/tooth
Feed fz stainless steel ferrit./martens. 0,020 mm/tooth
L 51 mm
L1 5 mm
L2 7 mm
R 0,2 mm
Tolerance of cutting edge diameter e8
Tolerance of shank diameter h9
Tool holding device HA parallel shank
Twist angle 35° | 38°
Z 4 pc.

Usage characteristics

stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
STEP Download
DXF Download
Catalogue page Download
Cutting values Download
