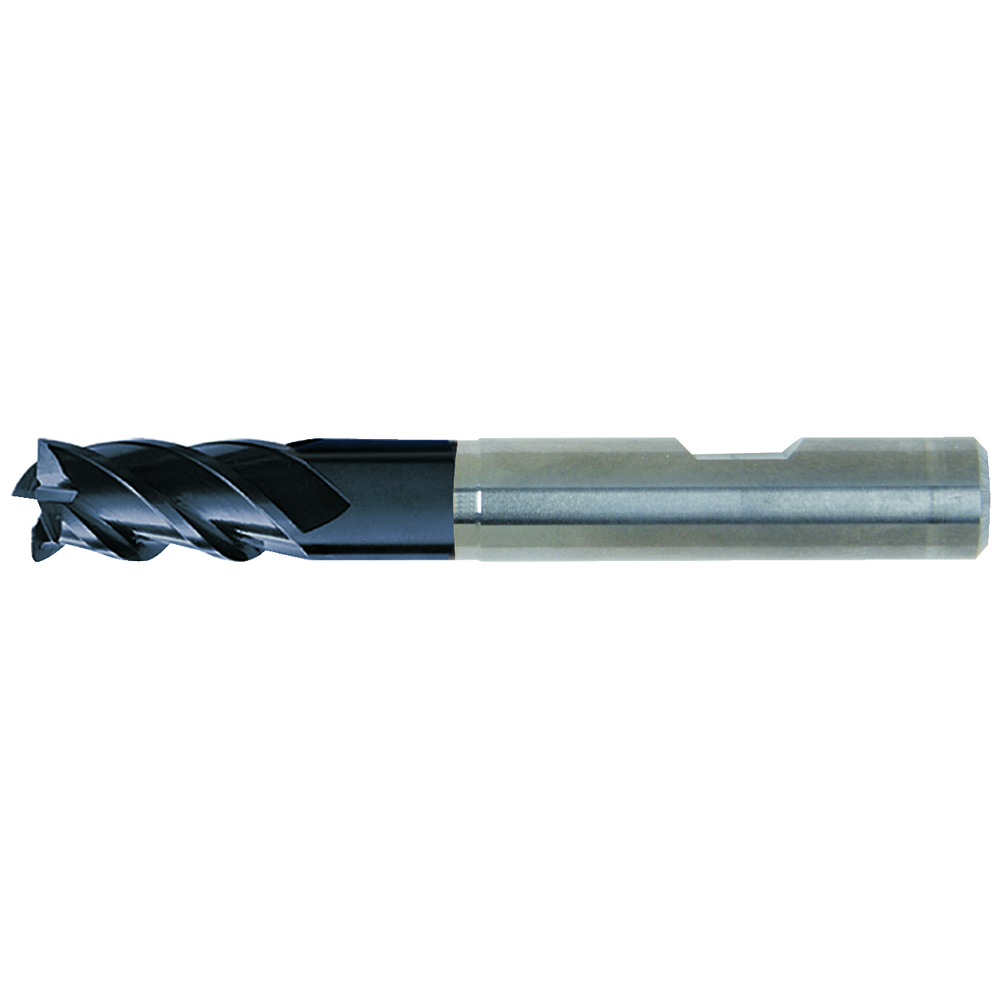

Solid carbide end milling cutter 40° 3mm clearance Z=4 HB, AlCrN

Solid carbide end milling cutter 40° 3mm clearance Z=4 HB, AlCrN
Solid carbide end milling cutter 40° 3mm clearance Z=4 HB, AlCrN Solid carbide end milling cutter 40° 3mm clearance Z=4 HB, AlCrN
Price:
34,10 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

EXCLUSIVE item: The all-rounder!

End milling cutters
  • With clearance
  • Irregular pitch to minimise vibrations
  • CNC repetition precision to within 10 μm
  • For milling stainless steel, machining exotic materials, and general applications
  • Especially suitable for groove milling and lateral machining

Article no./ATORN no.
2541210030
Vendor Article no.
H11 0300 057 06
Packaging unit
1
Catalogue page
KS-0484
Cutting values
SW-0744

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HPC
Center cutting Ja
Coating AlCrN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3,0 mm
D1 6 mm
D3 2,80 mm
Feed for grooving fz steel < 1000 mm² 0,016 mm/tooth
Feed for side milling fz steel < 1000 mm² 0,020 mm/tooth
L 57 mm
L1 9 mm
L2 15 mm
Tolerance of cutting edge diameter h10
Tolerance of shank diameter h6
Tool holding device HB parallel shank
Twist angle 40° (rechts)
Z 4 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
