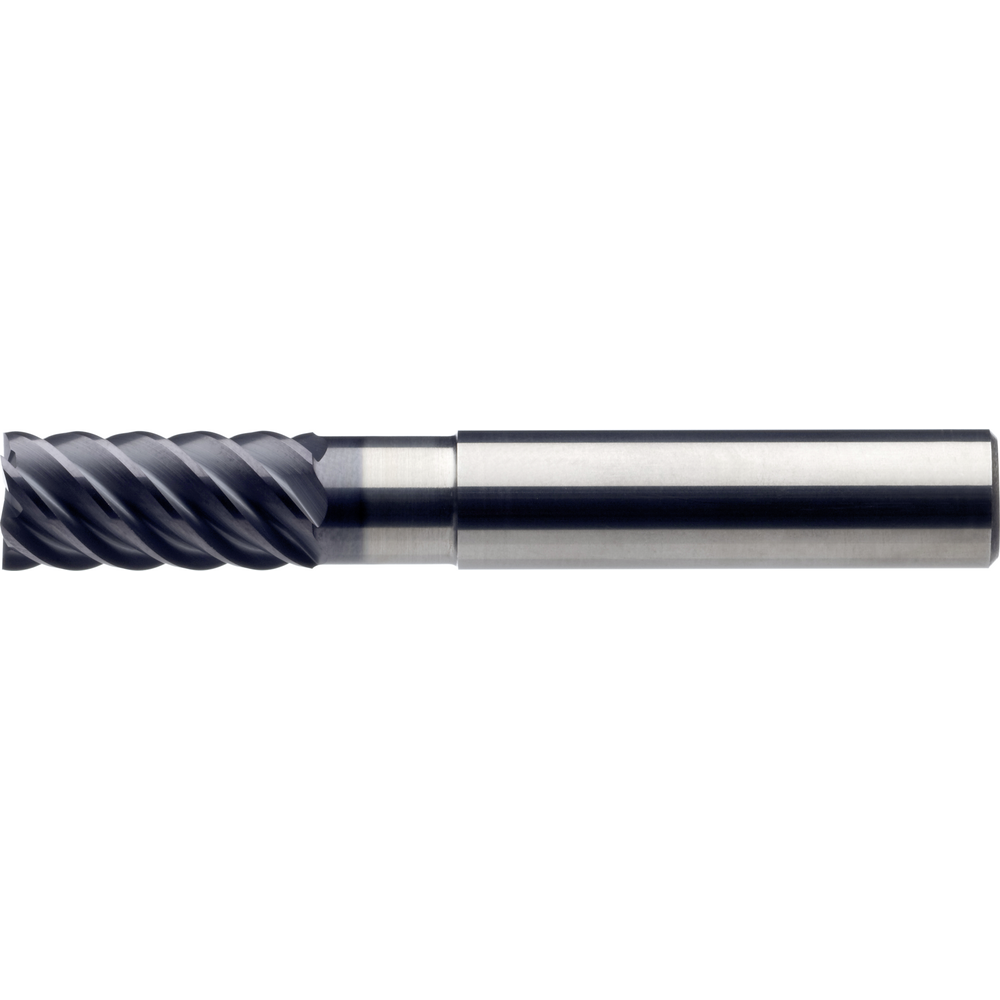

Solid carbide multi-flute milling cutter 50° 3mm, Z=6 Z=2 RockTec-52

Price:
33,10 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available

Ordered by 19:30 - delivered tomorrow.

RockTec 52 multi-flute milling cutter
  • For machining materials up to 52 HRC
  • Edge protection chamfer
  • Cutting material: ultra-fine grain solid carbide
  • Rake angle 3°

Standard
Article no./ATORN no.
2570110030 / 11860281
Packaging unit
1
Catalogue page
Cutting values

Technical characteristics

Application direction milling Lining, ramping and drilling
Center cutting Yes
Coating AlTiN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3 mm
D1 6 mm
D3 2,8 mm
Durchmesser max. 20 mm
Durchmesser min. 3 mm
Durchmesser min./max. 3-20 mm
Edge protection for chamfer angle 11,5° °
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 3
Eignung Titan/Nickel/Super gesamt 3
Feed for side milling fz steel < 1400 mm² 0,02 mm/tooth
fitness hartl total 2
Form Corner
Freistellungslänge 20 mm
fz Stahl 1300 0,027 mm
Geeignet für Werkstoffgruppe H 2
Geeignet für Werkstoffgruppe K 1
Geeignet für Werkstoffgruppe M 2
Geeignet für Werkstoffgruppe N 3
Geeignet für Werkstoffgruppe P 1
Geeignet für Werkstoffgruppe S 3
L 50 mm
L1 8 mm
L2 20 mm
Oberfläche RockTec 52
Overall length Normal
Rake angle 3 °
Tolerance of shank diameter h6
Tool holding device HA parallel shank
Twist angle 50°
Type N
Z 6 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
hardened steel ≤ 55 HRC
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
