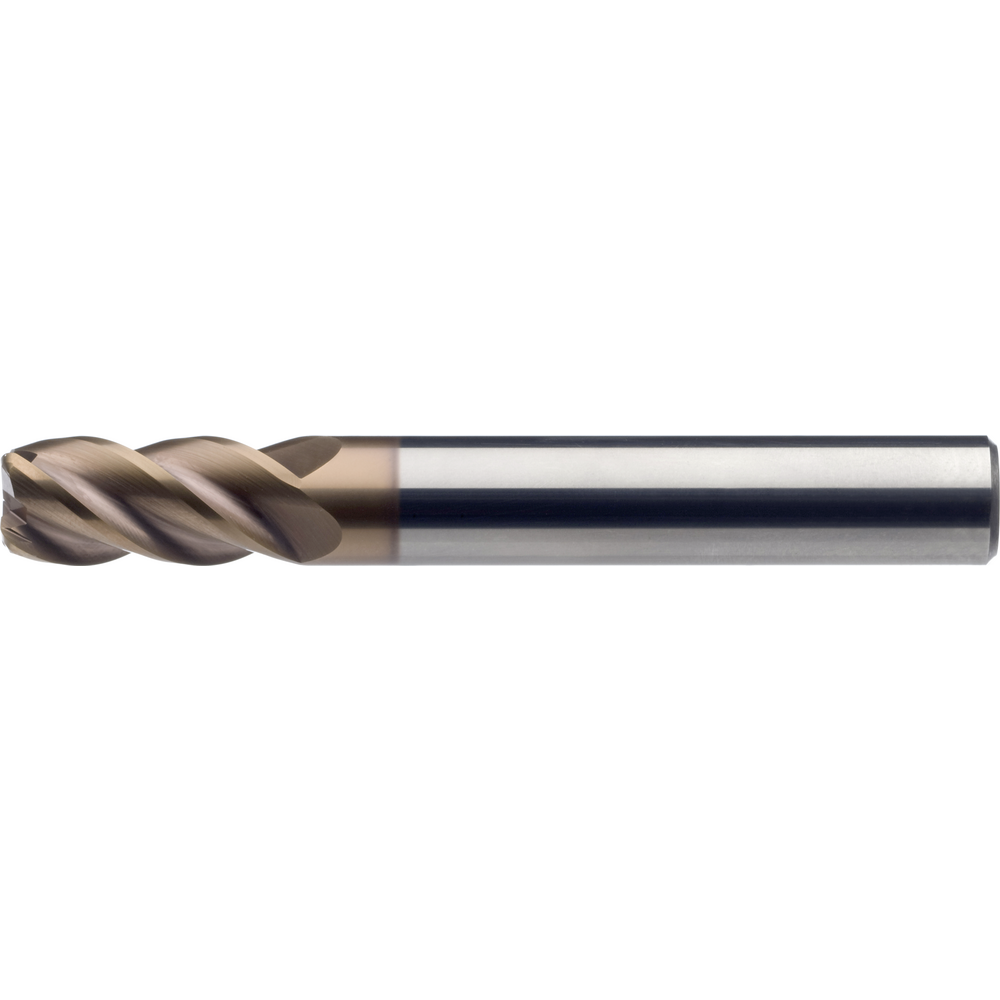

Solid carbide torus cutter 40° 3mm, R=0,3mm, Z=4 RockTec-65

Solid carbide torus cutter 40° 3mm, R=0,3mm, Z=4 RockTec-65
Solid carbide torus cutter 40° 3mm, R=0,3mm, Z=4 RockTec-65 Solid carbide torus cutter 40° 3mm, R=0,3mm, Z=4 RockTec-65
Price:
54,40 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Torus milling cutter RockTec 65
  • Long-necked version for machining materials up to 65 HRC
  • Cutting edge tolerance: at Ø 0.1 – 0.7 mm = 0/– 0.012 mm, at Ø 0.8 – 3.0 mm = 0/– 0.020 mm
  • Radius tolerance: 0/-0.01 mm
  • Cutting material: ultra-fine grain solid carbide
  • Rake angle -5°∼-7°

Article no./ATORN no.
2570160001 / 11860607
Packaging unit
1
Catalogue page
KS-0518
Cutting values
SW-0773

Technical characteristics

Application direction milling Lining, ramping and drilling
Center cutting Yes
Coating TiSiN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3 mm
D1 6 mm
Durchmesser max. 20 mm
Durchmesser min. 3 mm
Durchmesser min./max. 3-20 mm
Edge radius 0,3 mm
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 3
Eignung Titan/Nickel/Super gesamt 3
Feed for side milling fz hardened steel ≥ 60 HRc 0,015 mm/tooth
fitness hartl total 1
Form Torus
fz hard 52 HRC 0,027 mm
Geeignet für Werkstoffgruppe H 1
Geeignet für Werkstoffgruppe K 3
Geeignet für Werkstoffgruppe M 3
Geeignet für Werkstoffgruppe N 3
Geeignet für Werkstoffgruppe P 1
Geeignet für Werkstoffgruppe S 3
L 50 mm
L1 9 mm
Oberfläche RockTec 65
R 0,3 mm
Tolerance of shank diameter h6
Tool holding device HA parallel shank
Twist angle 40°
Type H
Z 4 pc.

Usage characteristics

hardened steel < 60 HRc
hardened steel ≤ 55 HRC
hardened steel ≤ 65 HRC
steel < 1400 N/mm²
superalloys Fe/NiCo based < 30 HRC

very suitable
suitable
