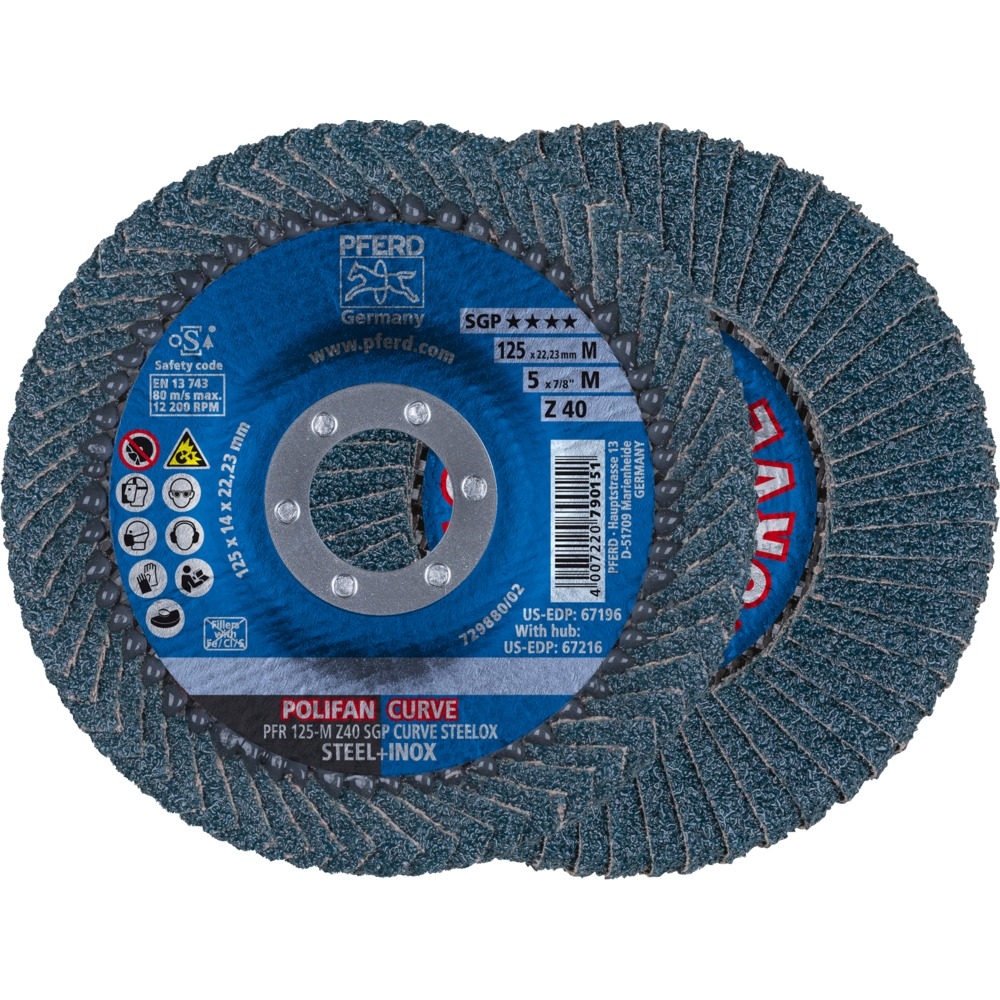

Flap disc 125x14x22,23mm K40 Polifan Curve

Price
11,90 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
The innovation for fillet weld machining

POLIFAN CURVE flap discs
  • Innovation for fillet weld machining
  • Unique radial design (PFR)
  • Special configuration of the abrasive flaps
  • Precise and optimum regrinding of the fillet weld geometry
  • Outstanding service life when working on fillet welds
  • High abrasion capacity due to unrivalled quick, aggressive grinding
  • Dimensional stability for high-quality machining results
  • Optimum utilisation of the grinding material in the radius
  • Grinding material: Zirconium corundum Z
  • Machinable materials: Steel, stainless steel
  • Operation: Fillet seam grinding, chamfering, and deburring
  • Best results are achieved on powerful angle grinders.
  • Version M for filet seam radii > 5 mm
    Version L for filet seam radii > 8 mm
  • Unit prices when purchased in packs

SGP Zirkon-Curve
  • Grinding material: Zirconium corundum Z
  • For steel machining

The innovation for fillet weld machining

POLIFAN CURVE flap discs
  • Innovation for fillet weld machining
  • Unique radial design (PFR)
  • Special configuration of the abrasive flaps
  • Precise and optimum regrinding of the fillet weld geometry
  • Outstanding service life when working on fillet welds
  • High abrasion capacity due to unrivalled quick, aggressive grinding
  • Dimensional stability for high-quality machining results
  • Optimum utilisation of the grinding material in the radius
  • Grinding material: Zirconium corundum Z
  • Machinable materials: Steel, stainless steel
  • Operation: Fillet seam grinding, chamfering, and deburring
  • Best results are achieved on powerful angle grinders.
  • Version M for filet seam radii > 5 mm
    Version L for filet seam radii > 8 mm
  • Unit prices when purchased in packs

SGP Zirkon-Curve
  • Grinding material: Zirconium corundum Z
  • For steel machining

Article no./ATORN no.
6120684005
Vendor Article no.
790151
Packaging unit
10
Catalogue page

Technical characteristics

Aufspannsystem 22,23 mm
Ausführung M (11 mm)
Bohrungs-ø H [Inch] 7/8
Breite 14 mm
D 125 mm
D 125 mm
Durchmesser 125 mm
Fillet weld width > 5 mm
Fillet weld width > 5 mm
Form Radiale Ausführung PFR
Gewicht 1,16 kg
Grain 40
Grain 40
Kehlnahtradius 5 mm
Korngröße 40
Max. RPM 12200 r/min
Rotational speed max. 12.200 r/min
Rotational speed max. 12.200 r/min
S 14 mm
S 14 mm
Schleifmittel Z
Type M
Type M
W 22,23 mm
W 22,23 mm
