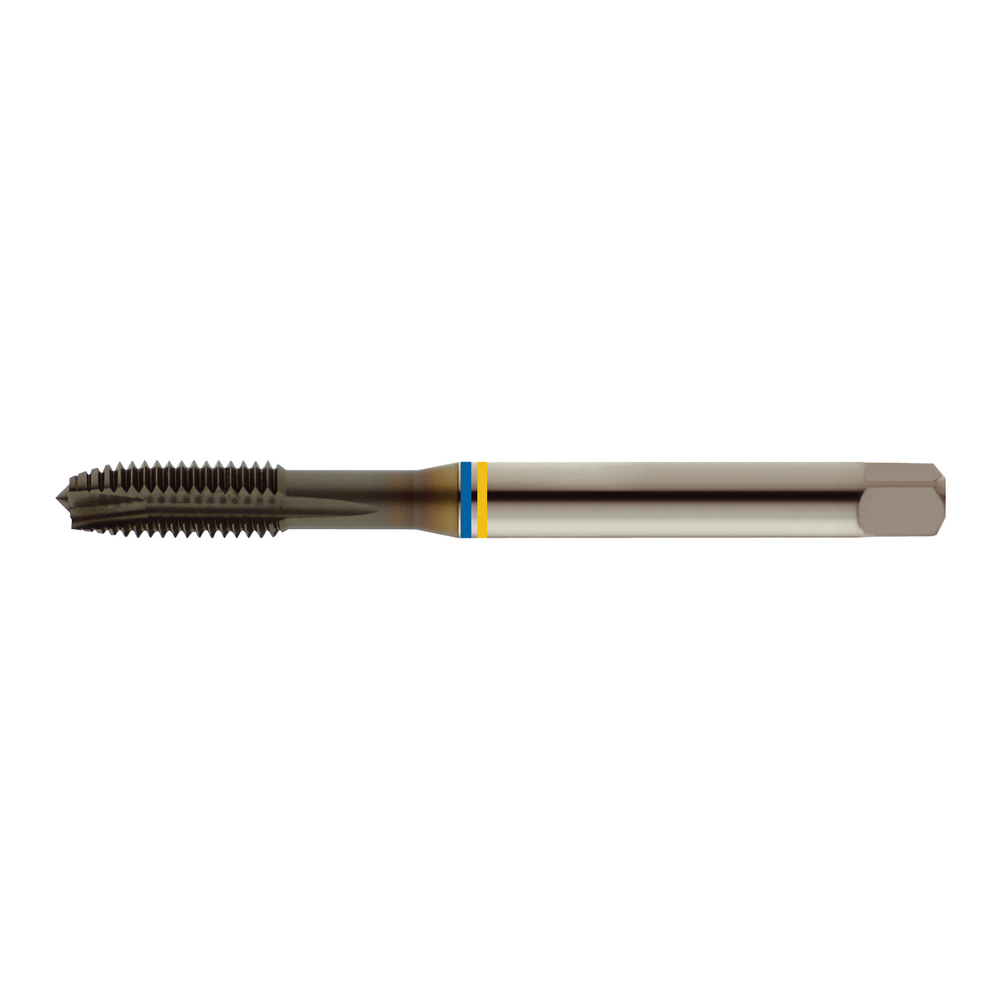

Machine tap HSS-E PM DIN371C, M10 through-hole TiCN

Machine tap HSS-E PM DIN371C, M10 through-hole TiCN
Machine tap HSS-E PM DIN371C, M10 through-hole TiCN Machine tap HSS-E PM DIN371C, M10 through-hole TiCN
Individual price after or registration
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

_ItemDeliveryInfoSaratools missing

Ideal for steel and stainless steel

Machine tap
  • ISO 6H metric thread
  • Straight-fluted with spiral point
  • Type B, 3.5-5 thread chamfer
  • DIN 371 construction dimensions = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E-PM, TiCN-coated
  • For through-hole threads
  • Possible thread depth 3 x D

Article no./ATORN no.
1341961015 / 11290784
Packaging unit
1
Catalogue page
KS-0242
Cutting values
KS-0242

Technical characteristics

C 8 mm
Coating TiCN
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
D M 10 mm
D1 10 mm
DIN 371
Form/Chamfer B
Form/Chamfer C
L 100 mm
L1 20 mm
L2 39 mm
Max. thread depth 3xD
Max. thread depth 2,5xD
Pitch 1.5 mm
Tapping hole Ø 8.50 mm
Thread M
Thread angle 60 °
Threaded hole type Pass-through hole
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps 6H
Twist angle 0°

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
