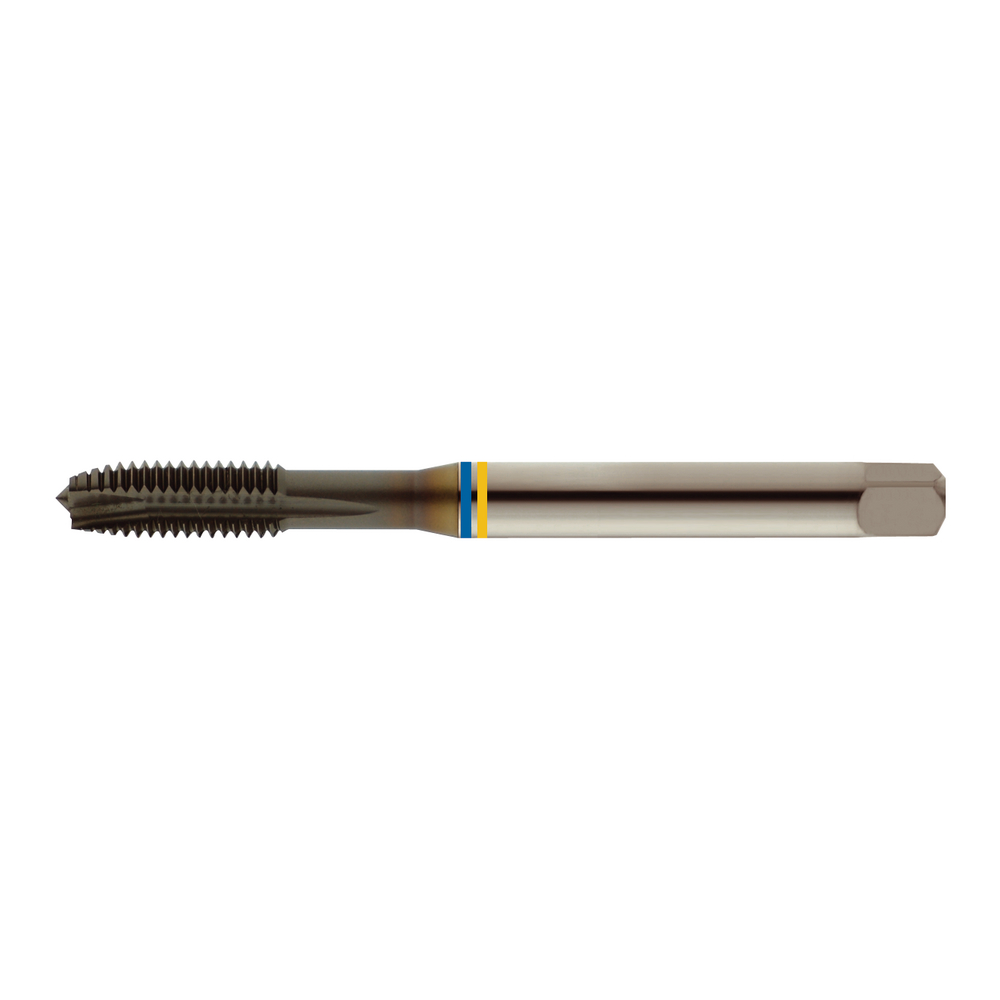

Machine tap HSS-E PM DIN371C, M3 through-hole TiCN

Price:
34,00 €
prices excl. vat plus shipping costs

Stock status
in stock

Ordered by 19:30 - delivered tomorrow.

Ideal for steel and stainless steel

Machine tap
  • ISO 6H metric thread
  • Straight-fluted with spiral point
  • Type B, 3.5-5 thread chamfer
  • DIN 371 construction dimensions = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E-PM, TiCN-coated
  • For through-hole threads
  • Possible thread depth 3 x D

Ideal for steel and stainless steel

Machine tap
  • ISO 6H metric thread
  • Straight-fluted with spiral point
  • Type B, 3.5-5 thread chamfer
  • DIN 371 construction dimensions = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E-PM, TiCN-coated
  • For through-hole threads
  • Possible thread depth 3 x D

Article no./ATORN no.
1341960305 / 11290779
Packaging unit
1
Catalogue page
Cutting values

Technical characteristics

C 2,7 mm
C 2,7 mm
Coating TiCN
Coating TiCN
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
Cutting material HSSE-PM
D M 3 mm
D M 3 mm
D1 3,5 mm
D1 3,5 mm
DIN 371
DIN 371
Form/Chamfer B
Form/Chamfer B
L 56 mm
L 56 mm
L1 6 mm
L1 6 mm
L2 18 mm
L2 18 mm
Max. thread depth 3xD
Max. thread depth 3xD
Pitch 0,5 mm
Pitch 0,5 mm
Tapping hole Ø 2,50 mm
Tapping hole Ø 2,50 mm
Thread M
Thread M
Thread angle 60 °
Thread angle 60 °
Threaded hole type Pass-through hole
Threaded hole type Pass-through hole
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)
Twist angle
Twist angle

Usage characteristics

stainless steel austenitic
stainless steel austenitic
stainless steel duplex
stainless steel duplex
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²
titanium alloys
titanium alloys

very suitable
suitable
