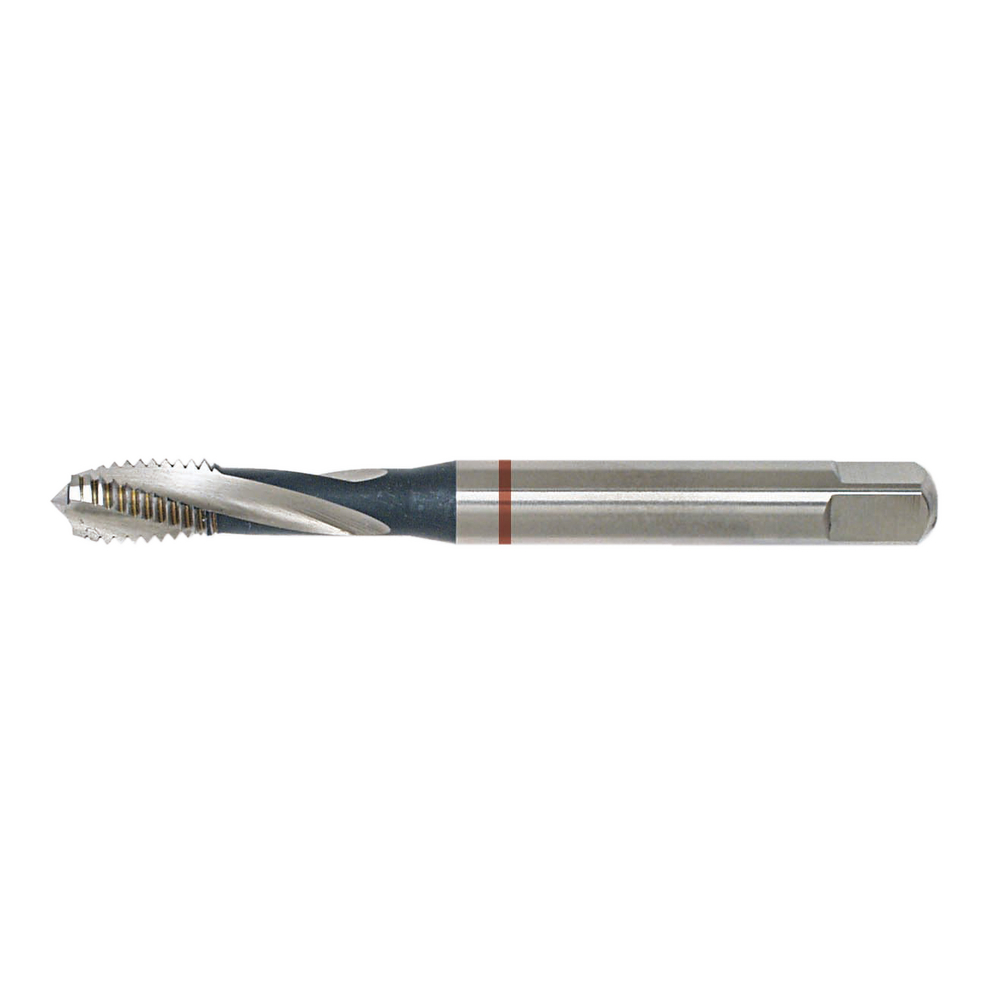

Machine tap HSS-E PM DIN371C 15°, M3 blind-hole thread

Machine tap HSS-E PM DIN371C 15°, M3 blind-hole thread
Machine tap HSS-E PM DIN371C 15°, M3 blind-hole thread Machine tap HSS-E PM DIN371C 15°, M3 blind-hole thread
Price:
36,20 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
For titanium and superalloys

Machine tap
  • Metric ISO 6H thread
  • Form D, 3.5-5 thread chamfer, 20°, spiral-fluted
  • DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E-PM
  • For blind-hole threads, easy chip removal to the rear
  • Possible thread depth 2.5 x D

For titanium and superalloys

Machine tap
  • Metric ISO 6H thread
  • Form D, 3.5-5 thread chamfer, 20°, spiral-fluted
  • DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E-PM
  • For blind-hole threads, easy chip removal to the rear
  • Possible thread depth 2.5 x D

Article no./ATORN no.
1341920030 / 11290753
Packaging unit
1
Catalogue page

Technical characteristics

C 2,7 mm
C 2,7 mm
Coating uncoated
Coating uncoated
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
Cutting material HSSE-PM
D M 3 mm
D M 3 mm
D1 3,5 mm
D1 3,5 mm
DIN 371
DIN 371
Form/Chamfer D
Form/Chamfer D
L 56 mm
L 56 mm
L1 10 mm
L1 10 mm
L2 18 mm
L2 18 mm
Max. thread depth 2,5xD
Max. thread depth 2,5xD
Pitch 0,5 mm
Pitch 0,5 mm
Tapping hole Ø 2,50 mm
Tapping hole Ø 2,50 mm
Thread M
Thread M
Thread angle 60 °
Thread angle 60 °
Threaded hole type Stud hole
Threaded hole type Stud hole
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)
Twist angle 20°
Twist angle 20°

Usage characteristics

superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys
titanium alloys

very suitable
suitable
