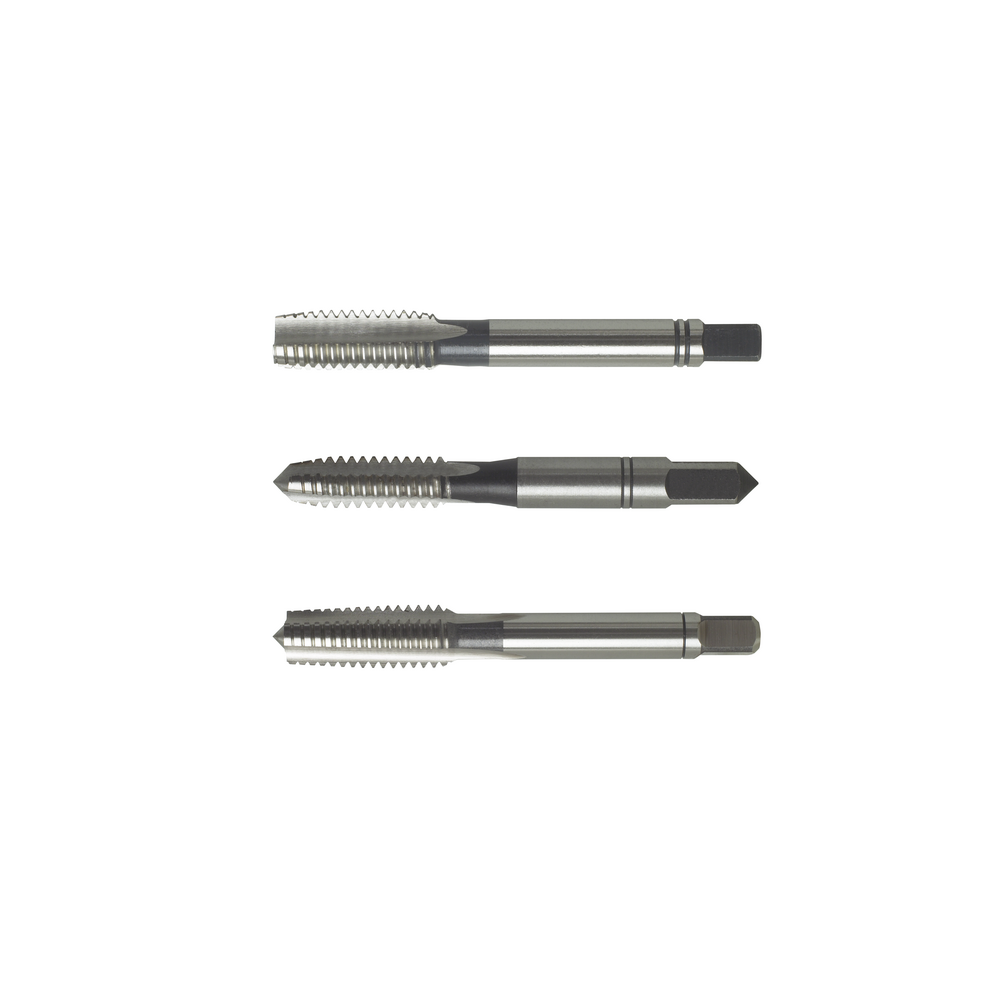

Hand tap HSS DIN352 set UNC 3-48 blind/through-hole

Hand tap HSS DIN352 set UNC 3-48 blind/through-hole
Hand tap HSS DIN352 set UNC 3-48 blind/through-hole Hand tap HSS DIN352 set UNC 3-48 blind/through-hole
Price:
57,90 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Hand taps
  • UNC (unified national standard coarse-pitch thread)
  • 3 pcs set consisting of taper tap, second tap and bottom tap
  • Cutting material: HSS
  • For through-hole and blind bore threads

Hand taps
  • UNC (unified national standard coarse-pitch thread)
  • 3 pcs set consisting of taper tap, second tap and bottom tap
  • Cutting material: HSS
  • For through-hole and blind bore threads

Article no./ATORN no.
1301400001 / 10470599
Packaging unit
1
Catalogue page
KS-0293

Technical characteristics

C 2,1 mm
C 2,1 mm
Coating uncoated
Coating uncoated
Coolant supply External
Coolant supply External
Cutting data Cutting angle Information - no
Cutting data Cutting angle Information - no
Cutting material HSS
Cutting material HSS
D 2,52 mm
D 3 in
D UNC 3
D 2,52 mm
D 3 in
D UNC 3
D1 2,8 mm
D1 2,8 mm
Design 3-pcs. set
Design 3-pcs. set
DIN 2181
DIN 2181
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 1
Eignung Titan/Nickel/Super gesamt 3
fitness hartl total 3
Form/Chamfer A/D/C
Form/Chamfer A/D/C
L 40 mm
L 40 mm
L1 9 mm
L1 9 mm
Nominal diameter in inches 3 in
Passend für Gewinde UNC Nr,3-UNC 7/8 Zoll
Pitch 48
Pitch 48
Surface Uncoated
Surface Uncoated
Tapping hole Ø 2,1 mm
Tapping hole Ø 2,1 mm
Thread UNC
Thread UNC
Thread angle 60 °
Thread angle 60 °
Threaded hole type Clearance/blind hole ≤ 3xD
Threaded hole type Clearance/blind hole ≤ 3xD
Tolerance of screw taps 2B
Tolerance of screw taps 2B
Tolerance of shank diameter h9
Tolerance of shank diameter h9
Toleranz Schaftvierkant h12
Twist angle 0°
Twist angle 0°
Type UNI MAX 1000 N/mm²
Type UNI MAX 1000 N/mm²

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass long
brass long
brass short
brass short
bronze long
bronze long
bronze short
bronze short
cast iron GG/GTS
cast iron GG/GTS
cast iron GGG
cast iron GGG
graphite
graphite
plastic
plastic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
