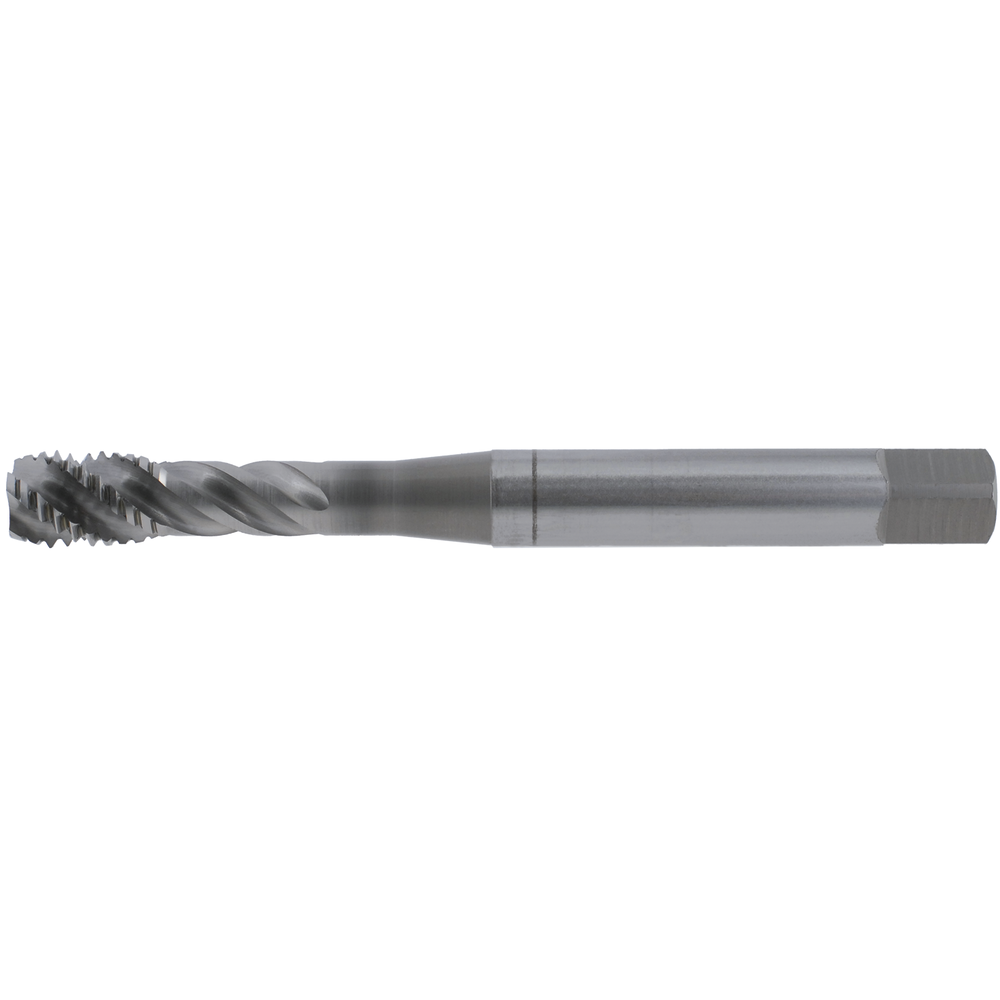

Machine tap HSS-E V3 CC-SFT DIN371C 45°, M2 6HX blind-hole thread CrN

Machine tap HSS-E V3 CC-SFT DIN371C 45°, M2 6HX blind-hole thread CrN
Machine tap HSS-E V3 CC-SFT DIN371C 45°, M2 6HX blind-hole thread CrN Machine tap HSS-E V3 CC-SFT DIN371C 45°, M2 6HX blind-hole thread CrN Machine tap HSS-E V3 CC-SFT DIN371C 45°, M2 6HX blind-hole thread CrN Machine tap HSS-E V3 CC-SFT DIN371C 45°, M2 6HX blind-hole thread CrN Machine tap HSS-E V3 CC-SFT DIN371C 45°, M2 6HX blind-hole thread CrN
Price:
30,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

CC-SFT machine tap
  • ISO 6HX metric thread
  • For stainless steel, aluminium and steel
  • Controllable chips
  • For better thread surfaces
  • Low machining temperature
  • Improved service life
  • For blind bore threads up to 3xD
  • 45°, spiral-fluted
  • Type C, 2.5-thread chamfer
  • Material: HSS-E V3, CrN-coated
  • UNC, UNF and Whitworth thread taps available on request

DIN 371
CC-SFT machine tap
  • ISO 6HX metric thread
  • For stainless steel, aluminium and steel
  • Controllable chips
  • For better thread surfaces
  • Low machining temperature
  • Improved service life
  • For blind bore threads up to 3xD
  • 45°, spiral-fluted
  • Type C, 2.5-thread chamfer
  • Material: HSS-E V3, CrN-coated
  • UNC, UNF and Whitworth thread taps available on request

DIN 371
Article no./ATORN no.
1331060020
Vendor Article no.
48032125
Packaging unit
1
Catalogue page
KS-0258
Cutting values
SW-0398

Technical characteristics

C 2,1 mm
C 2,1 mm
Coating CrN
Coating CrN
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE V3
Cutting material HSSE V3
D M 2 mm
D M 2 mm
D1 2,8 mm
D1 2,8 mm
DIN DIN 371
Form/Chamfer C, 2.5-thread chamfer
Form/Chamfer C
L 45 mm
L 45 mm
L1 8 mm
L1 8 mm
L2 - mm
L2 - mm
Max. thread depth Gewinde 3xD
Pitch 0,4 mm
Pitch 0,4 mm
Spiral angle 45° RH helix angle
Spiral angle 45° RH helix angle
Standard constructional dimensions DIN DIN 371
Standard tolerance ISO 2 6HX
Tapping hole Ø 1,6 mm
Tapping hole Ø 1,6 mm
Thread ISO metric thread
Thread ISO metric thread
Thread angle 60° thread angle °
Thread angle 60 °
Thread angle 60° thread angle °
Thread depth 3xD thread
Threaded hole type for blind-hole threads
Threaded hole type Sackloch
Tolerance of screw taps ISO 2X (6HX)
Twist angle 45° (rechts)

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GG/GTS
cast iron GGG
cast iron GGG
copper Cu-alloy
stainless steel austenitic
stainless steel austenitic
stainless steel duplex
stainless steel duplex
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
