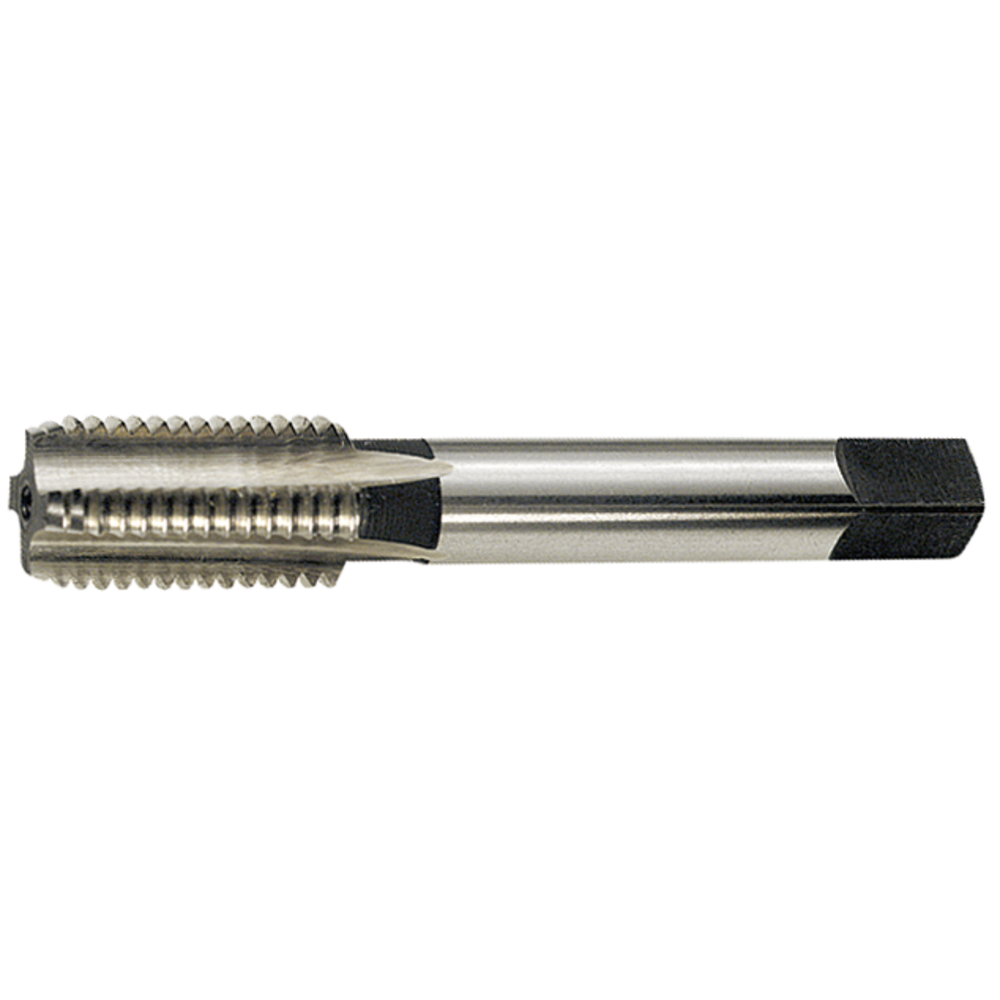

Hand tap HSS DIN2181 set UNF 4-48 blind/through-hole

Hand tap HSS DIN2181 set UNF 4-48 blind/through-hole
Hand tap HSS DIN2181 set UNF 4-48 blind/through-hole Hand tap HSS DIN2181 set UNF 4-48 blind/through-hole
Price
53,20 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

Hand taps
  • UNF (unified national standard fine-pitch thread)
  • 2 pcs set consisting of taper tap and bottom tap
  • Cutting material: HSS
  • For through-hole and blind bore threads

Article no./ATORN no.
1301410001 / 10470612
Packaging unit
1
Catalogue page
KS-0294
Cutting values
SW-0401

Technical characteristics

C 2,7 mm
Coating uncoated
Coolant supply External
Cutting data Cutting angle Information - no
Cutting material HSS
D 2,85 mm
D UNF 4
D1 3,5 mm
Design 2-piece set
DIN 2181
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 1
Eignung Titan/Nickel/Super gesamt 3
fitness hartl total 3
Form/Chamfer D/C
L 40 mm
L1 10 mm
Passend für Gewinde UNF Nr,4-UNF 5/8 Zoll
Pitch 48
Surface Uncoated
Tapping hole Ø 2,4 mm
Thread UNF
Thread angle 60 °
Threaded hole type Clearance/blind hole ≤ 3xD
Tolerance of screw taps 2B
Tolerance of shank diameter h9
Toleranz Schaftvierkant h12
Twist angle 0°
Type UNI MAX 1000 N/mm²

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GG/GTS
cast iron GGG
D 4 in
graphite
plastic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 700 N/mm²

very suitable
suitable
Catalogue page Download
STEP Download
DXF Download
ASSET_MatSafetyDataSheet Download
Cutting values Download
Catalogue page Download
