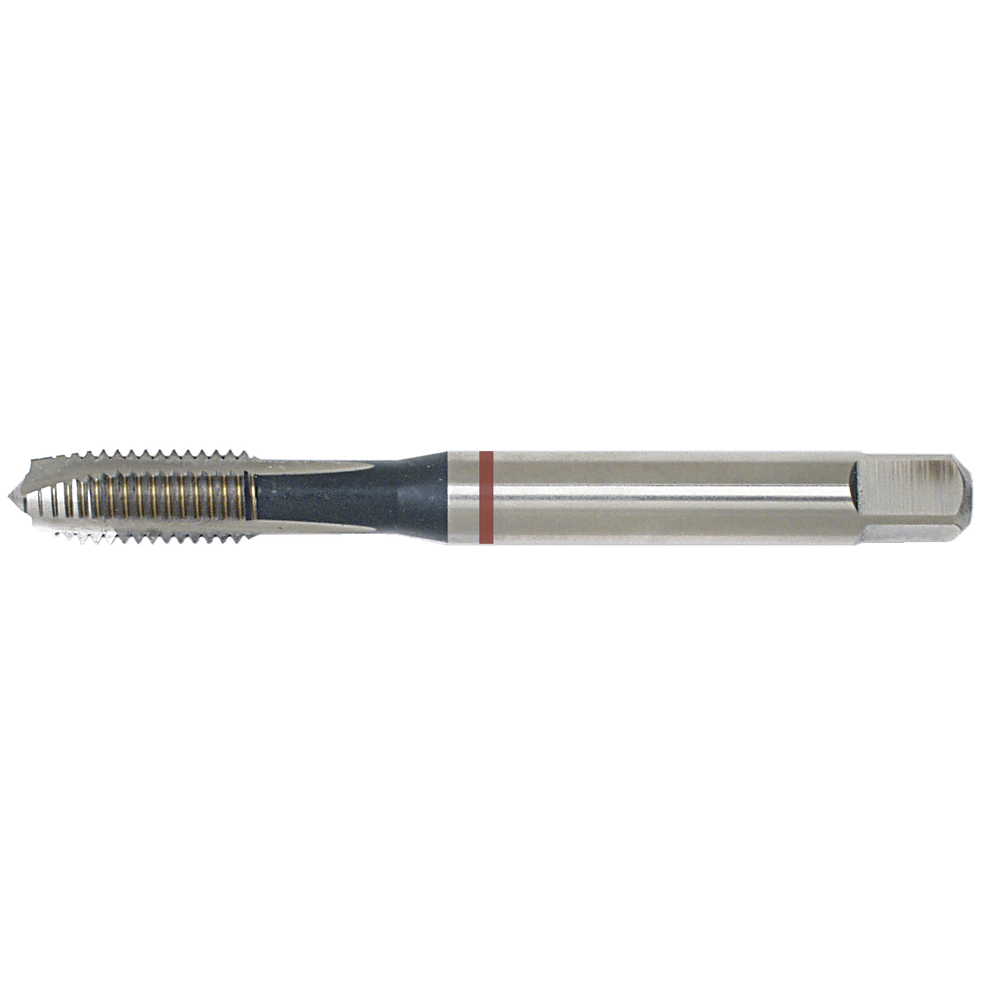

Machine tap HSS-E PM DIN371B, M3 through-hole

Machine tap HSS-E PM DIN371B, M3 through-hole
Machine tap HSS-E PM DIN371B, M3 through-hole Machine tap HSS-E PM DIN371B, M3 through-hole
Price:
36,50 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
For titanium and superalloys

Machine tap
  • Metric ISO 6HX thread
  • Straight-fluted with spiral point, Form B, 3.5 to 5-thread chamfer
  • DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E-PM
  • For through-hole threads
  • The spiral point ensures strong chip removal to the front
  • Possible thread depths 3 x D

For titanium and superalloys

Machine tap
  • Metric ISO 6HX thread
  • Straight-fluted with spiral point, Form B, 3.5 to 5-thread chamfer
  • DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E-PM
  • For through-hole threads
  • The spiral point ensures strong chip removal to the front
  • Possible thread depths 3 x D

Article no./ATORN no.
1341420030 / 11290744
Packaging unit
1
Catalogue page

Technical characteristics

C 2,7 mm
C 2,7 mm
Coating uncoated
Coating uncoated
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
Cutting material HSSE-PM
D M 3 mm
D M 3 mm
D1 3,5 mm
D1 3,5 mm
DIN 371
DIN 371
Form/Chamfer B
Form/Chamfer B
L 56 mm
L 56 mm
L1 10 mm
L1 10 mm
Max. thread depth 3xD
Max. thread depth 3xD
Pitch 0,5 mm
Pitch 0,5 mm
Tapping hole Ø 2,50 mm
Tapping hole Ø 2,50 mm
Thread M
Thread M
Thread angle 60 °
Thread angle 60 °
Threaded hole type Pass-through hole
Threaded hole type Pass-through hole
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)

Usage characteristics

superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys
titanium alloys

very suitable
suitable
