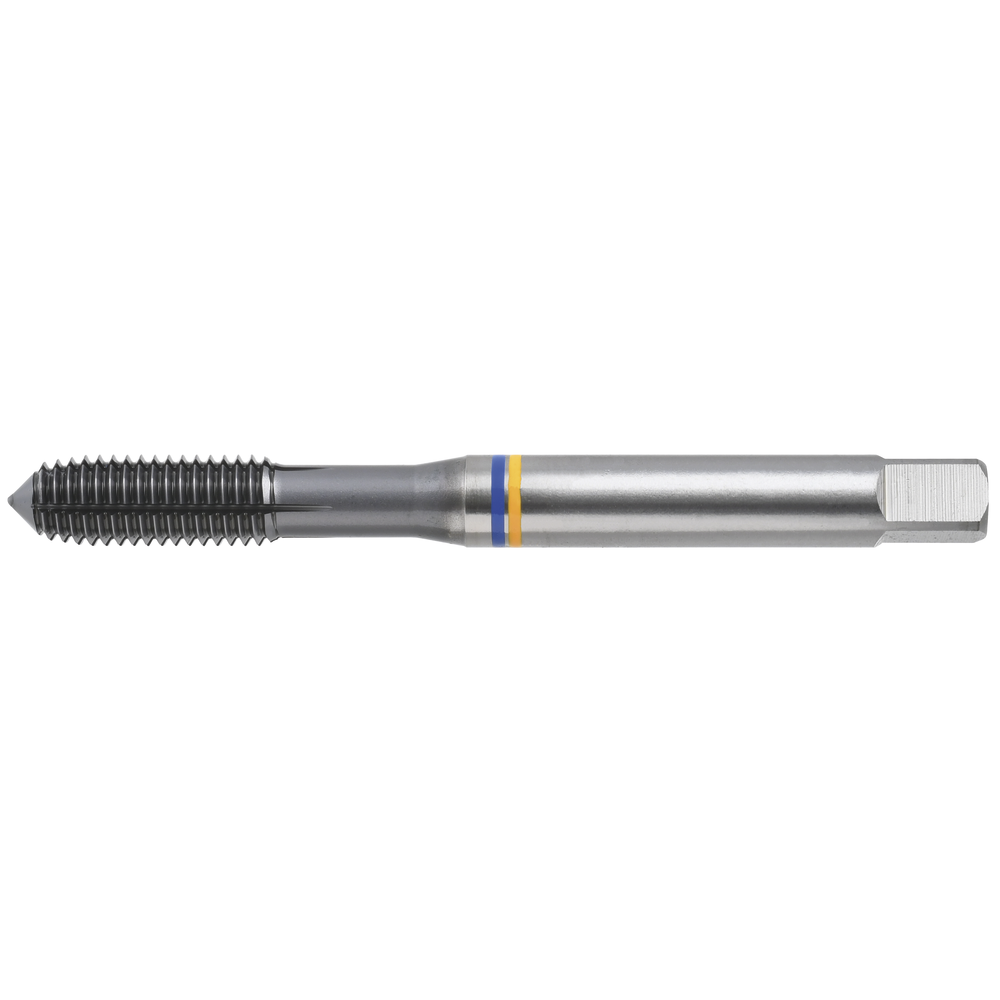

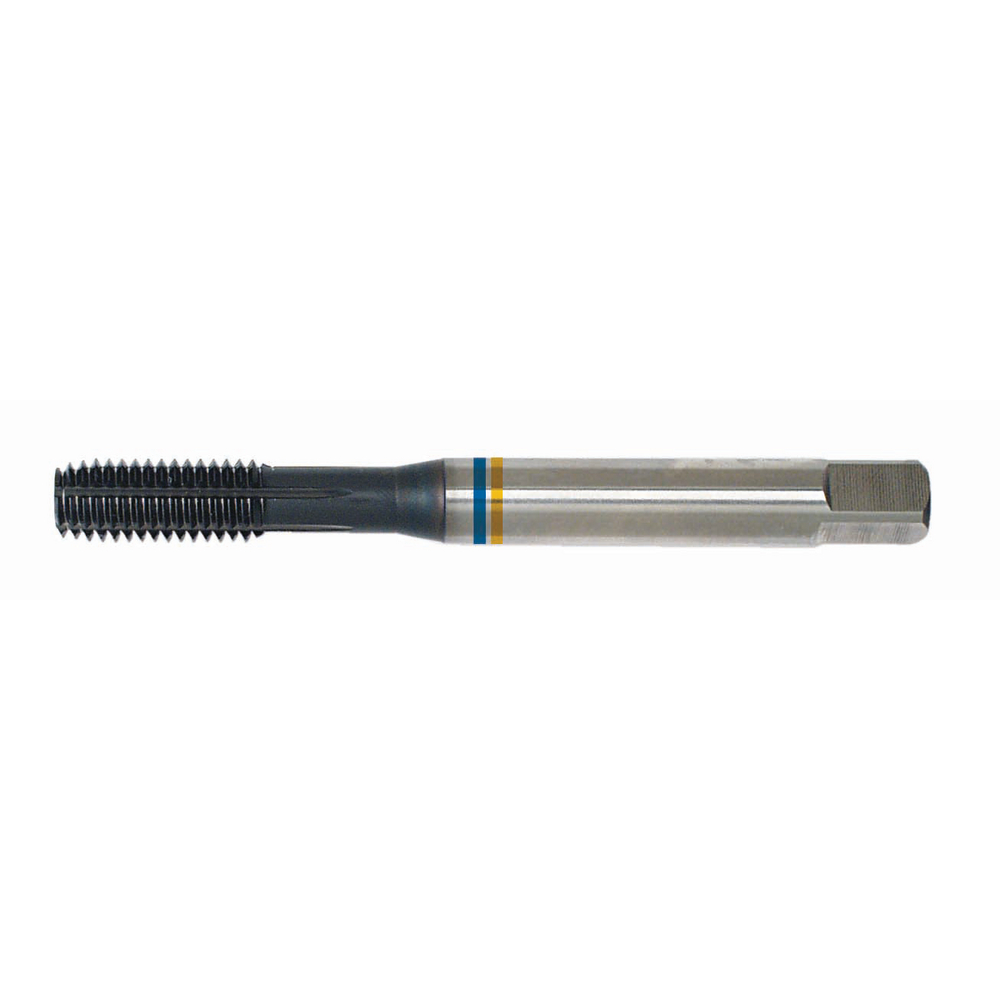

Forming tap HSS-E PM DIN371C M3 6HX blind/through-hole TiCN

Forming tap HSS-E PM DIN371C M3 6HX blind/through-hole TiCN
Forming tap HSS-E PM DIN371C M3 6HX blind/through-hole TiCN Forming tap HSS-E PM DIN371C M3 6HX blind/through-hole TiCN
Price:
44,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Ideal for steel and stainless steel

Machine forming taps
  • ISO 6HX metric thread
  • Type C, 2-3 thread chamfer
  • With oil grooves
  • DIN 371 construction dimensions = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E-PM TiCN
  • For blind-hole and through-hole threads
  • For steel, hardened and tempered steels, and chemically stable steels
  • Possible thread depth 2xD

Ideal for steel and stainless steel

Machine forming taps
  • ISO 6HX metric thread
  • Type C, 2-3 thread chamfer
  • With oil grooves
  • DIN 371 construction dimensions = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E-PM TiCN
  • For blind-hole and through-hole threads
  • For steel, hardened and tempered steels, and chemically stable steels
  • Possible thread depth 2xD

Article no./ATORN no.
1341940305 / 11290771
Packaging unit
1
Catalogue page
KS-0282
Cutting values
SW-0398

Technical characteristics

C 2,7 mm
C 2,7 mm
Coating TiCN
Coating TiCN
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
Cutting material HSSE-PM
D M 3 mm
D M 3 mm
D1 3,5 mm
D1 3,5 mm
DIN 371
DIN 371
Form/Chamfer C
Form/Chamfer C
L 56 mm
L 56 mm
L1 10 mm
L1 10 mm
L2 18 mm
L2 18 mm
Max. thread depth 2xD
Max. thread depth 2xD
Pitch 0,5 mm
Pitch 0,5 mm
Tapping hole Ø 2,75 mm
Tapping hole Ø 2,75 mm
Thread M
Thread M
Thread angle 60 °
Thread angle 60 °
Threaded hole type Clearance/stud hole
Threaded hole type Clearance/stud hole
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)
Twist angle 0°
Twist angle 0°

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
brass short
brass short
cast iron GGG
cast iron GGG
stainless steel austenitic
stainless steel austenitic
stainless steel duplex
stainless steel duplex
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based < 30 HRC

very suitable
suitable
