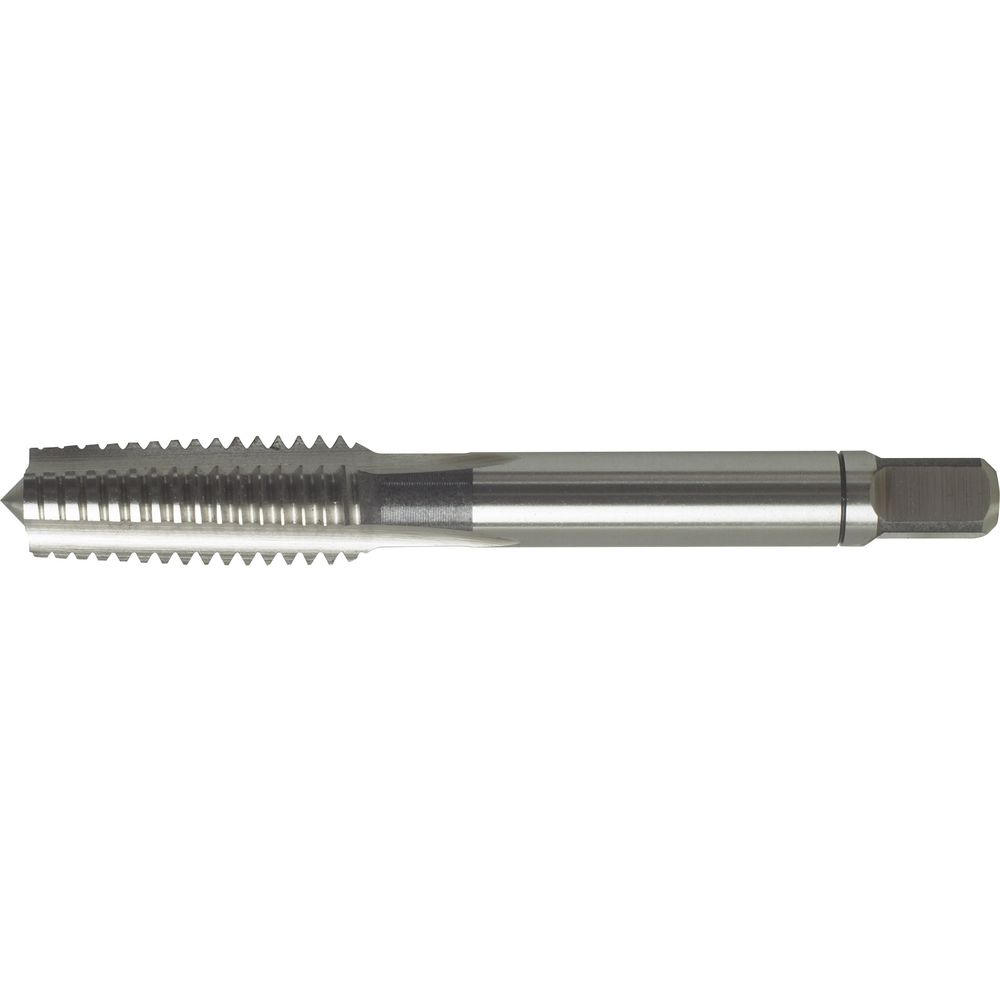

Hand tap HSS-E DIN352 VS M2 blind/through-hole

Hand tap HSS-E DIN352 VS M2 blind/through-hole
Hand tap HSS-E DIN352 VS M2 blind/through-hole Hand tap HSS-E DIN352 VS M2 blind/through-hole
Price:
37,40 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Hand taps
  • ISO metric thread, DIN 13
  • Cutting material: HSS
  • For through-hole and blind bore threads
  • 3 pcs set comprising taper tap, second tap and bottom tap

Hand taps
  • ISO metric thread, DIN 13
  • Cutting material: HSS
  • For through-hole and blind bore threads
  • 3 pcs set comprising taper tap, second tap and bottom tap

Article no./ATORN no.
1301270020 / 10479331
Packaging unit
1
Catalogue page
KS-0289

Technical characteristics

C 2,1 mm
C 2,1 mm
Coating uncoated
Coating uncoated
Coolant supply External
Coolant supply External
Cutting data Cutting angle Information - no
Cutting data Cutting angle Information - no
Cutting material HSSE
Cutting material HSSE
D M 2 mm
D M 2 mm
D1 2,8 mm
D1 2,8 mm
Design Taper tap
Design Taper tap
DIN 352
DIN 352
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 3
Eignung Titan/Nickel/Super gesamt 3
fitness hartl total 3
Form/Chamfer A
Form/Chamfer A
Gewindeart x Nenndurchmesser M2
L 36 mm
L 36 mm
L1 10 mm
L1 10 mm
Nenndurchmesser 2 mm
Passend für Gewinde M2-M20
Pitch 0,4 mm
Pitch 0,4 mm
Surface Uncoated
Surface Uncoated
Tapping hole Ø 1,6 mm
Tapping hole Ø 1,6 mm
Thread M
Thread M
Thread angle 60 °
Thread angle 60 °
Threaded hole type Clearance/blind hole ≤ 3xD
Threaded hole type Clearance/blind hole ≤ 3xD
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)
Tolerance of shank diameter h9
Tolerance of shank diameter h9
Toleranz Schaftvierkant h12
Twist angle 0°
Twist angle 0°
Type VA MAX
Type VA MAX

Usage characteristics

cast iron GG/GTS
cast iron GG/GTS
stainless steel austenitic
stainless steel austenitic
stainless steel duplex
stainless steel duplex
stainless steel ferrit./martens.
stainless steel ferrit./martens.

very suitable
suitable
