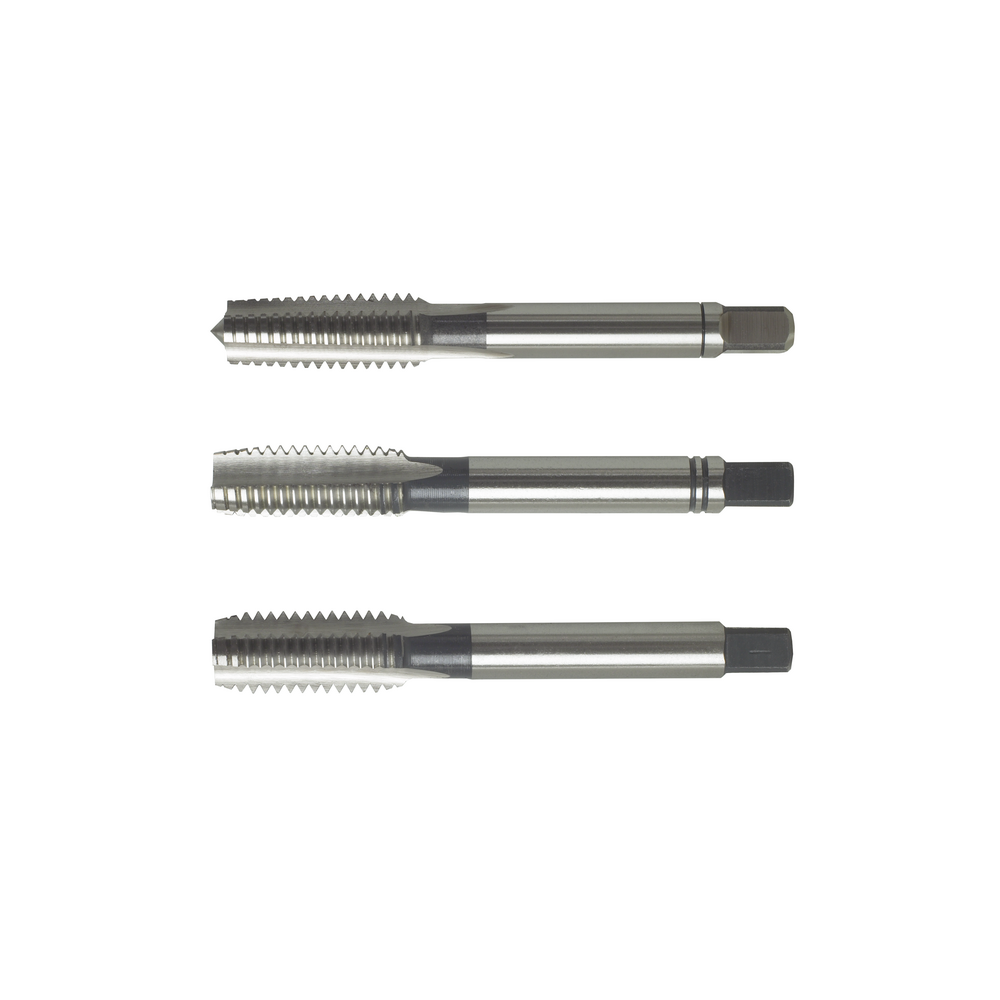

Hand tap HSS DIN352 set M4 blind/through-hole left-hand

Hand tap HSS DIN352 set M4 blind/through-hole left-hand
Hand tap HSS DIN352 set M4 blind/through-hole left-hand Hand tap HSS DIN352 set M4 blind/through-hole left-hand
Price:
127,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Hand tap, left-hand thread
  • ISO left-hand metric thread, DIN 13
  • 3 pcs set consisting of taper tap, second tap and bottom tap
  • Cutting material: HSS
  • For through-hole and blind bore threads

Hand tap, left-hand thread
  • ISO left-hand metric thread, DIN 13
  • 3 pcs set consisting of taper tap, second tap and bottom tap
  • Cutting material: HSS
  • For through-hole and blind bore threads

Article no./ATORN no.
1301340040 / 10470496
Packaging unit
1
Catalogue page
KS-0291

Technical characteristics

C 3,4 mm
C 3,4 mm
Coating uncoated
Coating uncoated
Coolant supply External
Coolant supply External
Cutting data Cutting angle Information - no
Cutting data Cutting angle Information - no
Cutting material HSS
Cutting material HSS
D M 4 - LH mm
D M 4 - LH mm
D1 4,5 mm
D1 4,5 mm
DIN 352
DIN 352
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 1
Eignung Titan/Nickel/Super gesamt 3
fitness hartl total 3
Form/Chamfer A/D/F
Form/Chamfer A/D/F
Gewindeart x Nenndurchmesser M-L4
L 45 mm
L 45 mm
L1 14 mm
L1 14 mm
Nenndurchmesser 4 mm
Passend für Gewinde M4 L-M20 L
Pitch 0,7 mm
Pitch 0,7 mm
Surface Uncoated
Surface Uncoated
Tapping hole Ø 3,3 mm
Tapping hole Ø 3,3 mm
Thread M-L
Thread M-L
Thread angle 60 °
Thread angle 60 °
Threaded hole type Clearance/blind hole ≤ 3xD
Threaded hole type Clearance/blind hole ≤ 3xD
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)
Tolerance of shank diameter h9
Tolerance of shank diameter h9
Toleranz Schaftvierkant h12
Twist angle 0°
Twist angle 0°
Type UNI MAX 1000 N/mm²
Type UNI MAX 1000 N/mm²

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass long
brass long
brass short
brass short
bronze long
bronze long
bronze short
bronze short
cast iron GG/GTS
cast iron GG/GTS
cast iron GGG
cast iron GGG
graphite
graphite
plastic
plastic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
