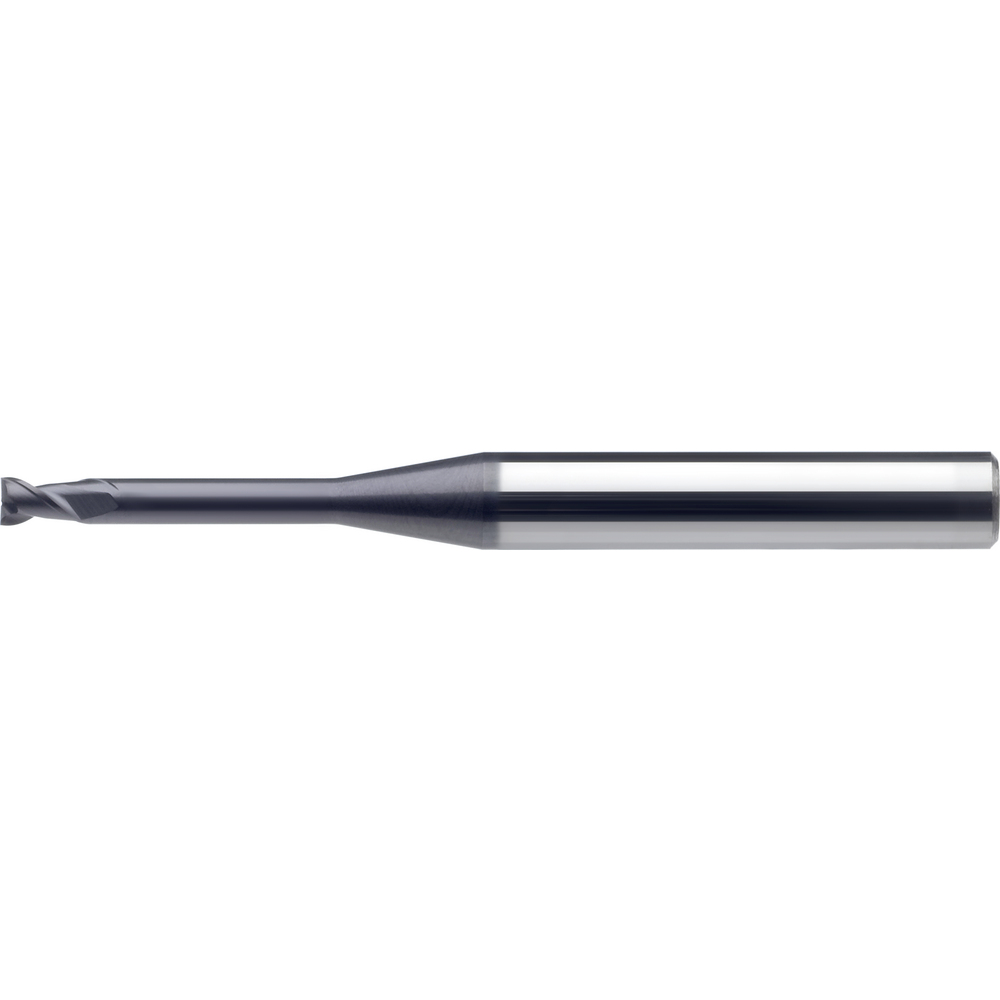

Solid carbide mini-end milling cutter 40° 0,2mm L2=0,5mm, Z=2 RockTec-52

Solid carbide mini-end milling cutter 40° 0,2mm L2=0,5mm, Z=2 RockTec-52
Solid carbide mini-end milling cutter 40° 0,2mm L2=0,5mm, Z=2 RockTec-52 Solid carbide mini-end milling cutter 40° 0,2mm L2=0,5mm, Z=2 RockTec-52
Price:
45,90 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
RockTec 52 mini end milling cutter
  • Long-necked version for machining materials up to 52 HRC
  • Cutting edge tolerance: at Ø 0.1 – 0.7 mm = 0/– 0.012 mm, at Ø 0.8 – 3.0 mm = 0/– 0.020 mm
  • Cutting material: ultra-fine grain solid carbide
  • Rake angle 3°

Article no./ATORN no.
2570090001 / 11860010
Packaging unit
1
Catalogue page
KS-0507
Cutting values
SW-0733

Technical characteristics

Application direction milling Lining, ramping and drilling
Center cutting Yes
Coating AlTiN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 0,2 mm
D1 4 mm
D3 0,16 mm
Durchmesser max. 3 mm
Durchmesser min. 0,2 mm
Durchmesser min./max. 0,2-3 mm
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 3
Eignung Titan/Nickel/Super gesamt 3
Feed for grooving fz steel < 1000 mm² 0,005 mm/tooth
fitness hartl total 2
Form Corner
Freistellungslänge 0,5 mm
fz Stahl 1300 0,001 mm
Geeignet für Werkstoffgruppe H 2
Geeignet für Werkstoffgruppe K 1
Geeignet für Werkstoffgruppe M 2
Geeignet für Werkstoffgruppe N 3
Geeignet für Werkstoffgruppe P 1
Geeignet für Werkstoffgruppe S 3
L 50 mm
L1 0,3 mm
L2 0,5 mm
Overall length Normal
Rake angle 3 °
Surface RockTec 52
Tolerance of cutting edge diameter 0/-0,012
Tolerance of shank diameter h6
Tool holding device HA parallel shank
Twist angle 40°
Type N
Z 2 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
hardened steel ≤ 55 HRC
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
