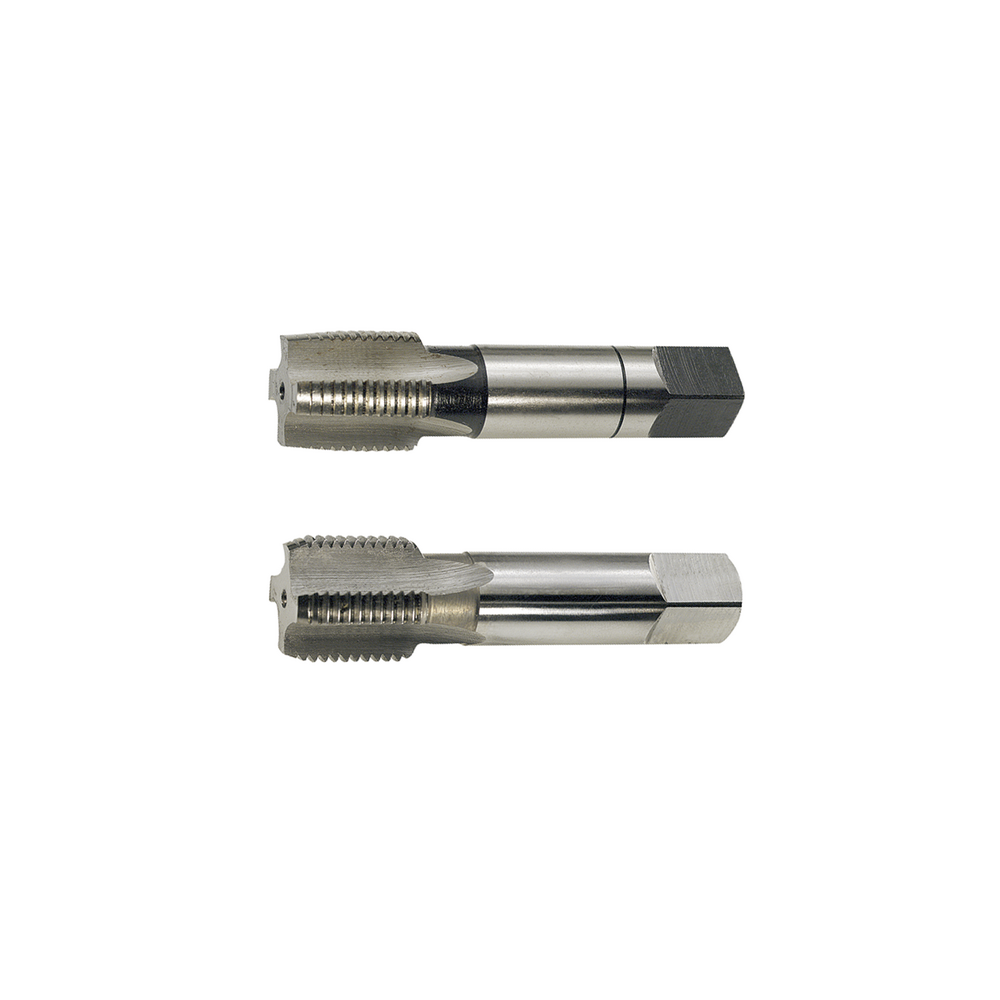

Hand tap HSS DIN5157 set G 1/8" blind/through-hole

Hand tap HSS DIN5157 set G 1/8" blind/through-hole
Hand tap HSS DIN5157 set G 1/8" blind/through-hole Hand tap HSS DIN5157 set G 1/8" blind/through-hole
Price:
37,80 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Hand taps
  • Whitworth pipe thread, DIN 5157
  • 2 pcs set consisting of taper tap and bottom tap
  • Cutting material: HSS
  • For through-hole and blind bore threads
  • Individual taps available on request
  • Note: For straight pipe threads, DIN-ISO 228/1

Hand taps
  • Whitworth pipe thread, DIN 5157
  • 2 pcs set consisting of taper tap and bottom tap
  • Cutting material: HSS
  • For through-hole and blind bore threads
  • Individual taps available on request
  • Note: For straight pipe threads, DIN-ISO 228/1

Article no./ATORN no.
1301430001 / 10470634
Packaging unit
1
Catalogue page
KS-0292

Technical characteristics

C 5,5 mm
C 5,5 mm
Coating uncoated
Coating uncoated
Coolant supply External
Coolant supply External
Cutting data Cutting angle Information - no
Cutting data Cutting angle Information - no
Cutting material HSS
Cutting material HSS
D 1/8 in
D G 1/8 in
D G 1/8"
D 1/8 in
D G 1/8 in
D G 1/8"
D1 7 mm
D1 7 mm
DIN 5157
DIN 5157
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 1
Eignung Titan/Nickel/Super gesamt 3
fitness hartl total 3
Form/Chamfer D/C
Form/Chamfer D/C
L 63 mm
L 63 mm
L1 20 mm
L1 20 mm
Nominal diameter in inches 1/8 in
Passend für Gewinde G 1/8-G 3/4 Zoll
Pitch 28
Pitch 28
Surface Uncoated
Surface Uncoated
Tapping hole Ø 8,8 mm
Tapping hole Ø 8,8 mm
Thread G
Thread G
Thread angle 55 °
Thread angle 55 °
Thread type x nominal diameter in inches G 1/8 in
Threaded hole type Clearance/blind hole ≤ 3xD
Threaded hole type Clearance/blind hole ≤ 3xD
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)
Tolerance of shank diameter h9
Tolerance of shank diameter h9
Toleranz Schaftvierkant h12
Twist angle 0°
Twist angle 0°
Type UNI MAX 1000 N/mm²
Type UNI MAX 1000 N/mm²

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass long
brass long
brass short
brass short
bronze long
bronze long
bronze short
bronze short
cast iron GG/GTS
cast iron GG/GTS
cast iron GGG
cast iron GGG
graphite
graphite
plastic
plastic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
