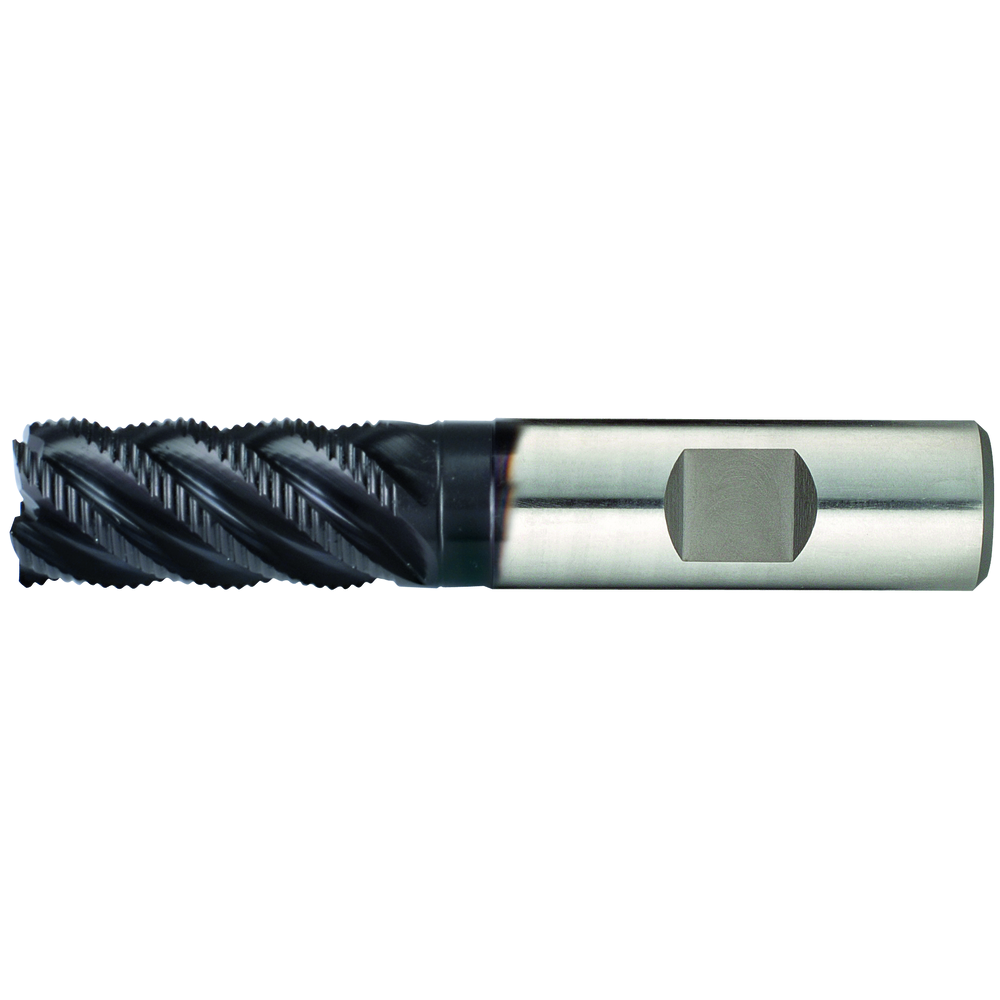

Roughing cutter HSS-E PM DIN844HR, 4mm Z=3 TiAlN

Price
38,80 €
prices excl. vat plus shipping costs

Stock status
in stock

Ordered by 18:00 - delivered tomorrow.

Roughing cutter
  • Eccentric relief grinding

Article no./ATORN no.
2262470040
Packaging unit
1
Catalogue page
Cutting values

Technical characteristics

Application direction milling Lining, ramping and drilling
Coating TiAlN
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
D 4,0 mm
D1 6 mm
D3 4,0 mm
DIN 844
Feed fz steel < 1000 N/mm² 0,008 mm/tooth
Feed fz steel < 1000 N/mm² 0,014 mm/tooth
L 55 mm
L1 11 mm
L2 19 mm
Tolerance of shank diameter h6 mm
Tool holding device HB parallel shank
Twist angle 45°
Type HR
Z 3 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
hardened steel ≤ 55 HRC
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
