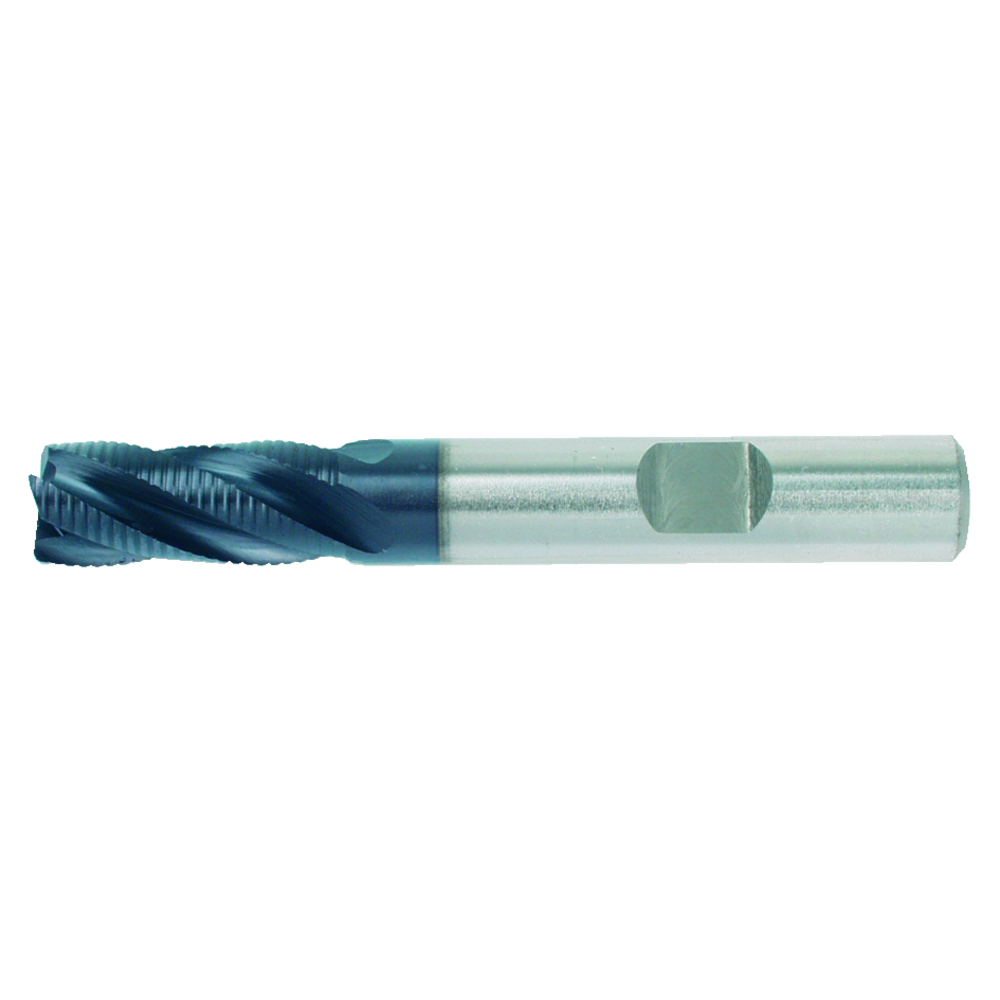

Roughing cutter HSS-E PM DIN844HR 9mm Z=5 TiAlN

Price
58,50 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Extremely easy-action and low-noise machining!

Silent Cut roughing cutter
  • Innovative cutting edge geometry

Article no./ATORN no.
2261180090
Packaging unit
1
Catalogue page

Technical characteristics

Coating TiAlN
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
D js12 9,0 mm
D1 10 mm
Feed fz steel < 1000 N/mm² 0,008 mm/tooth
Feed fz steel < 1000 N/mm² 0,014 mm/tooth
Jaw quantity 5 cutting edges
L 69 mm
L1 19 mm
Milling application Side Ramp Plunge
Shank Straight with driving plane, DIN 1835 B
Spiral angle 30° RH helix angle
Standard constructional dimensions DIN DIN 844 HR
Type profile Type HR
Z 5

Usage characteristics

cast iron GG/GTS
cast iron GGG
hardened steel ≤ 55 HRC
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
